Rockwell Automation Publication 450L-UM001D-EN-P - December 2019 141
Connected Components Workbench Software Chapter 9
The selection for IO_1 shows seven mandatory inputs. Three of the mandatory
inputs have white boxes. At least two of the three mandatory inputs must be
assigned to the connection plug-in. The third mandatory input can be assigned
to the connection or cascading plug-in. The four mandatory muting sensors are
disabled as these sensors can only be assigned on the cascading plug-in.
With eight potential I/O and seven mandatory inputs, one of the I/O can be
used for the optional inputs or outputs.

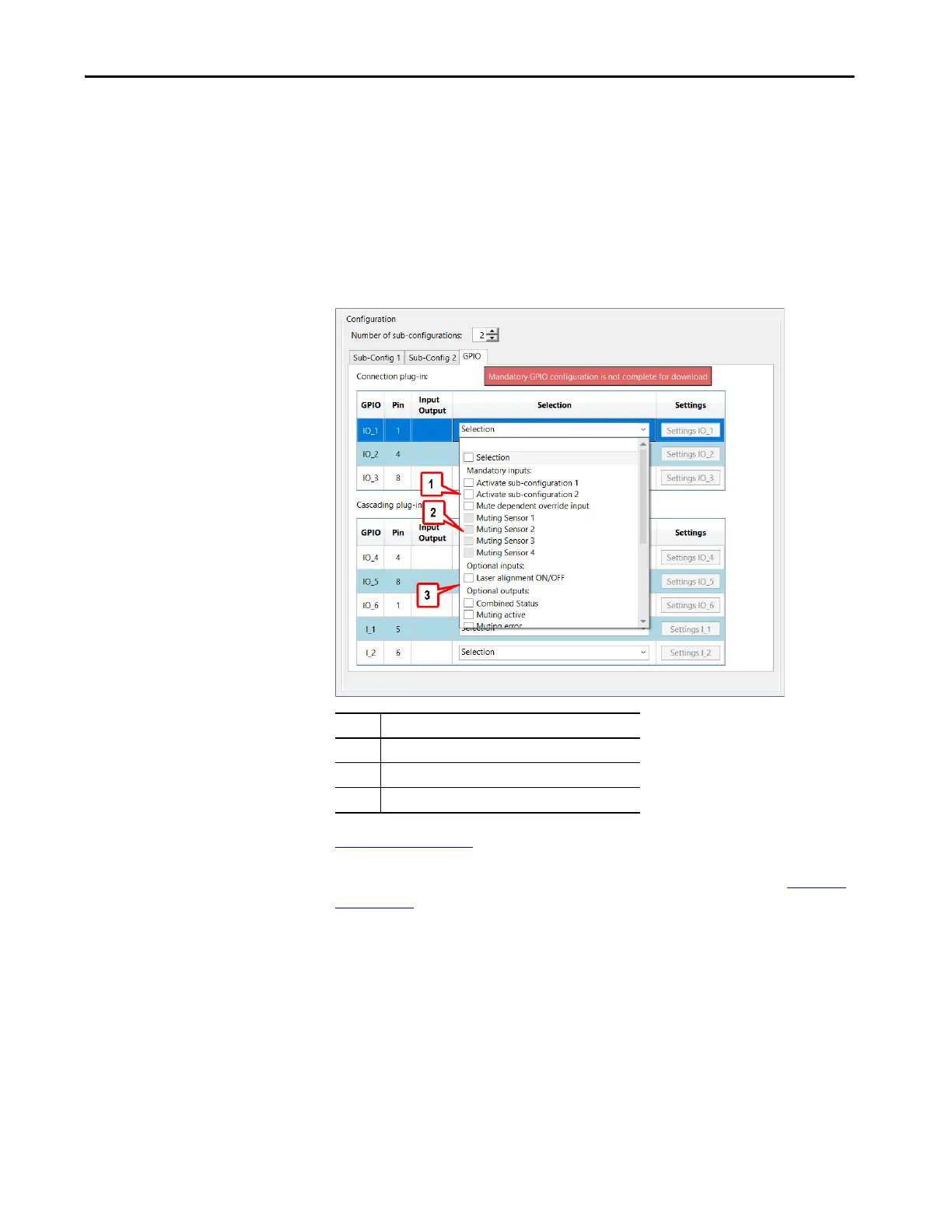

Figure 101 - GPIO Selection Settings
Table 57 on page 142 lists the possible selections and their descriptions. The
possible selection choices are dependent on the hardware and automatically
determined by the Connected Components Workbench software. See Table 56
on page 139 for detailed descriptions of the selections.
Item Description
1 Mandatory inputs
2 Mandatory muting sensors
3 Optional inputs or outputs
