Rockwell Automation Publication 450L-UM001D-EN-P - December 2019 147
Connected Components Workbench Software Chapter 9
Blanking Example – In Figure 105 on page 147, lenses 1 and 2 are fixed blanking.
Beams 3…14 are floating blanking, with beam 10 blocked. Beams 15…18 have no
blanking. Beams 19…31 have reduced resolution and no beams are currently
blocked. Finally, beam 32 has no blanking.

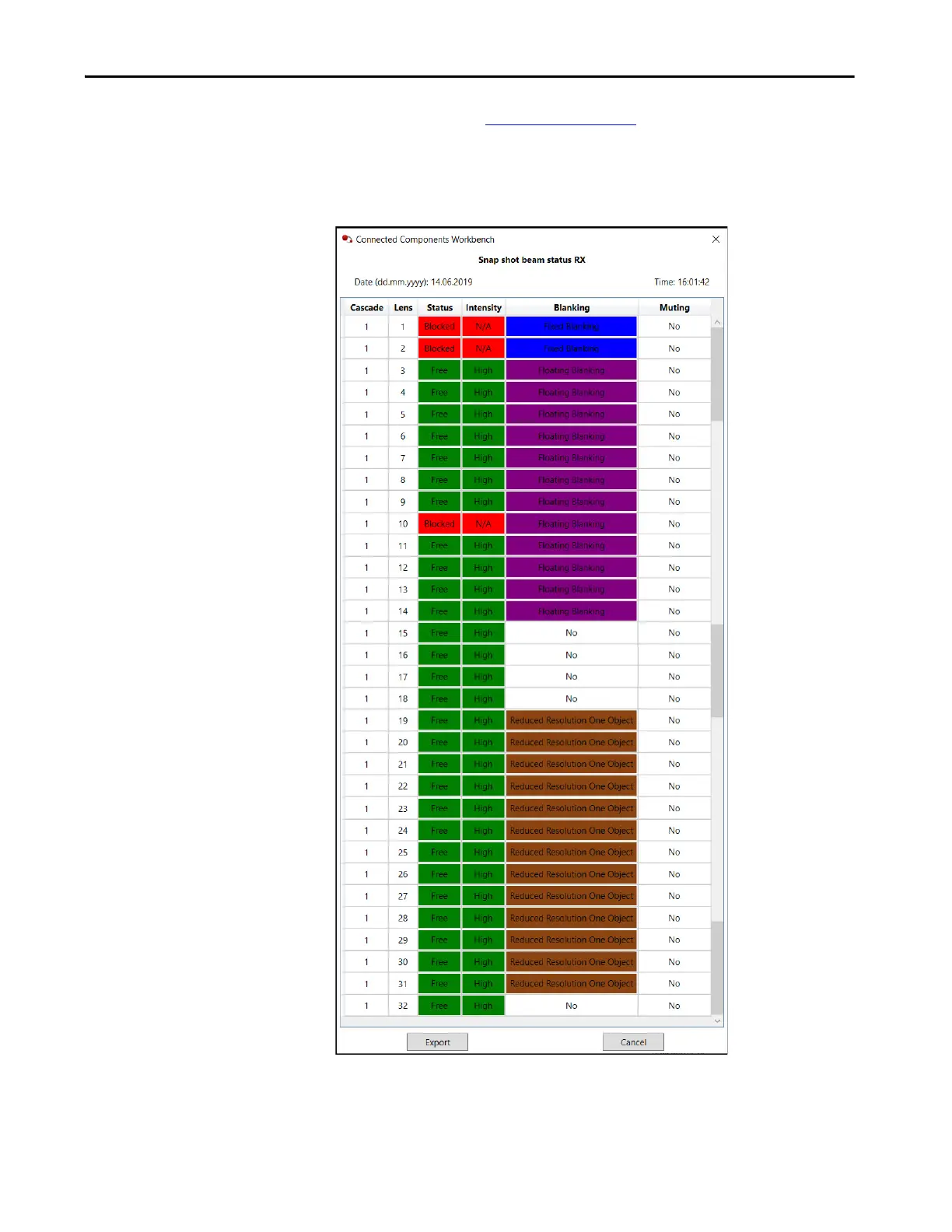

Figure 105 - Beams Status –Blanking Example
