Operation Chapter 3

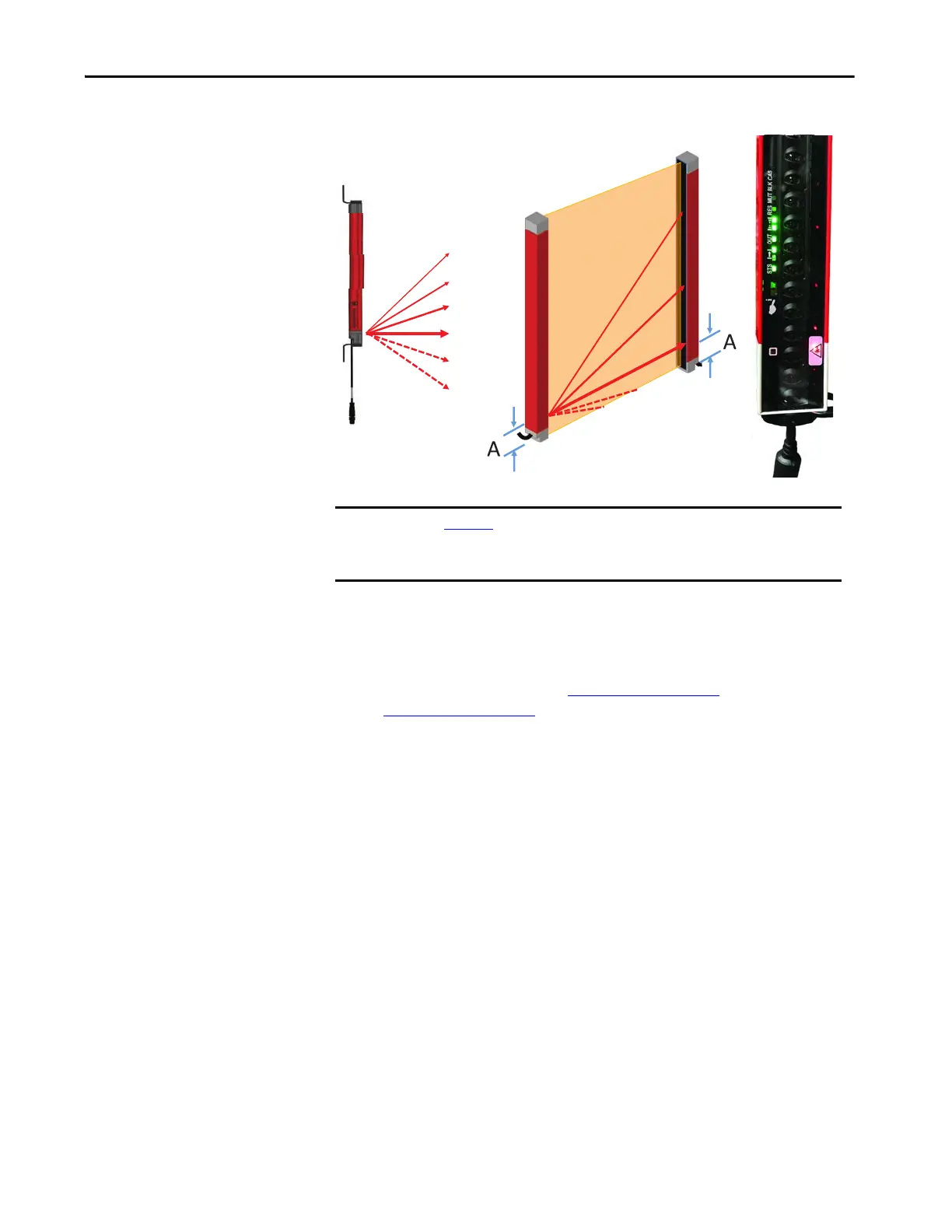

Figure 10 - Principal Function of the Integrated Laser Alignment System
In a cascading system, each integrated laser system works independently and can
be switched on or off individually.
The 450L-B sticks have no integrated laser alignment system. For those sticks, an
optional external alignment aid (see Figure 184 on page 202
) with a mounting
clamp (Figure 185 on page 202
) is available.
IMPORTANT Figure 10
indicates additional visible laser beams (dotted) to the connection
end of the stick. Such beams do not have to be considered for the alignment
procedure.
