Rockwell Automation Publication 2711R-UM001I-EN-E - February 2023 121

Appendix A Update Firmware

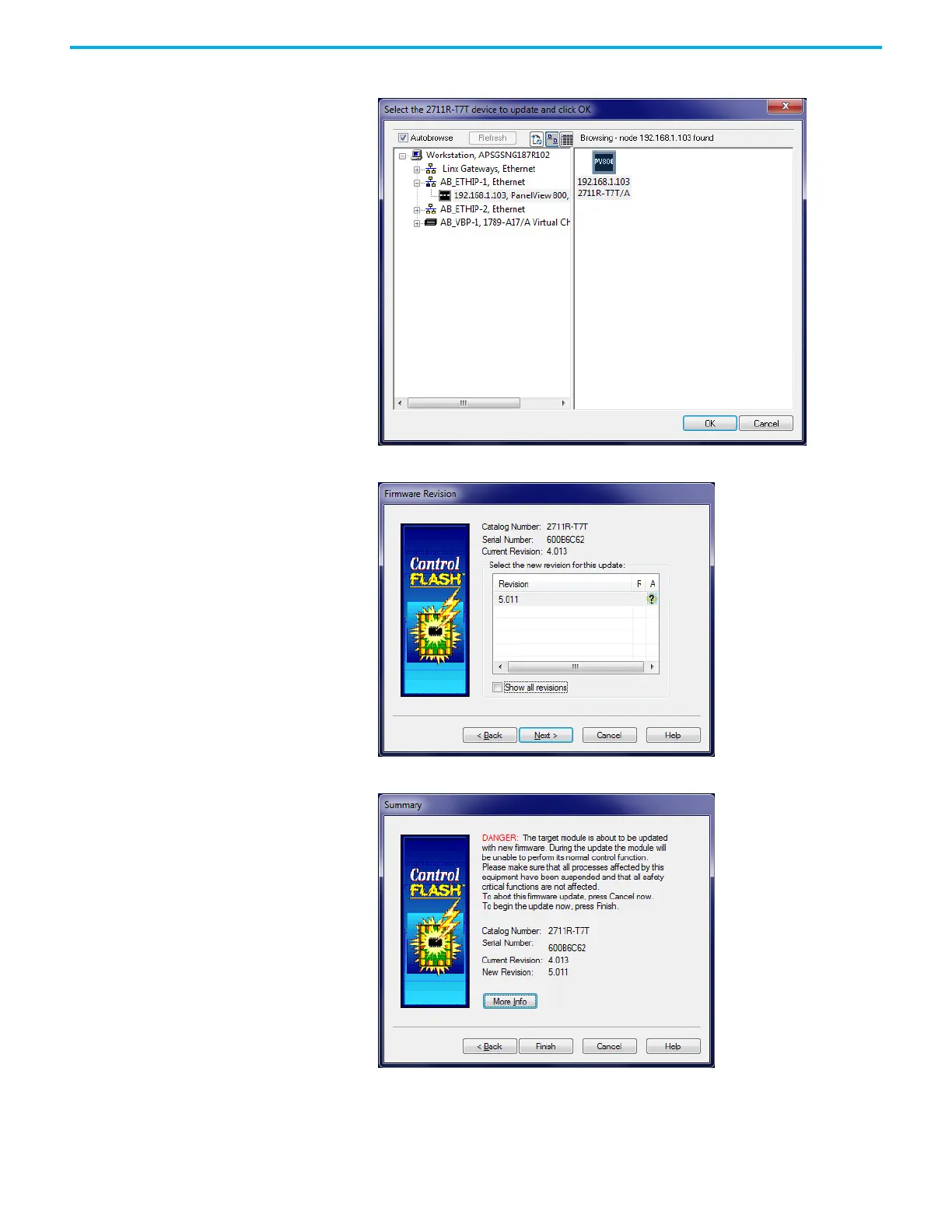

5. Select the terminal in the connection browser window and click OK.

6. Select the firmware revision to update and click Next.

7. Verify your selections and click Finish.
