S3F84B8_UM_REV 1.00 5 INTERRUPT STRUCTURE
5-6
5.1.7 INTERRUPT PROCESSING CONTROL POINTS
Interrupt processing can be controlled in two ways: globally or by specific interrupt level and source. The system-
level control points in the interrupt structure are:
 Global interrupt enable and disable (by EI and DI instructions or by direct manipulation of SYM.0)
 Interrupt level enable/disable settings (IMR register)
 Interrupt level priority settings (IPR register)
 Interrupt source enable/disable settings in the corresponding peripheral control registers
NOTE: When writing an application program that handles interrupt processing, make sure to include the necessary register
file address (register pointer) information.
Interrupt Request Register
(Read-only)
IRQ0-IRQ7,
Interrupts
Interrupt Mask
Register
Polling
Cycle
Interrupt Priority
Register
Global Interrupt Control (EI,
DI or SYM.0 manipulation)
S
R
Q
nRESET
EI
Vector
Interrupt
Cycle

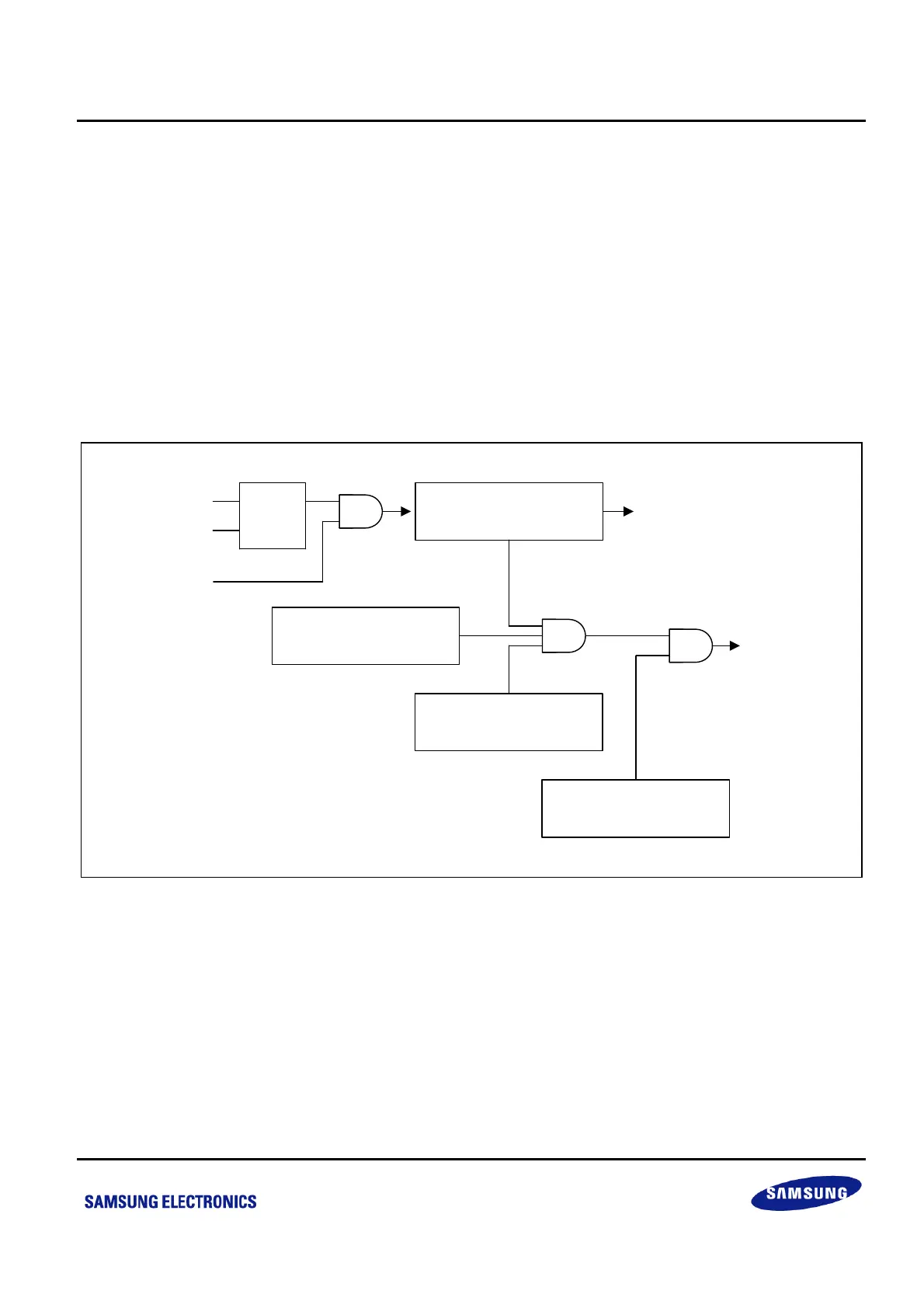

Figure 5-4 Interrupt Function Diagram
