S3F84B8_UM_REV 1.00 1 OVERVIEW OF S3F84B8 MICROCONTROLLER

1-6

1.1.4 PIN ASSIGNMENTS

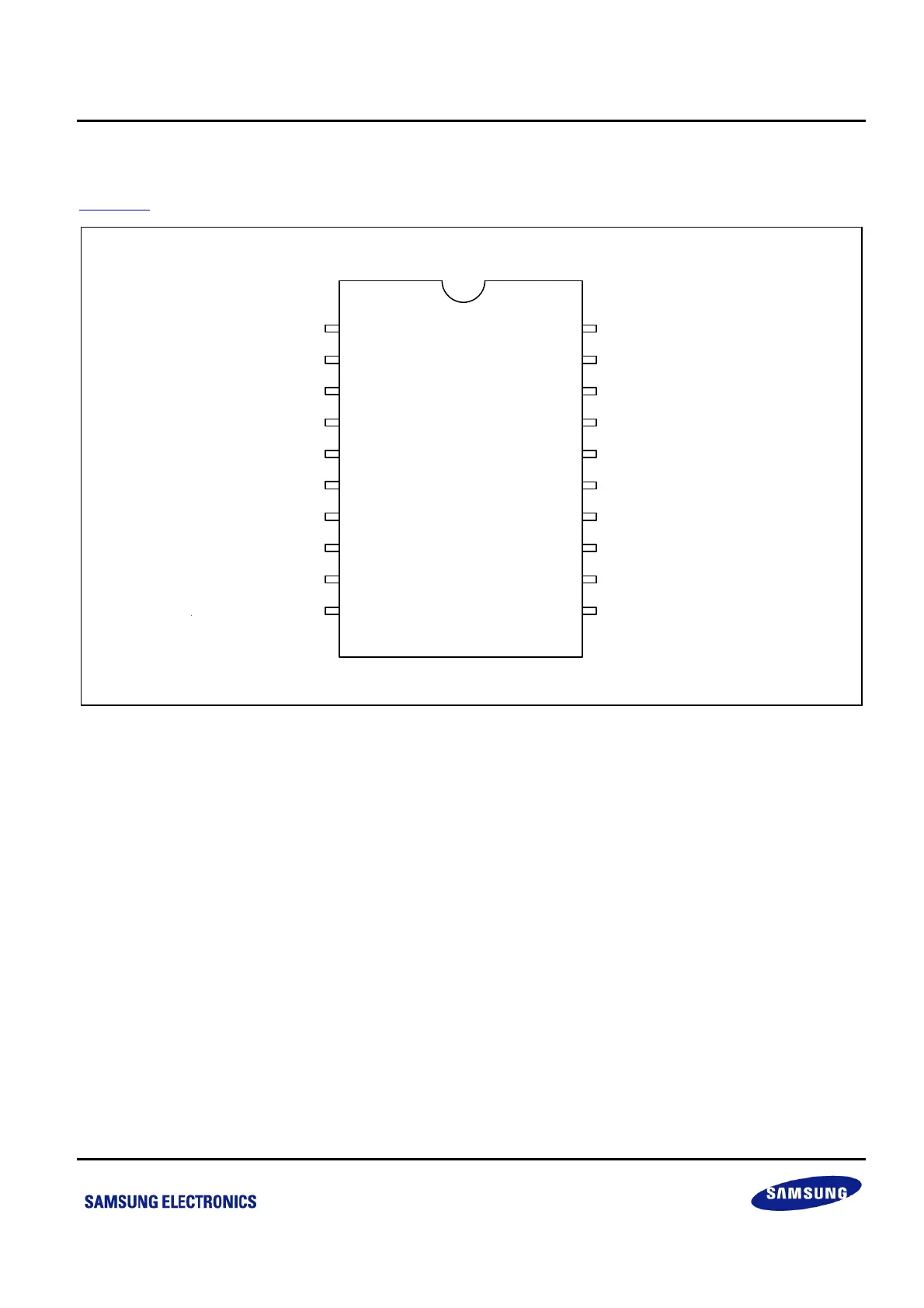

Figure 1-2

shows the pin assignments (20-DIP, 20-SOP) in S3F84B8.

S3F84B8

20-DIP/

20-SOP

P2.7/ADC7/(SCL)

P2.6/ADC6/(SDA)

P2.5/ADC5/CMP3_N

P2.4/ADC4/CMP2_N

P2.3/ADC3(OPA_O)

P2.2/ADC2/OPA_N

P2.1/ADC1/OPA_P

P2.0/ADC0/TDOUT

P1.2/CMP1_N

INT0/XIN/P0.0

INT1/X

OUT/P0.1

PP/nRESET/P0.2

BUZ/INT2/P0.3

PWM/INT3/P0.4

INT4/P0.5

TAOUT/INT5/P0.6

ACK/CMP0_P/P1.0

/CMP0_N/P1.1

Figure 1-2 S3F84B8 Pin Assignment (20-DIP, 20-SOP)
