22.3 TB84B8 TARGET BOARD

The TB84B8 target board is used for S3F84B8 microcontrollers. It is operated as a target CPU with emulator

(OPENIce I-500/2000 or SK-1200).

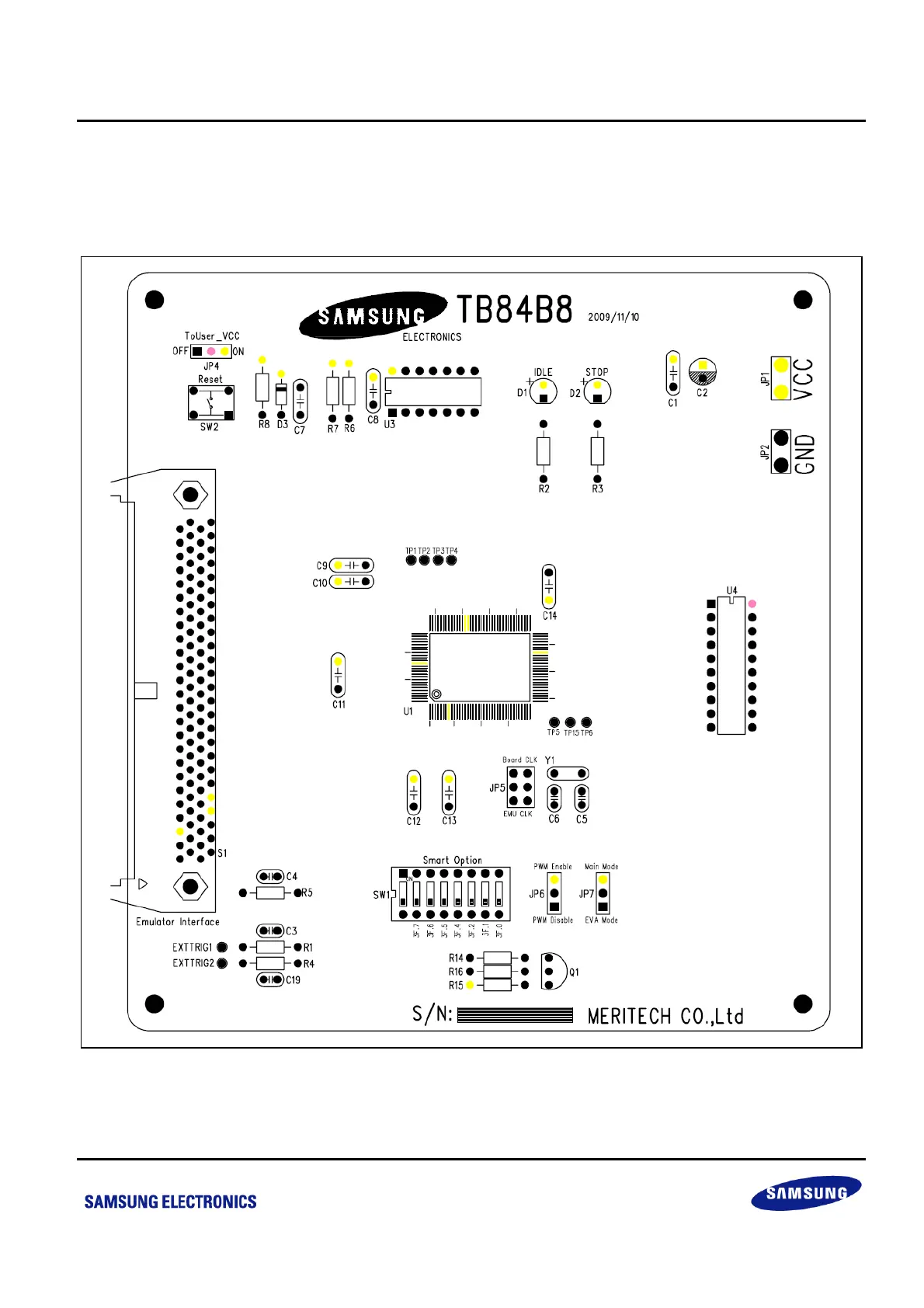

Figure 22-2 TB84B8 Target Board Configuration

NOTE: TB84B8 should be supplied with 5V normally. Thus, the power supply from Emulator should be set to 5V for the target

board operation.
