S3F84B8_UM_REV 1.00 1 OVERVIEW OF S3F84B8 MICROCONTROLLER

1-5

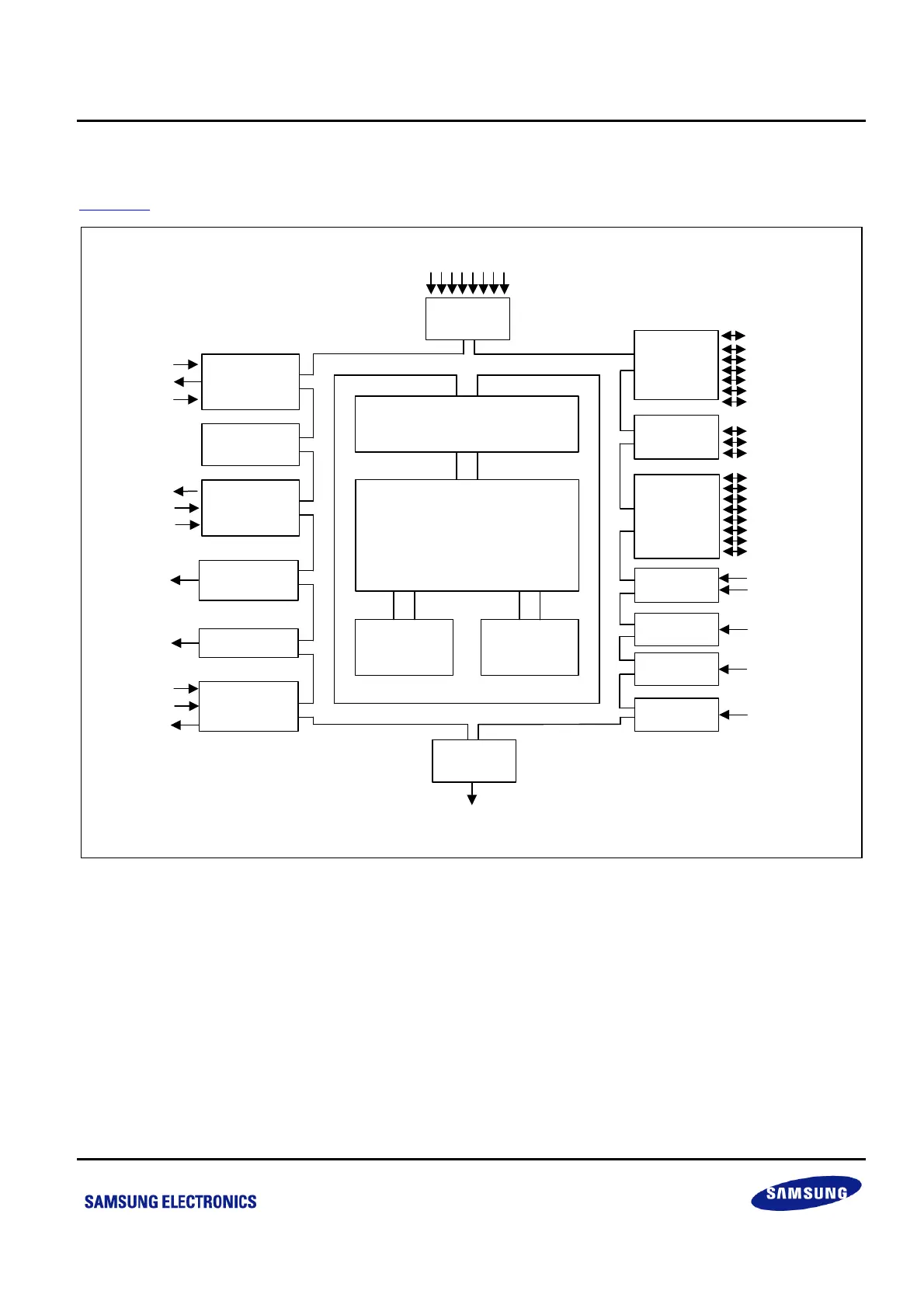

1.1.3 BLOCK DIAGRAM OF S3F84B8

Figure 1-1

shows the block diagram of S3F84B8.

I/ O Port and Interrupt Control

SAM8 RC CPU

8- Kbyte

ROM

272 - Byte

RAM

OSC

nRESET

8-Bit

Basic Timer

8-Bit

Timer

/ Counter A

A/D

Port 0

P0.0-0.6

(INT0-INT5)

P2.0-2.7

P1.0-1.2

OUT

P0.2/

nRESET

TAOUT

TACK

( ADC0-7)

Port 2

Port 1

BUZ

TACAP

CMP3

CMP0

CMP1

CMP2

8-Bit Timer

C/D

BUZ

TDOUT

OPAMP

PWM

CMP0_N

PWM

CMP0_P

CMP1_N

CMP2_N

CMP3_N

OA_O

OA_P

OA_N

Figure 1-1 S3F84B8 Block Diagram
