S3F84B8_UM_REV 1.00 2 ADDRESS SPACES

2-13

RP1

RP0

Pointers

00H

All

Addressing

Modes

Page 0

Indirect Register,

Indexed

Addressing

Modes

Page 0

Can be Pointed by Register Pointer

FFH

E0H

BFH

Control

Registers

System

Registers

Special-Purpose Registers

D0H

C0H

Bank 1 Bank 0

NOTE: In the S3F84B8 microcontroller,

page 0-1 are implemented.

Each register pointer (RP) can independently point

to one of the 24 8-byte "slices" of the register file

(other than set 2). After a reset, RP0 points to

locations C0H-C7H and RP1 to locations C8H-CFH

(that is, to the common working register area).

FFH

C0H

Set 2

Prime

Registers

CFH

General-Purpose Register

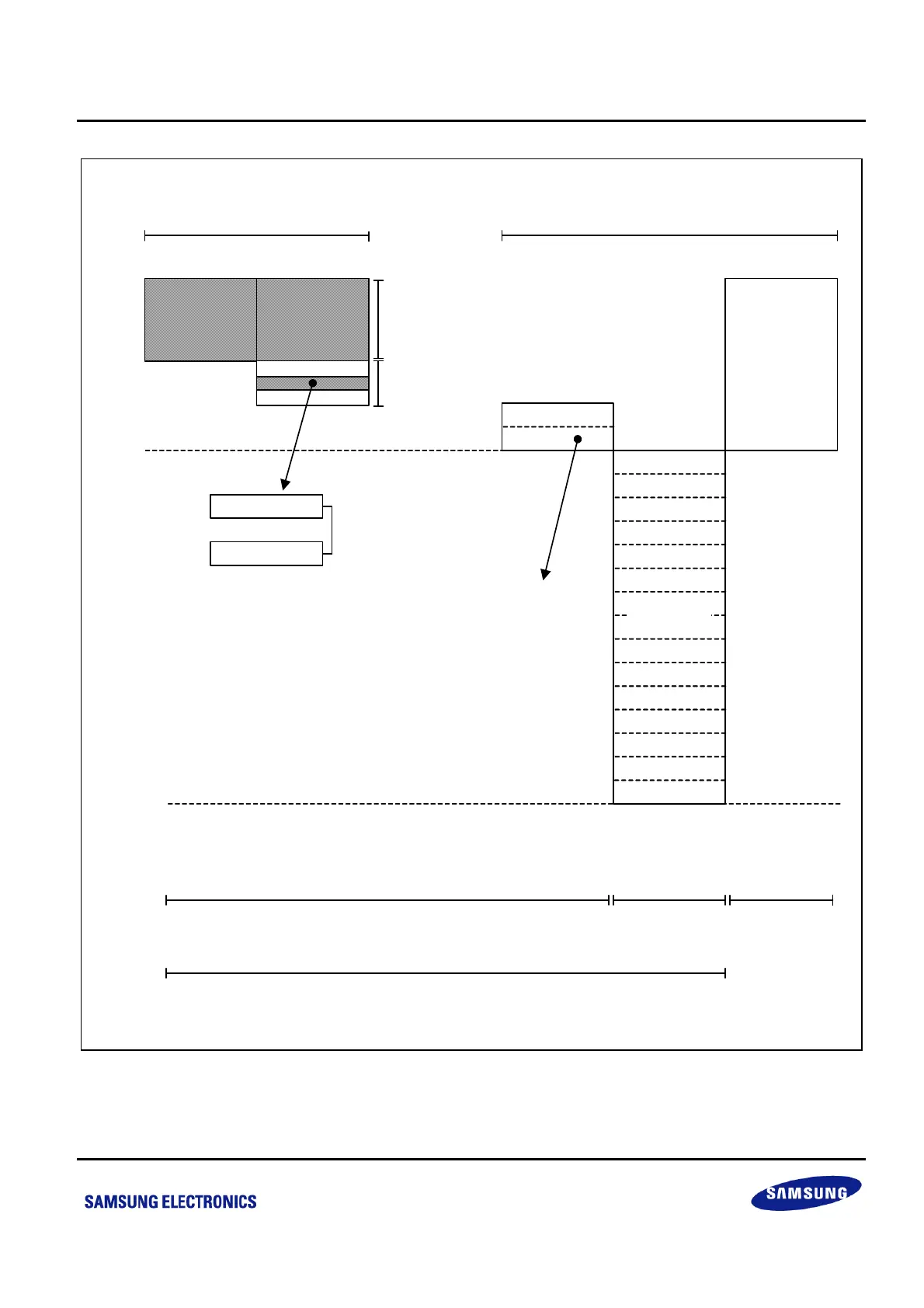

Figure 2-10 Register File Addressing
