SATO HR2 Series - Base Reference Point

Section 8: Appendix
Page 8-4
HR2 Series Operator Manual

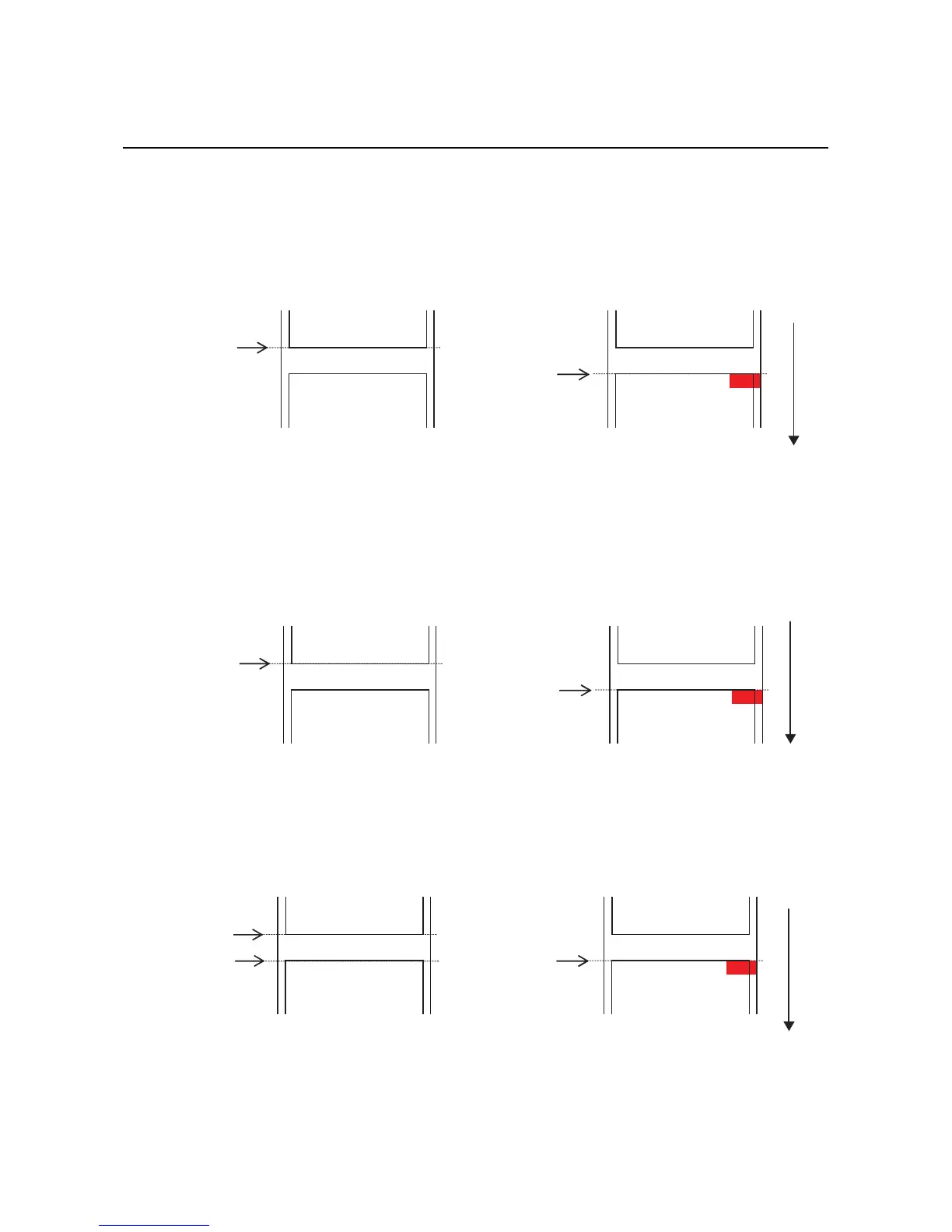

8.3 BASE REFERENCE POINT
The base reference point is the point at which one determines the print and cut positions.
The base reference position differs, depending on the print mode or the label pitch sensor to be used.
8.3.1 Continuous Mode
The base position for printing in continuous mode.
.
8.3.2 Tear-off Mode
The base position for printing and manual cutting in Tear-off mode.
8.3.3 Dispenser Mode
The base position for printing and dispensing in Dispenser mode.
Feed direction
Base position
for printing
I-Mark
GAP
Base position
for printing

Base position
for tear-off/printing
Base position
for tear-off/printing
GAP
I-Mark
Feed direction
Base position
for printing
Base position
for dispensing
Base position
for dispensing/
printing
GAP
I-Mark
Feed direction
