8.5 PAPER END
8.5.1 Paper End Detection during Paper Feed
The Paper end switch detects “No paper” state and notifies paper end error after feeding 15mm.

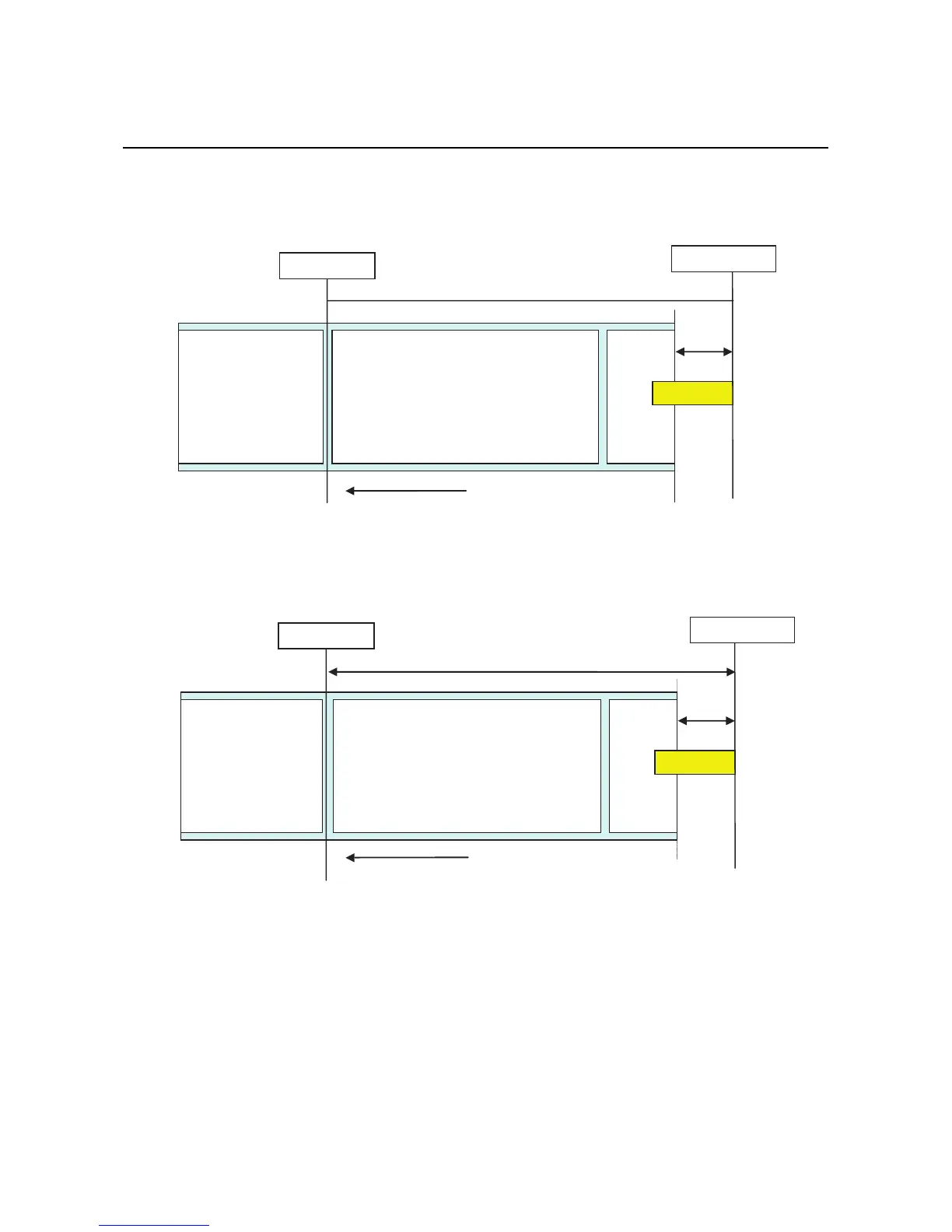

8.5.2 Paper end detection in print motion
When the Label End is less than 15mm (0.6") from the head position to the paper end sensor.
(2)(1)
15mm
(
0.6"
)
Print head
Label sensor
75.88mm (2.9")
Feed direction
(2)(1)
15mm
(0.6")
Print head
Label sensor
75.88mm
(
2.9"
)
Feed direction
