Demand Metering

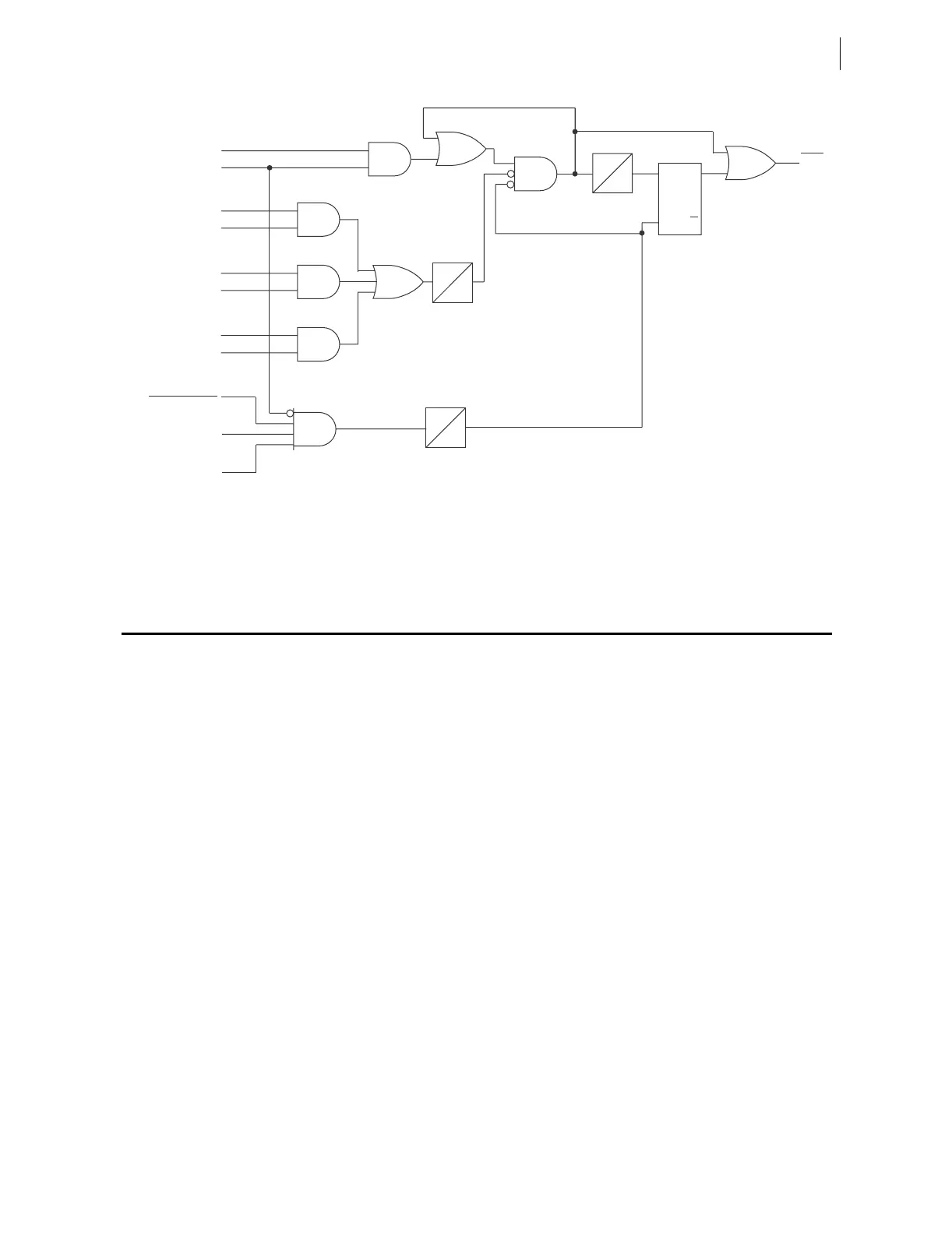

Figure 4.40 Loss-of-Potential (LOP) Logic
Demand Metering
The SEL-787 provides demand and peak demand metering, selectable
between thermal and rolling demand types, for the following values:
Either Winding 1 or Winding 2 currents:
➤ IA, IB, IC, phase currents (A primary)
➤ IG Residual ground current
(A primary; IG = 3I0 = IA + IB + IC)
➤ 3I2 Negative-sequence current (A primary)
Table 4.23 shows the demand metering settings. Also refer to Section 5:
Metering and Monitoring and Section 7: Communications for other related
information for the demand meter.
60
S
R
Q
Q
0
0
60
1
0
LOP
| V1 | > 5 V
Δ| V1 | > 20%
Δ ∠ I1 > 10˚
| I1 |> 0.1 • INOM
Δ ∠ I2 > 10˚
| I2 | > 0.1 • INOM
Δ ∠ I0 > 10˚
| I0 | > 0.1 • INOM
| V2 | < 5 V
| V0 | < 5 V
| V1 | >
0.75 • VNOM*1000
√3*PTR
(RESET has priority)
Note: INOM is 1 A or 5 A depending on the part number and VIWDG.
INOM is the phase secondary input rating. VNOM and VIWDG are relay settings.
Timer PU and DO times
are in cycles.
