2.18

SEL-787 Relay Instruction Manual Date Code 20081022

Installation

AC/DC Control Connection Diagrams

Voltage Connections

With the voltage inputs option, the AC voltages may be directly connected,

wye-wye VT connected, open-delta VT connected, or a single-phase VT can

be used. Figure 2.16 and Figure 2.17 show the methods of connecting single-

phase and three-phase voltages.

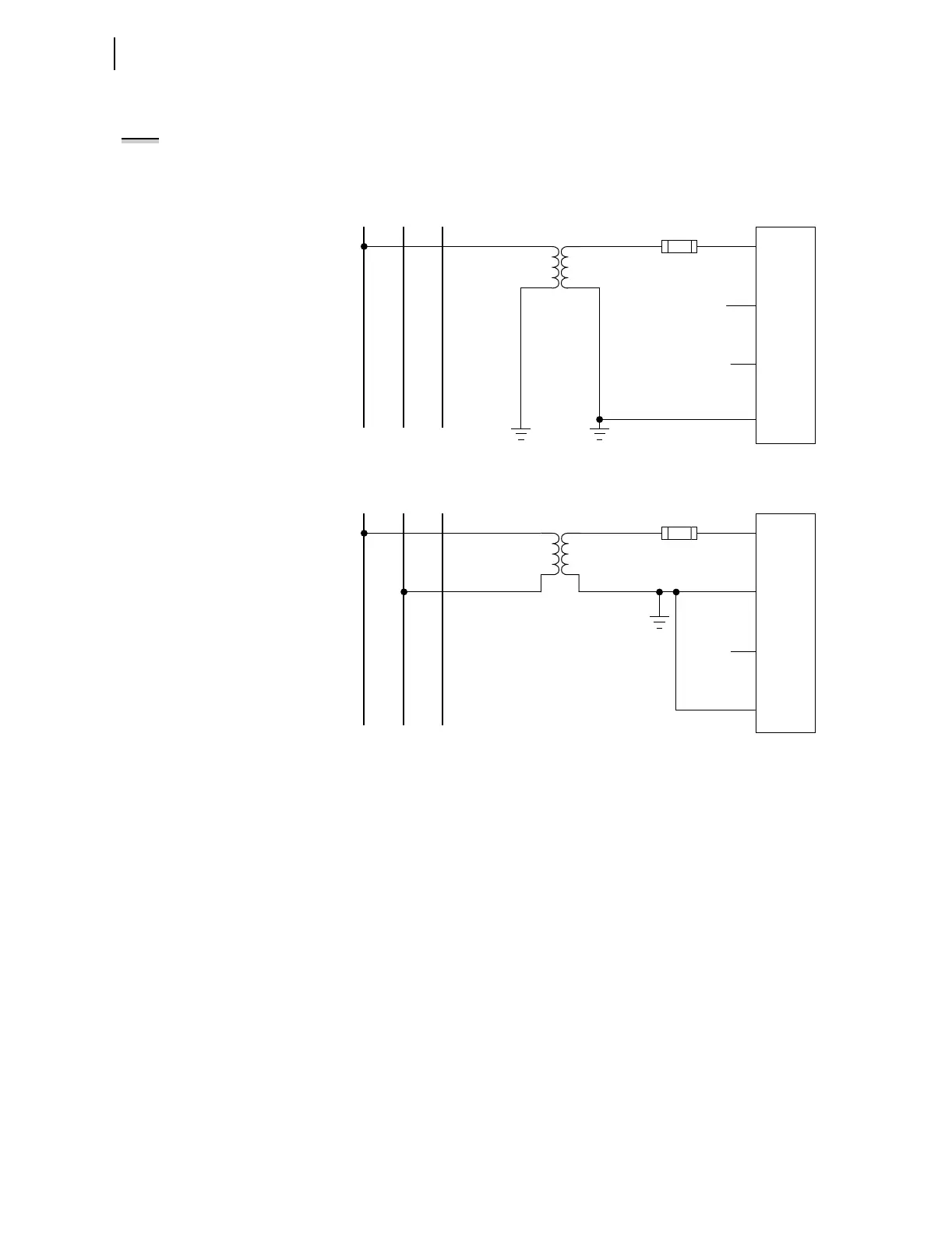

Figure 2.16 Single-Phase Voltage Connections

NOTE: Current limiting fuses in

direct-connected voltage applications

are recommended to limit short circuit

arc flash incident energy.

EO1

EO2

EO3

EO4

Single Phase-to-Neutral VT Connection

Single Phase-to-Phase VT Connection

SEL-787

EO1

EO2

EO3

EO4

SEL-787

Note: The VT secondary circuit must be grounded in the relay cabinet.
