Schweitzer Engineering Laboratories SEL-787 - Figure 5.1 Complex Power Measurement Conventions

To Next Page

To Previous Page

5.2

SEL-787 Relay Instruction Manual Date Code 20081022

Metering and Monitoring

Power Measurement Conventions

The SEL-787 uses the IEEE convention for power measurement. The

implications of this convention are depicted in Figure 5.1.

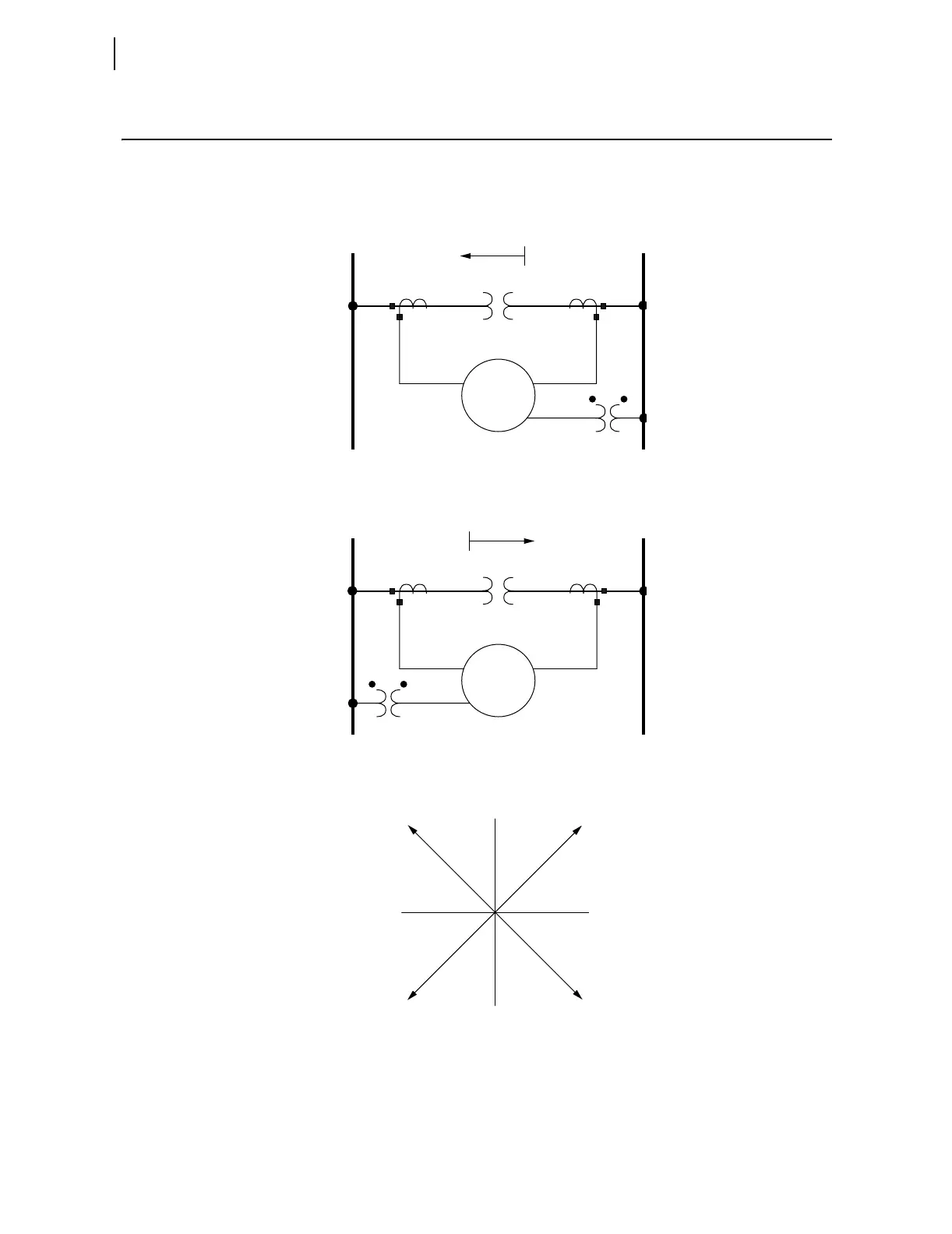

Figure 5.1 Complex Power Measurement Conventions

Q+ (VAR)

I leads V

W = –

VAR = –

PF = LAG

I lags V

W = –

VAR = +

PF = LEAD

P+ (W)

I leads V

W = +

VAR = –

PF = LEAD

I lags V

W = +

VAR = +

PF = LAG

SEL-787

Relay

Direction of Positive Real and Reactive Power

W1 W2

SEL-787

Relay

Direction of Positive Real and Reactive Power

W1 W2
