2.21

Date Code 20081022 Instruction Manual SEL-787 Relay

Installation

AC/DC Control Connection Diagrams

The basic application of the SEL-787 relay is for a two-winding transformer. The SEL-787 base product offering provides

six current channels that are used to monitor the two transformer windings. Relay contact inputs can be used to monitor

high- and low-side breaker status. Relay contact outputs can be used to trip or close high and low side transformer

breakers.

Refer to Figure 2.23, which illustrates tripping control of the two-power circuit breakers.

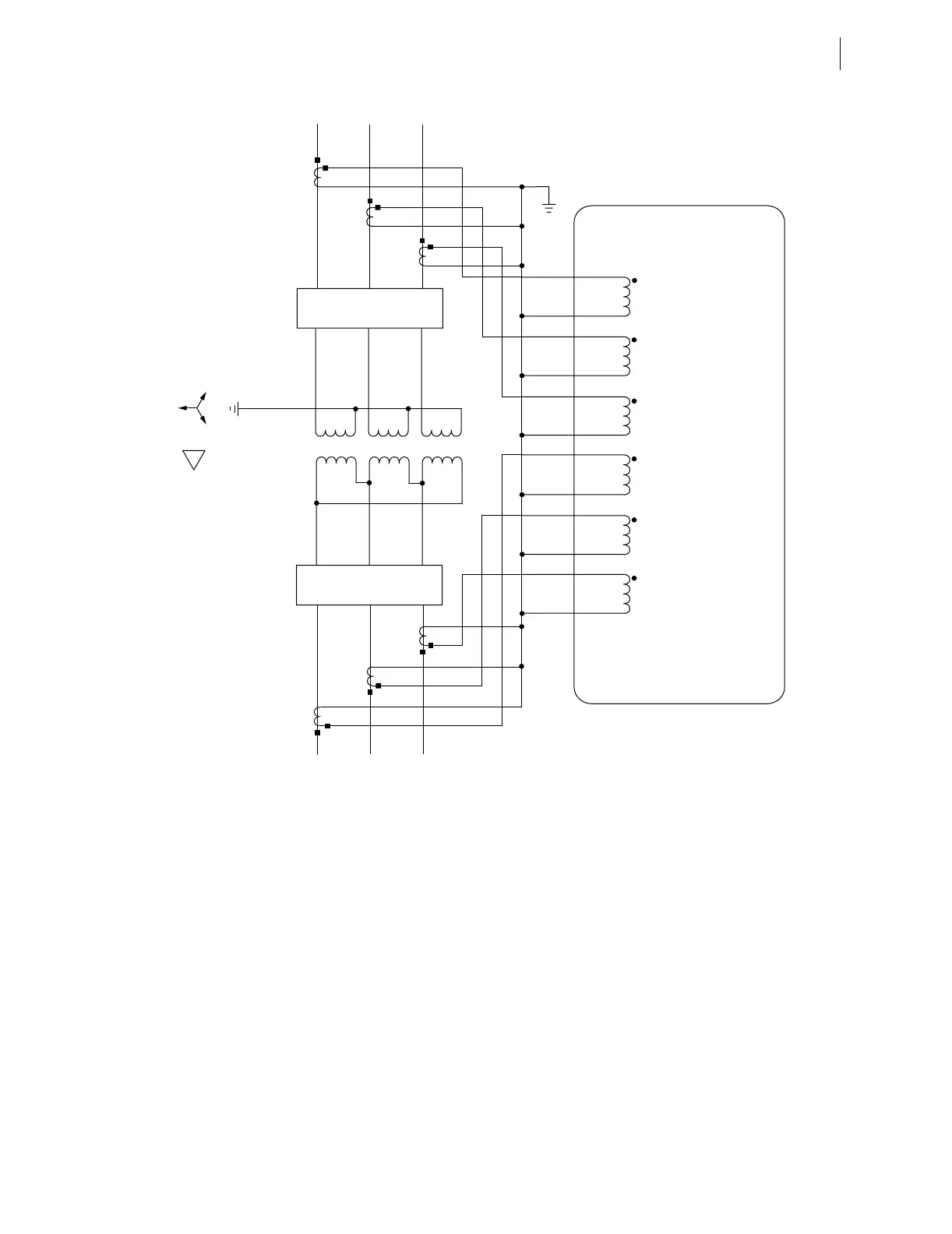

Figure 2.19 SEL-787 Provides Basic Two-Winding Transformer Differential Protection

IAW1

IBW1

ICW1

IAW2

IBW2

ICW2

SEL-787 Relay

52-1

52-2

A B C

a b c

200/5 A

138 kV

30 MVA

13.8 kV

2000/5 A

Note: The CT secondary circuit must be grounded in the relay cabinet.
