2.23

Date Code 20081022 Instruction Manual SEL-787 Relay

Installation

AC/DC Control Connection Diagrams

Installing the optional 1 ACI/3 AVI voltage/current card in Slot E of the SEL-787 provides neutral current and REF

protection, as well as three-phase voltage inputs. These voltage inputs provide the relay with 20.0 to 70.0 Hz frequency

tracking, over-/undervoltage elements, frequency elements, power elements, and volts-per-hertz protection of the

transformer.

Refer to Figure 2.23, which illustrates tripping control of the two-power circuit breakers.

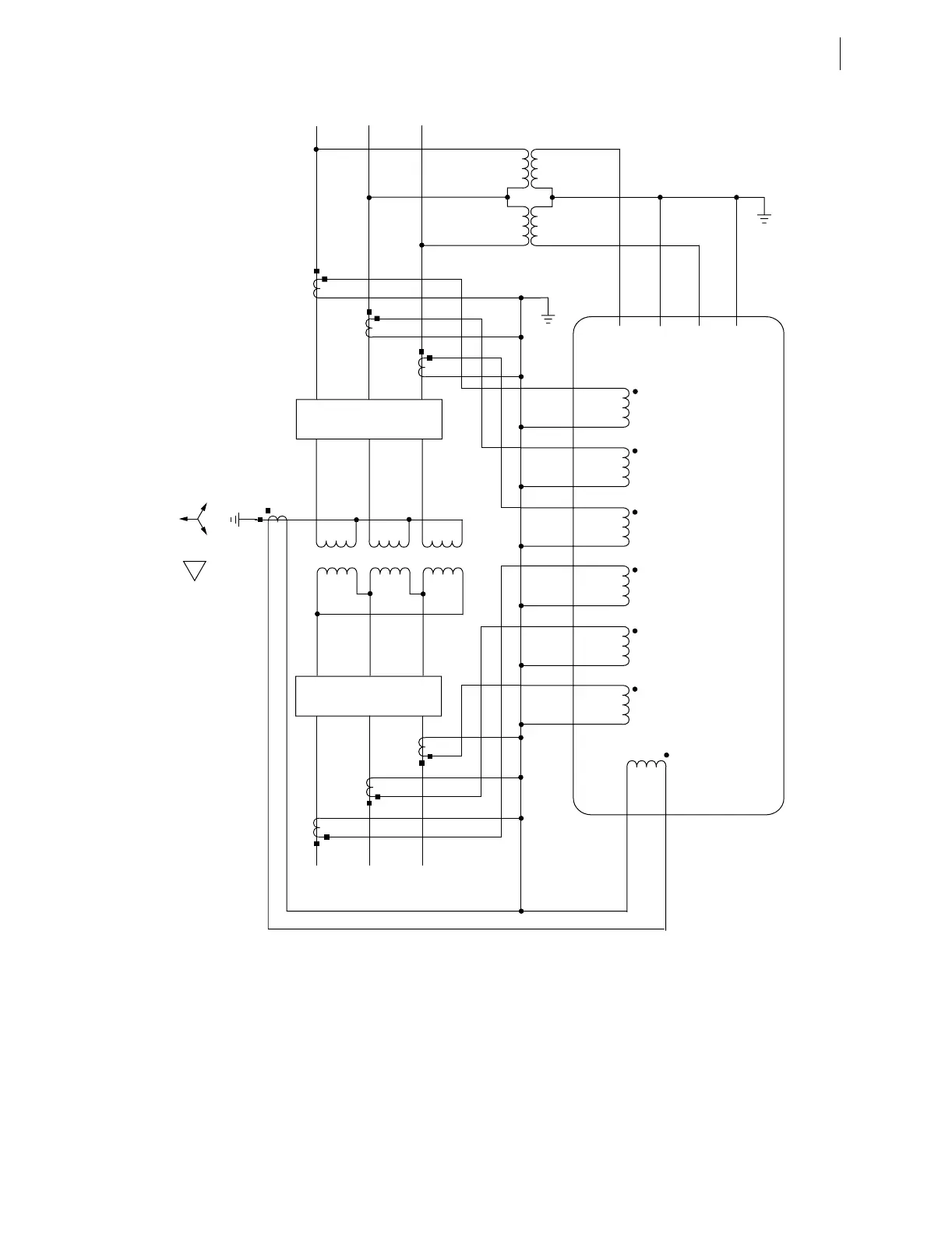

Figure 2.21 SEL-787 Provides Two-Winding Transformer Differential Protection With REF and Voltage-Based

Protection

VA VB VC VN

IAW1

IBW1

ICW1

IAW2

IBW2

ICW2

SEL-787 Relay

52-1

52-2

A B C

a b c

200/5 A

138 kV

30 MVA

13.8 kV

2000/5 A

Note: The CT secondary circuit must be grounded in the relay
