2.22

SEL-787 Relay Instruction Manual Date Code 20081022

Installation

AC/DC Control Connection Diagrams

By adding the 1 ACI current card option to Slot E of the relay, the relay can be used to provide neutral overcurrent and

restricted earth fault protection (REF) of grounded wye transformer winding.

Refer to Figure 2.23, which illustrates tripping control of the two-power circuit breakers.

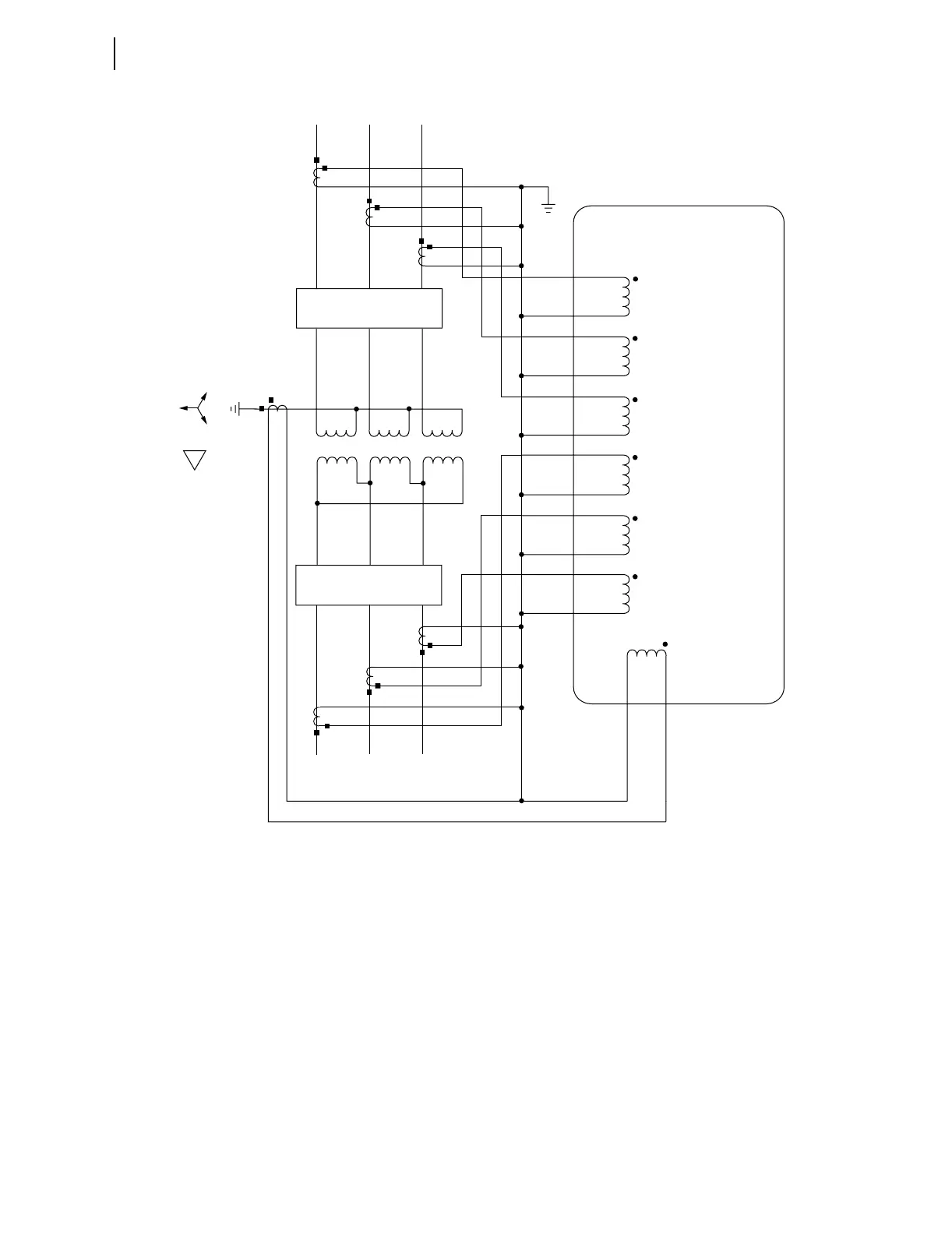

Figure 2.20 SEL-787 Provides Two-Winding Transformer Differential Protection With REF (Restricted Earth

Fault) Protection

IAW1

IBW1

ICW1

IAW2

IBW2

ICW2

SEL-787 Relay

52-1

52-2

A B C

a b c

200/5 A

138 kV

30 MVA

13.8 kV

2000/5 A

Note: The CT secondary circuit must be grounded in the relay cabinet.
