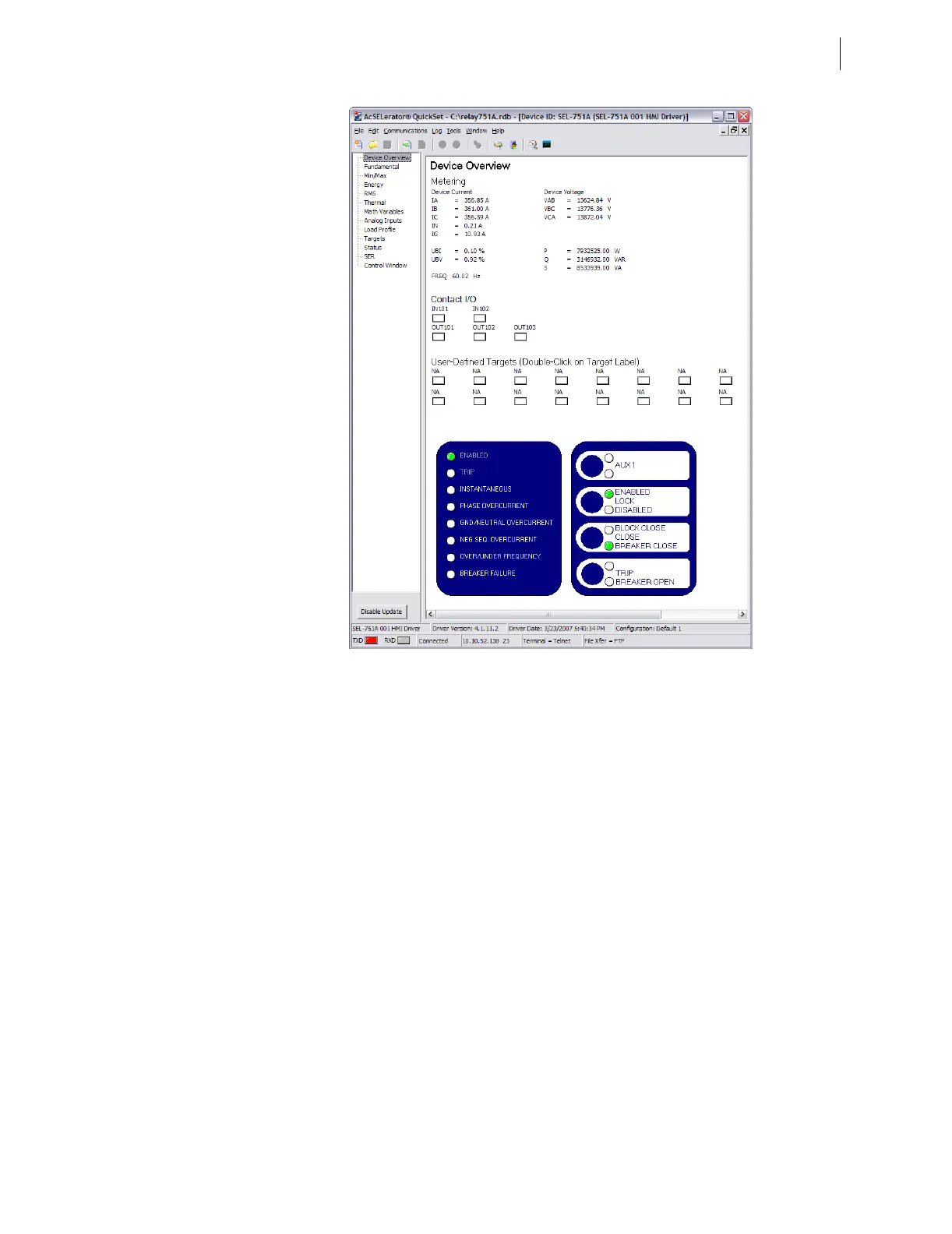

Figure 3.12 Device Overview Screen

The Phasors, Instantaneous, Min/Max, etc., screens display the

corresponding values.

Click on the Targe ts button to view the status of all the Relay Word bits.

When a Relay Word bit has a value of 1 (ENABLED = 1), the Relay Word bit

is asserted. Similarly, when a Relay Word bit has a value of 0 (RB02 = 0), the

Relay Word bit is deasserted.

The Status and SER screens display the same information as the ASCII STA

and SER commands.

Figure 3.13 shows the control screen. From here you can clear the Event

History, M

IRRORED BITS report, SER, trigger events, and reset metering data.

You can also reset the targets, synchronize with IRIG, and set the time and

date.
