D.17

Date Code 20081022 Instruction Manual SEL-787 Relay

DNP3 Communications

DNP3 in the SEL-787

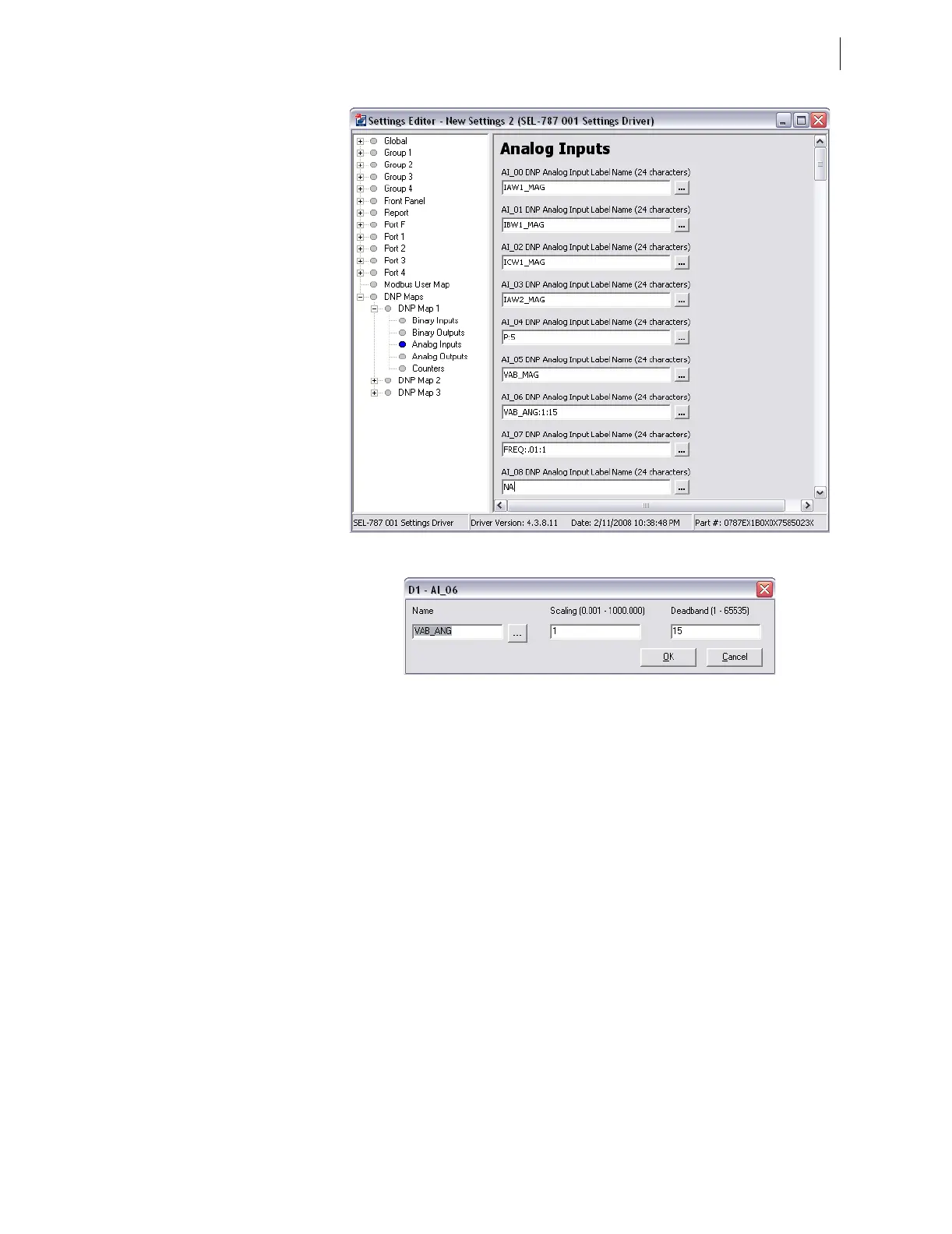

Figure D.6 Analog Input Map Entry in ACSELERATOR QuickSet Software

Figure D.7 AI Point Label, Scaling and Deadband in ACSELERATOR QuickSet

Software

The SET DNP x CO_00 <Enter> command allows you to populate the DNP

counter map with per-point dead bands. Entering these settings is similar to

defining the analog input map settings.

You can use the command SET DNP x BO_00 TERSE <Enter> to change

the binary output map x as shown in Figure D.8. You may populate the custom

BO map with any of the 32 remote bits (RB01–RB32). You can define bit

pairs in BO maps by including a colon (:) between the bit labels.
