Date Code 990215 Factory-Set Logic 1-55
SEL-351P Manual Técnico
For example, Trip latch LED17 (Y/N) = Y and LED17 = 81D1T
The RELÉ FREQ. (underfrequency trip) LED illuminates when Relay Word bit 81D1T
is asserted to logical 1 and
a rising-edge of TRIP occurs.
Trip-latched LEDs (e.g., the RELÉ FREQ. [underfrequency trip] LED) remain latched in and
illuminated until one of the following occur:
• Next trip occurs
• TARGET RESET pushbutton is pressed
• Recloser closes [if global setting “Reset trip-latched LEDs when recloser closes
(Y/N)” = Y]
CONTROLE
HABILITADO
FONTE
CA
BATERIA
PROBLEMA
LINHA
VIVA
LED11L = N
LED11 = 59A1
SEL
OGIC
Setting:
Trip Latch
LED (Y/N)?
LED12L = N
LED12 = NOBATT
+!BCBOK+DTFAIL
LED13 = !LT7
(always extinguished from
factory - see Figure 1.47)
LED13L = N
DWG: MP351P035
Fixed-Function
LED

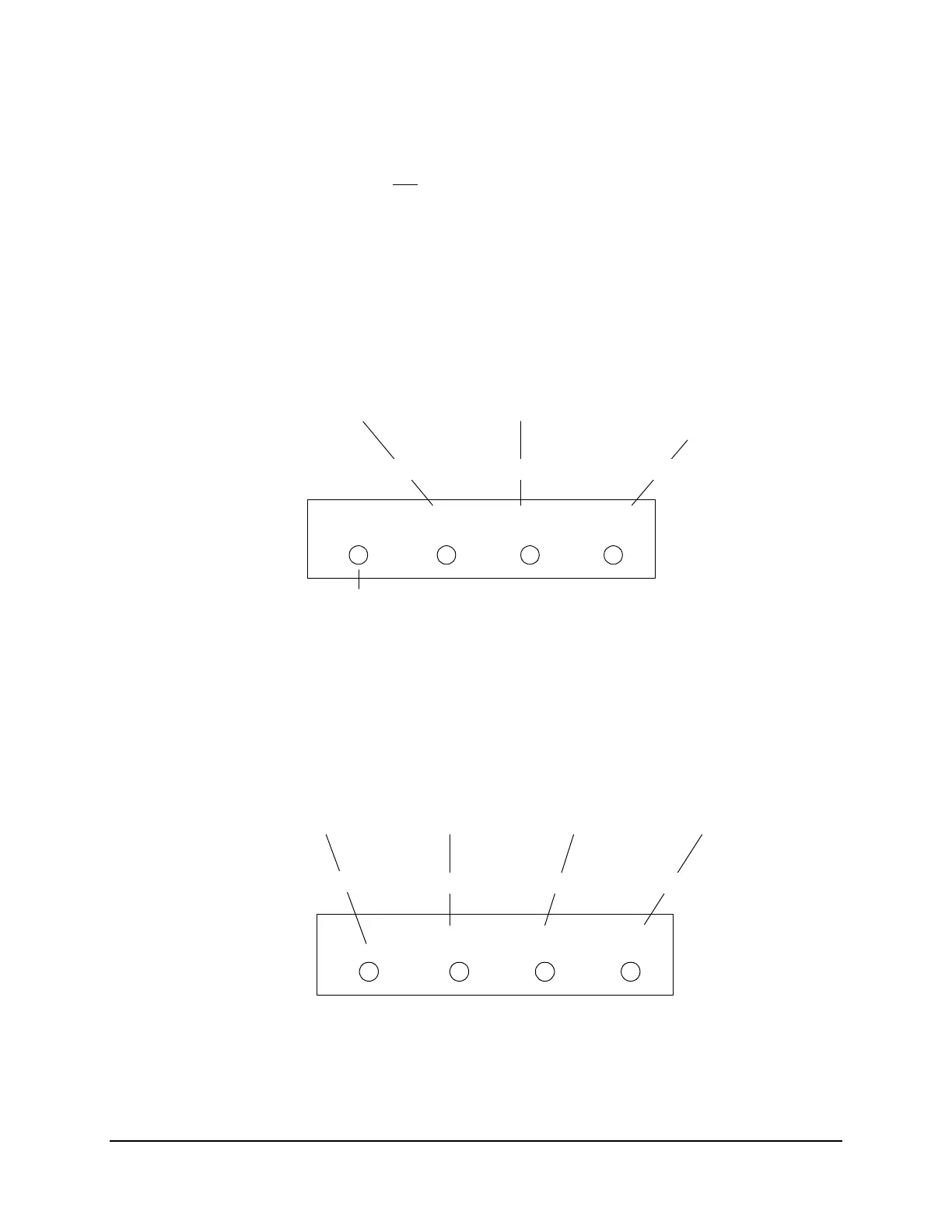

Figure SECTION 1: .45: Front-Panel Status LEDs
Figure 2.1 through Figure 2.4 and associated text in subsection Voltage Connections in
Section 2: Additional Installation Details discuss possible changes necessary to the factory
default AC SUPPLY LED SEL
OGIC
Control Equations setting LED11, for various voltage
connections.
TRIP
CURVA
RÁPIDA
ALTA
CORRENTE
RELÉ
FREQ.
LED14L = Y
LED14 = TRIP
SEL
OGIC
Setting:
Trip Latch
LED (Y/N)?
LED15L = Y
LED15 = 51P1T
+51G1T+51N1T
LED17 = 81D1T
LED17L = Y
DWG: MP351P036
LED16L = Y
LED16 = 67P2T
+67G2T+67N2T
Figure SECTION 1: .46: Front-Panel Trip Target LEDs
