Date Code 990430 Loss-of-Potential, Load Encroachment, and Directional Element Logic 4-15

SEL-351P Manual Técnico

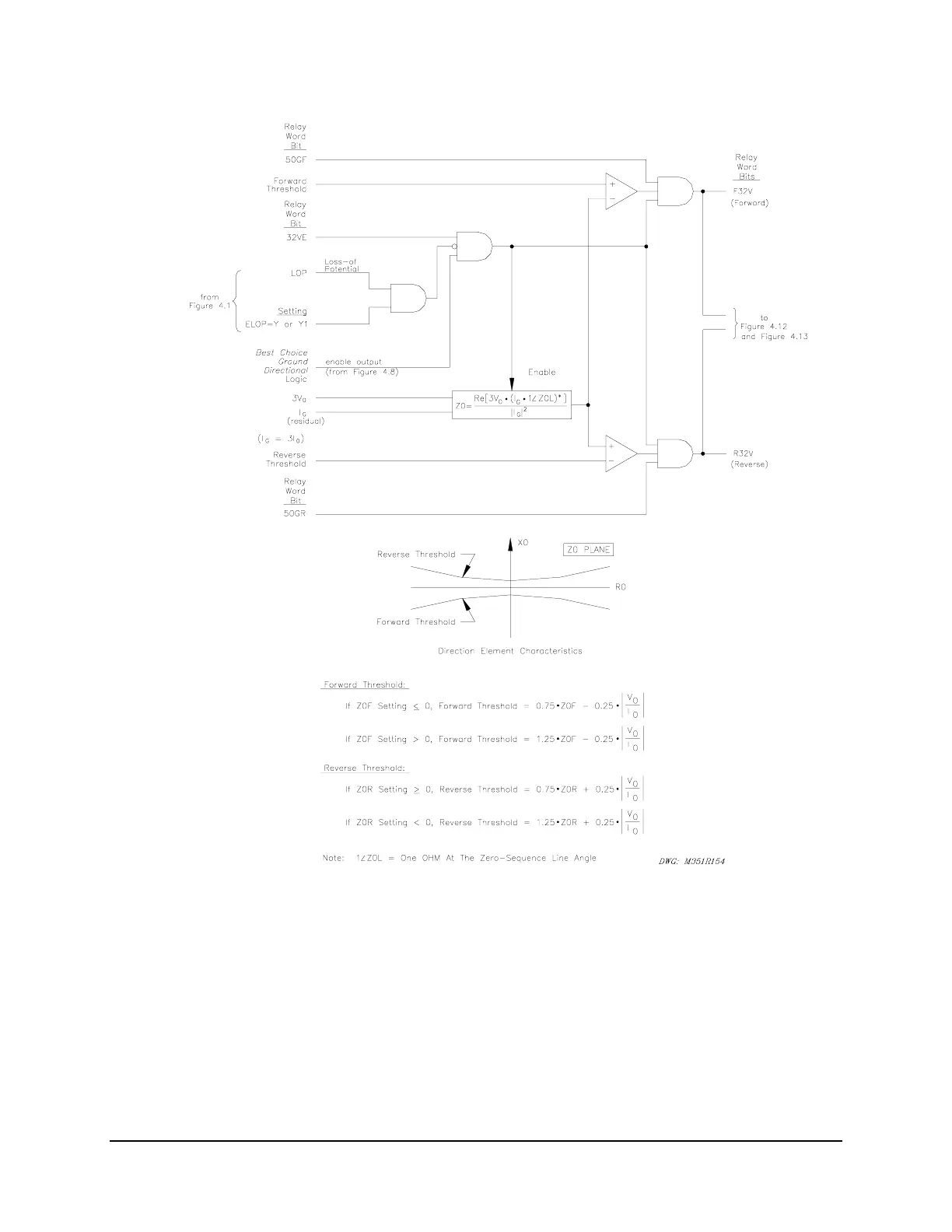

Figure SECTION 4: .10: Zero-Sequence Voltage-Polarized, Residual-Current

Directional Element for Neutral Ground and Residual Ground Overcurrent

Elements
