Date Code 990215 Standard Event Reports and SER 12-31
SEL-351P Manual Técnico

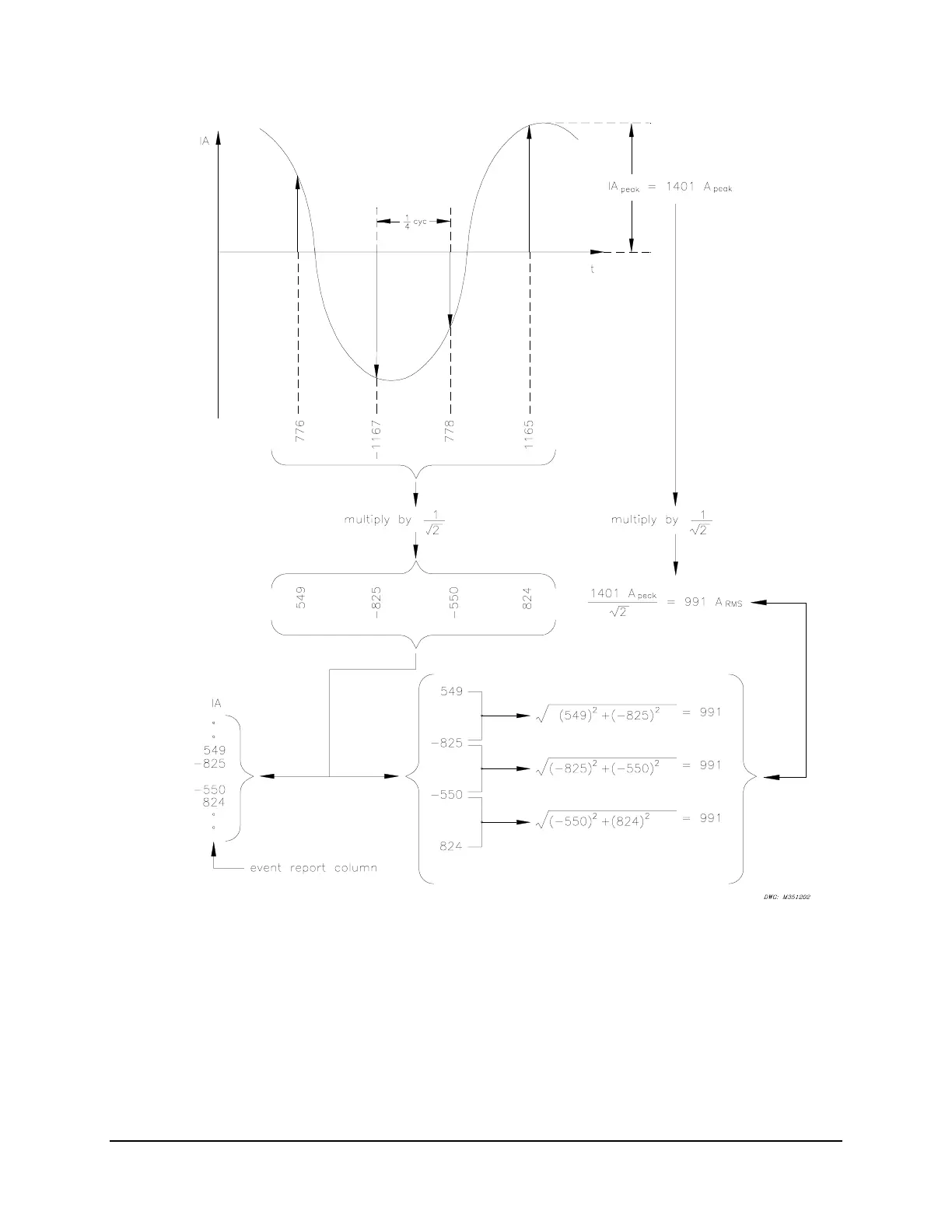

Figure SECTION 12: .3: Derivation of Event Report Current Values and RMS
Current Values From Sampled Current Waveform
In
Figure SECTION 12: .3, note that any two rows of current data from the event report in
Figure SECTION 12: .2, 1/4 cycle apart, can be used to calculate RMS current values.
