Seca CT8000P-2 - Resting ECG with 10-Lead Patient Cable; Electrode Placement for Standard Leads

Page 31
Art. no.: 2.511407 Rev.: a
Electrode placement 4
User guide Resting ECG with 10-lead patient cable 4.3
CT8000P-2
4.3 Resting ECG with 10-lead patient cable

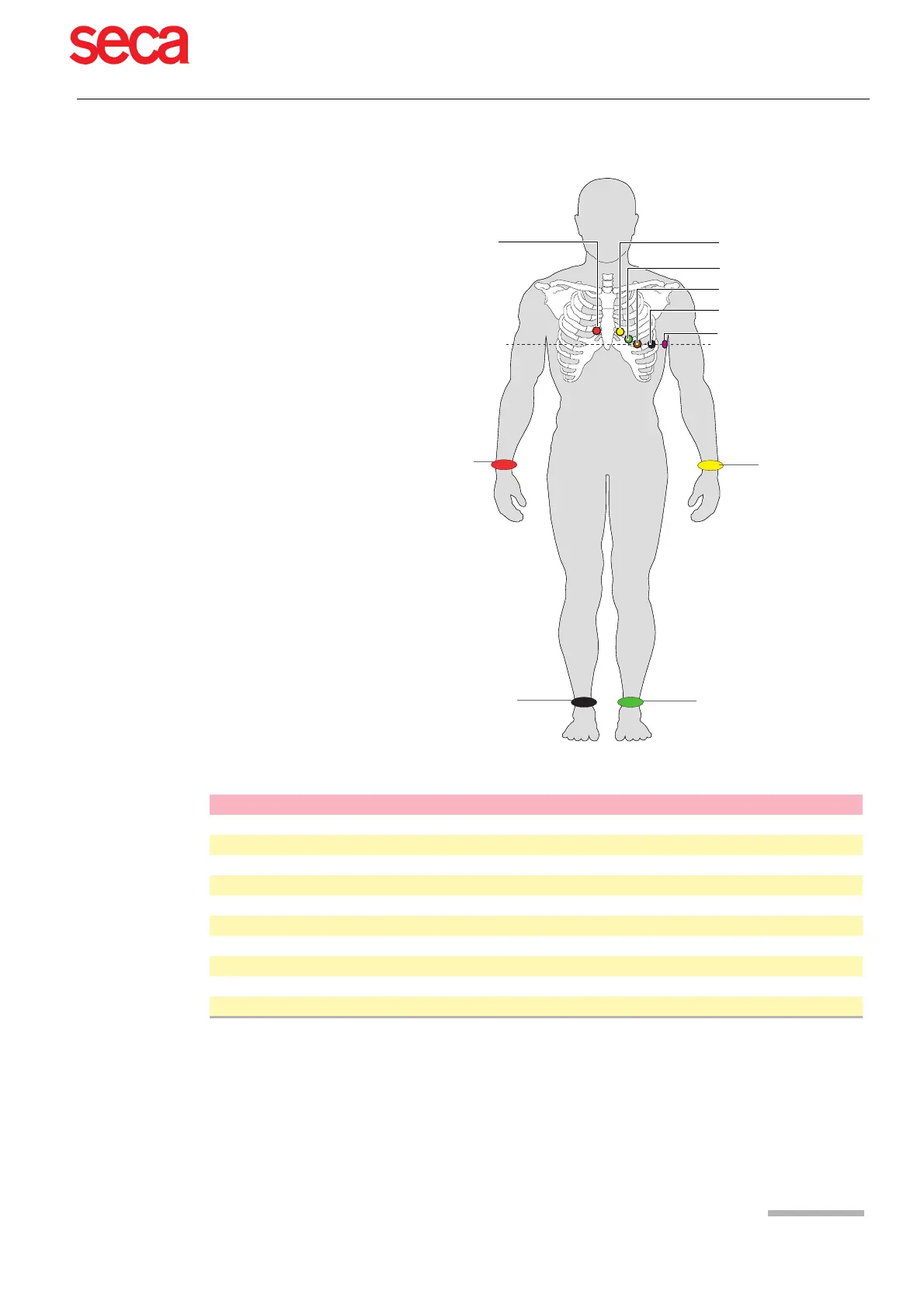

4.3.1 Electrode placement for standard leads
The electrode resistance can be checked in the electrode test screen (see Page 39).
IEC label AHA label Connecting the ECG patient cable
C1 red V1 red  Fourth intercostal space at the right sternal border
C2 yellow V2 yellow  Fourth intercostal space at the left sternal border
C3 green V3 green  Midway between C2 and C4
C4 brown V4 blue  Mid-clavicular line in the fifth intercostal space
C5 black V5 orange  Anterior axillary line on the same horizontal level as C4
C6 purple V6 purple  Mid-axillary line on the same horizontal level as C4
L yellow LA black  Left arm (resting ECG)
R red RA white  Right arm (resting ECG)
F green LL red  Left foot (resting ECG)
N black RL green  Right foot (resting ECG)
C1 red
R red
N black
C2 yellow
C3 green
C4 brown
C6 violet
C5 black
F green
L yellow
