Art. no.: 2.511407 Rev.: a

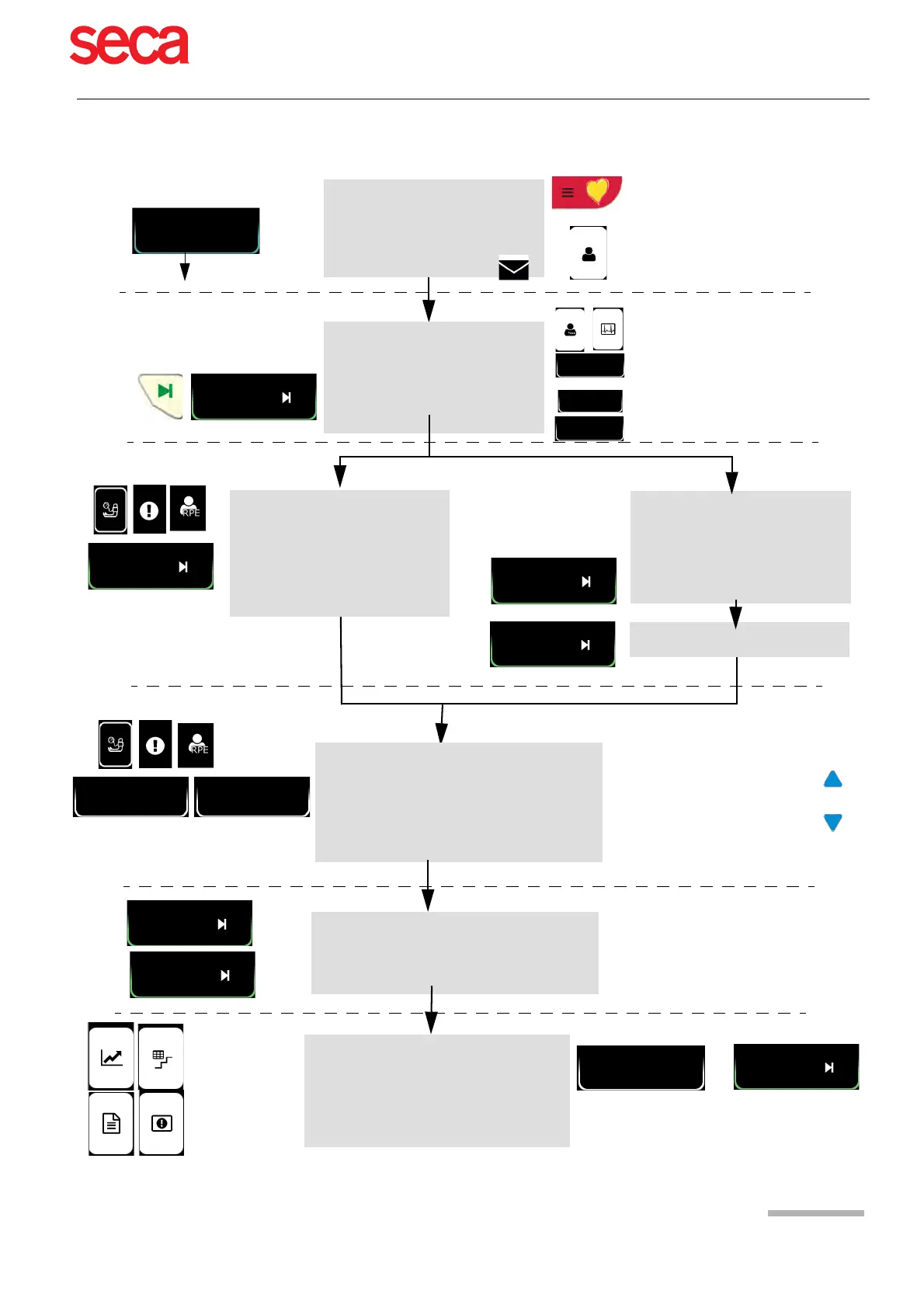

Prepare the patient, connect the
electrodes and switch on the device
Basic settings
Entering patient data or
retrieving patient data
from a network (worklist,
PDQ or Schiller Link)
• General settings Ergo
device, protocol
• Patient master data
• Recording data
Apply the electrodes
Check the signal
Filter settings
Choose Protocol
Pacemaker on/off
• Select filter (Off, 25, 40, 150 Hz,
RNSF)
• Hookup
• Recording (preview)
LP 150Hz
Start
Exercise ECG
Exercise
Warm-up
After 10 seconds, the
"Warmup" key is active
Enter BP values
Enter comments
Start “Warmup”
Exercise
Start exercise
Exercise is started
Enter BP values
Enter comments
Hold/continue exercise
Continue exercise manually
Hold Next
Recovery
Terminate exercise with the
"Recovery" key
Terminate exercise ECG with the
"End" key
End
Review of exercise ECG
Check patient data
Print and accept/save exercise
ECG
Print
Accept
30/30-3/25
• Protocol
After 10 seconds, the
"Exercise" key is active
Enter BP values
Enter comments
Enter RPE
Start exercise
Exercise stages on the treadmill
can be changed manually with
the navigation buttons.
PM off
• Pacemaker detection on/off
