Art. no.: 2.511407 Rev.: a
1. The dialogue CCAA is only displayed if this option is installed (section 6.1.2
2. The dialogue ETM Sport is only displayed if the Interpretation option is in-
stalled.

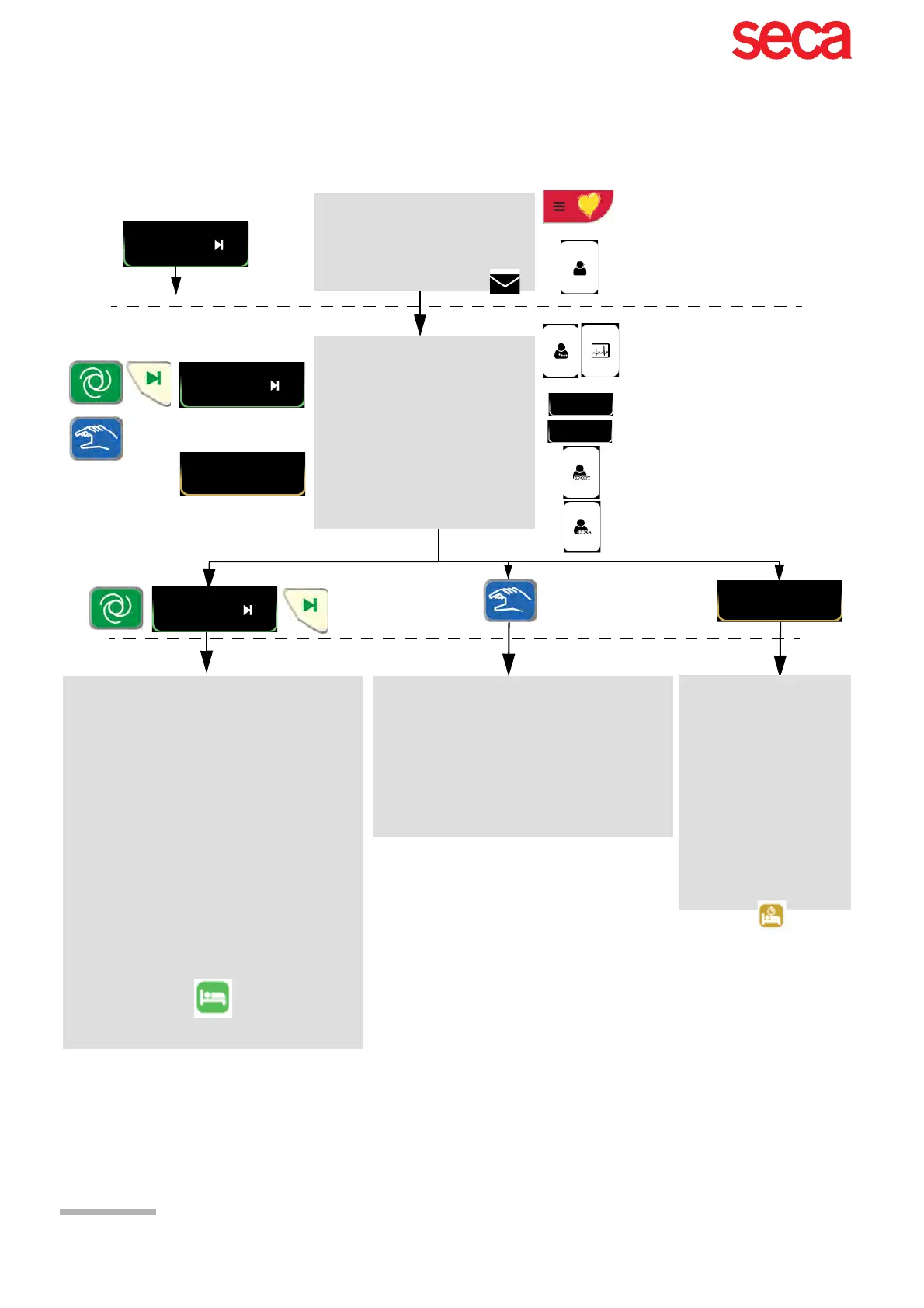

Prepare the patient, connect the
electrodes and switch on the device
Manual printout
The lead group, speed and sensitivity can be changed using
the keys FN + speed or amplitude.
Continuous 6 or 12-lead printout in real time (only on internal
thermal printer) until STOP is pressed.
Resting ECG recording
12-lead recording of the last 10 seconds of ECG data,
including calculated average values and measurements,
interpretation or CCAA analysis.
The recording can be reviewed.
Recordings can be discarded, saved, printed and/or copies
can be printed in the same or another format.
Moreover, recordings can be opened from the memory and
printed or transferred.
Resting ECG icon in the memory screen:
Basic settings
Entering patient data or
retrieving patient data
from a network (worklist,
PDQ or Schiller Link)
• Lead configuration, ECG
cable
• Patient master data
• Recording data
•
1
Activate CCAA (option)
Prepare the patient, connect the
electrodes and switch on the device
Apply the electrodes
Check the signal
Filter settings
PM detection on/off
Signal overview
CCAA recording
1
Yes: lead config. autom.
set to V4r, or
Recording with ETM Sport
• Select filter (Off, 25, 40, 150 Hz)
• Hookup
• Recording (preview)
Rhythm recording
Setting the recording duration.
Stopping and storing the
recording possible after 10
seconds.
Reviewing, discarding, storing or
printing the recording: same as
for resting ECGs.
Resting rhythm icon in the
•
2
ETM Sport (option)
LP 150Hz
Auto
Auto
Rhythm
Manual
Rhythm
Manual
Resting
• PM detection on/off
PM on
