Seca CT8000P-2 - Pediatric

4 Electrode placement
4.8 Pediatric
Page 36
CT8000P-2
Art. no.: 2.511407 Rev.: a
4.8 Pediatric
R red
N black
C2 yellow
C6 violet
C5 black
F green
L yellow
C7 Red
C3r Green
C4r Brown

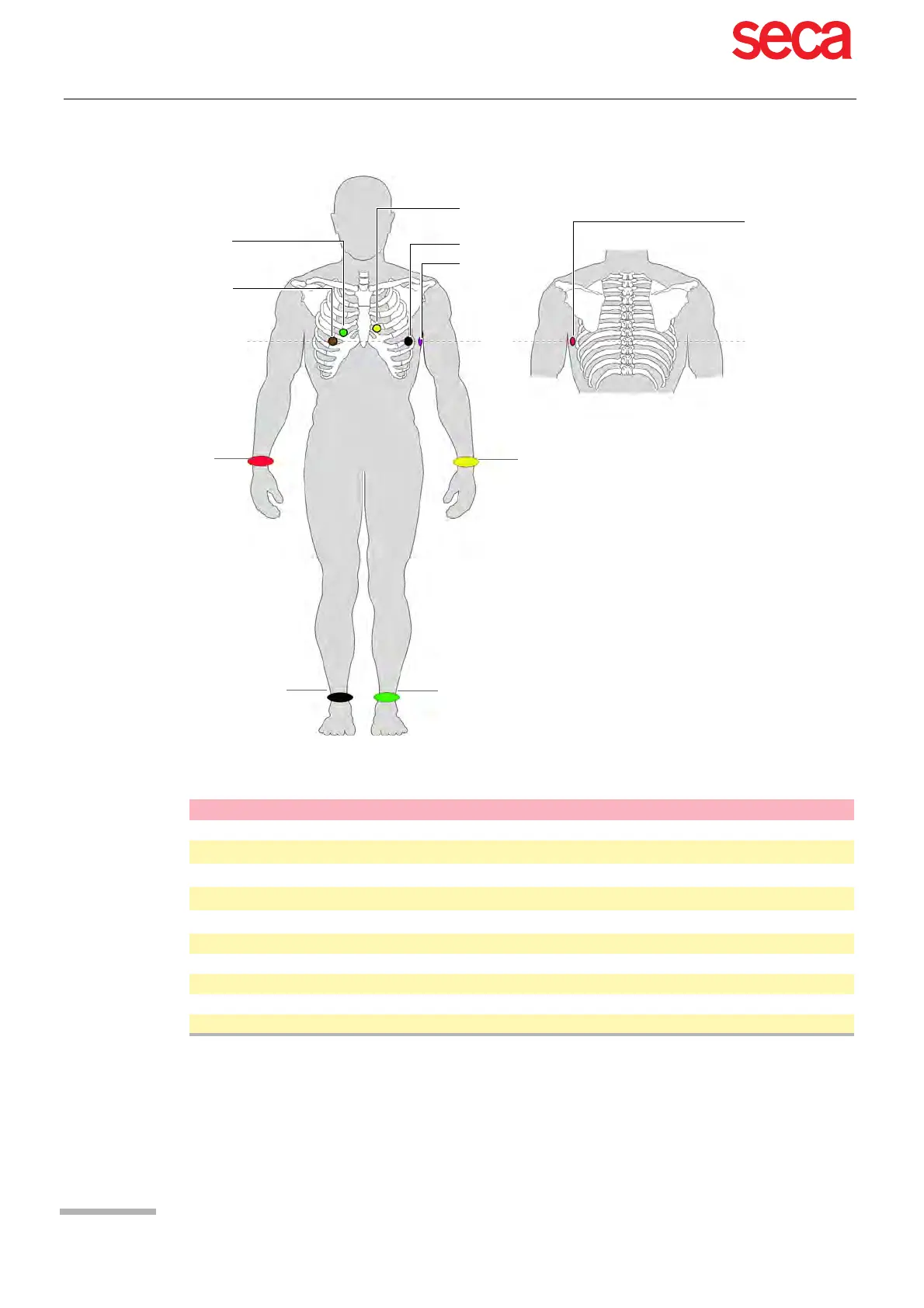

IEC label AHA label Electrode placement
C4r white / brown V4 brown / blue  Fifth intercostal space on the mid-clavicular line.
C3r white / green V3 brown / green
 Above C4r, fourth intercostal space.
C2 white / yellow V6 brown / violet
 Fourth intercostal space at the left sternal border
C5 white / black V5 brown / orange
 Anterior axillary line on the same horizontal level as C4r.
C6 white/violet V6 brown / violet
 Mid-axillary line on the same horizontal level as C4r.
C7 (C1 white /red) V7 (V1 brown / red)  Left posterior axillary line at the level of C4r.
L yellow LA Black  Left arm
R red RA White  Right arm
F green LL Red  Left foot
N black RL Green  Right foot
