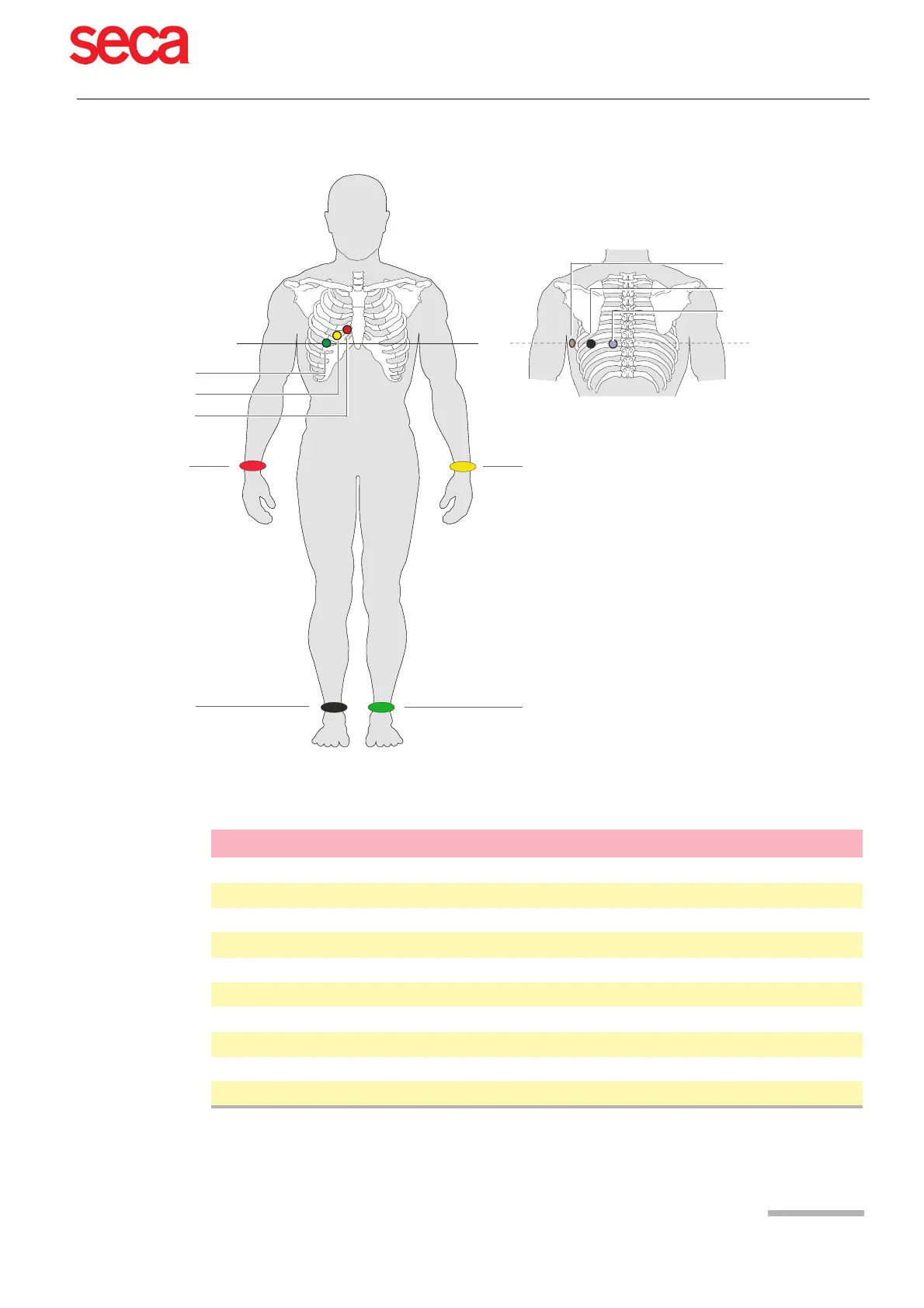

Electrode placement 4
User guide Balanced 4.5
CT8000P-2
4.5 Balanced
Balanced 10-wire Cable
C7 (C4 Brown)
R red
N black
C8 (C5 Black)
C9 (C6 Violet)
F green
L yellow
C1 red
C4r (C3) Green
C3r (C2 Yellow)
IEC label AHA label Electrode placement
C1 white / red V1 brown / red  Fourth intercostal space at the right sternal border.
C3r white / yellow V3r brown / yellow  Left of the mid-scapular line at the level of C3
C4r white / green V4r brown / green  Left of the mid-scapular line at the level of C4
C7 white / brown V7 brown / blue  Left posterior axillary line at the level of C4.
C8 white / black V8 brown / orange  Left posterior axillary line opposite of C4
C9 white /violet V9 brown / violet  Left posterior axillary line at the level of C4, opposite C3
L yellow LA Black  Left arm
R red RA White  Right arm
F green LL Red  Left foot
N black RL Green  Right foot
