7.5 During the test

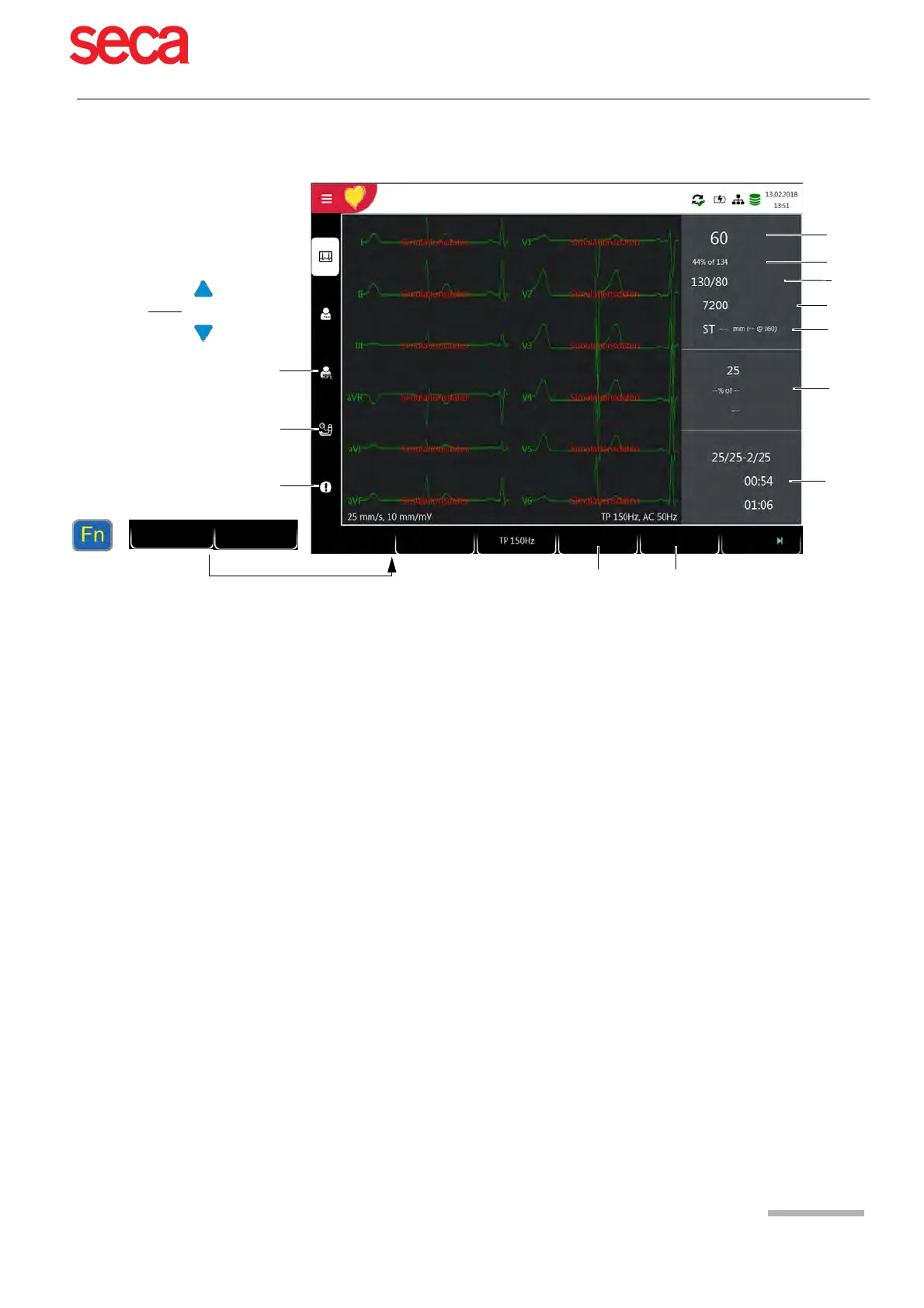

(1) Heart rate Measured heart rate
(2) Heart rate in % Current heart rate in % of max. target HR (the target HR depends on the age, gender
and target HR calculation according to WHO or AHA).
(3) Blood pressure (mmHg) Display of the current measured value for the load stage displayed on the screen and
the value measured previously.
(4) Double product (mmHg x bpm) Display of the double product (systolic BP x heart rate (mmHg x bpm))
(5) ST measurement The current negative ST amplitude is displayed. The measurement interval (after the
J point) is user-defined (see section 10.8.1 General, page 88).
(6) Current exercise stage In the exercise information field, the current load, load in % of max. load , bike rpm
and (for treadmill) current METs, % max. METs, km/h and slope in % are displayed.
(7) Protocol In the protocol information field, the protocol, the current phase/step, remaining time
or elapsed time are displayed (see section 10.8.1 General, page 88)
(8) Next At any time during the test, advancement to the next stage of the protocol can be
initiated manually by pressing the function key "Next".
(9) Hold Use the function key Hold to remain longer on a stage.
(10) Entering events The event dialogue is opened
(11) Enter blood pressure The BP dialogue is opened (this symbol blinks at the beginning of each step)
(12) Enter RPE information The dialogue to enter the exertion perceived by the patient (1-20) is opened.
(13) Manually changing steps Exercise stages (6) can be changed manually with the navigation buttons.
