This type of protective device is used for the protection of access to hazardous areas.
W
hen the hazardous area is entered, a stop signal is triggered. A person standing
behind the protective device will not be detected by the ESPE.

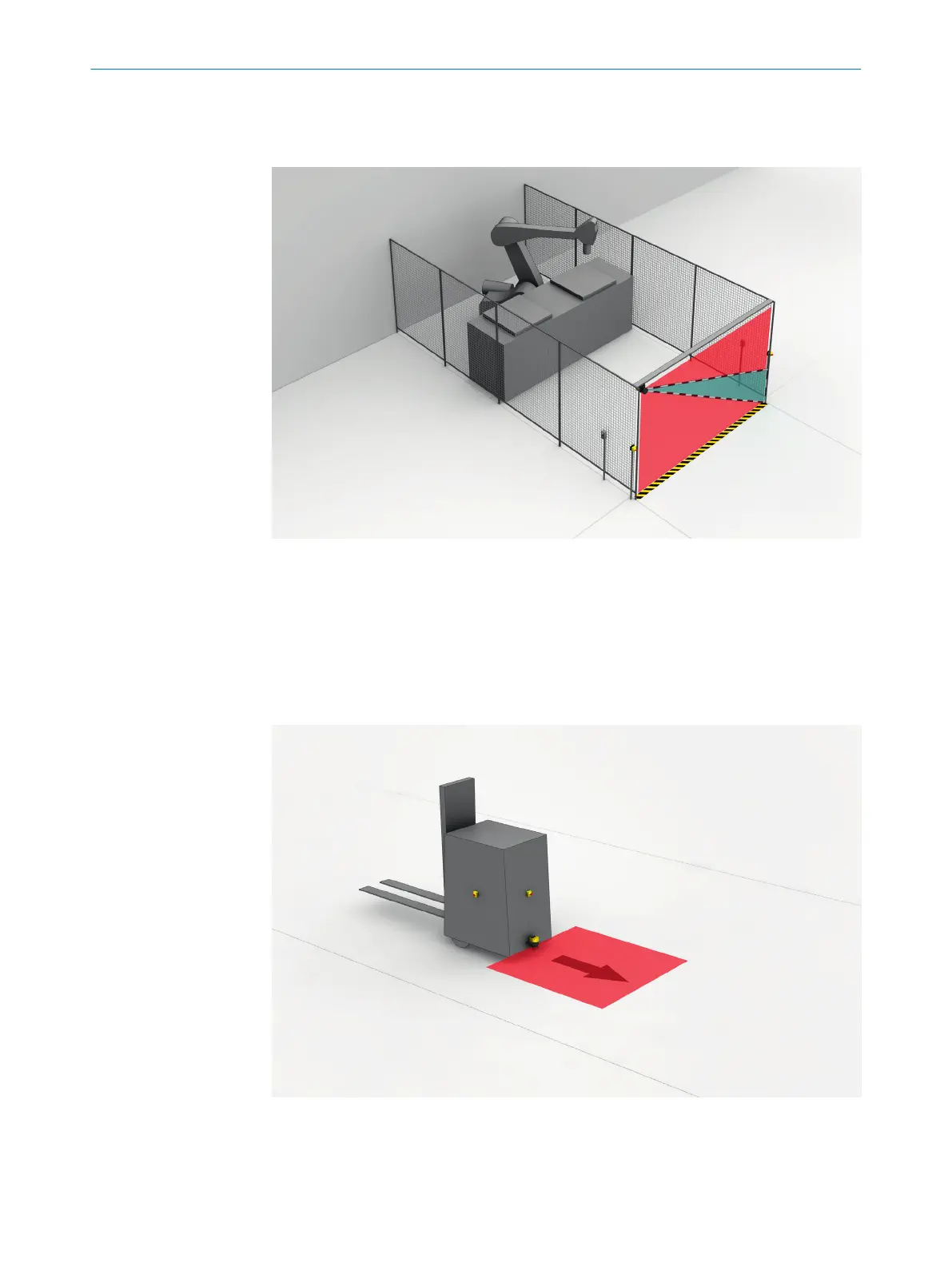

Figure 9: Access protection: detection of a person when accessing a hazardous area
Mobile hazardous area protection
Mobile ha
zardous area protection is suitable for AGVs (automated guided vehicles),
cranes, and forklift trucks to protect people when vehicles are moving or docking at a
fixed station.
The safety laser scanner monitors the area in the direction of travel and stops the
vehicle as soon as an object is located in the protective field.
Figure 10: Mobile hazardous area protection: detection of a person when a vehicle approaches
PRODUCT DESCRIPTION 3
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
19
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
