7.6 Application
Overview

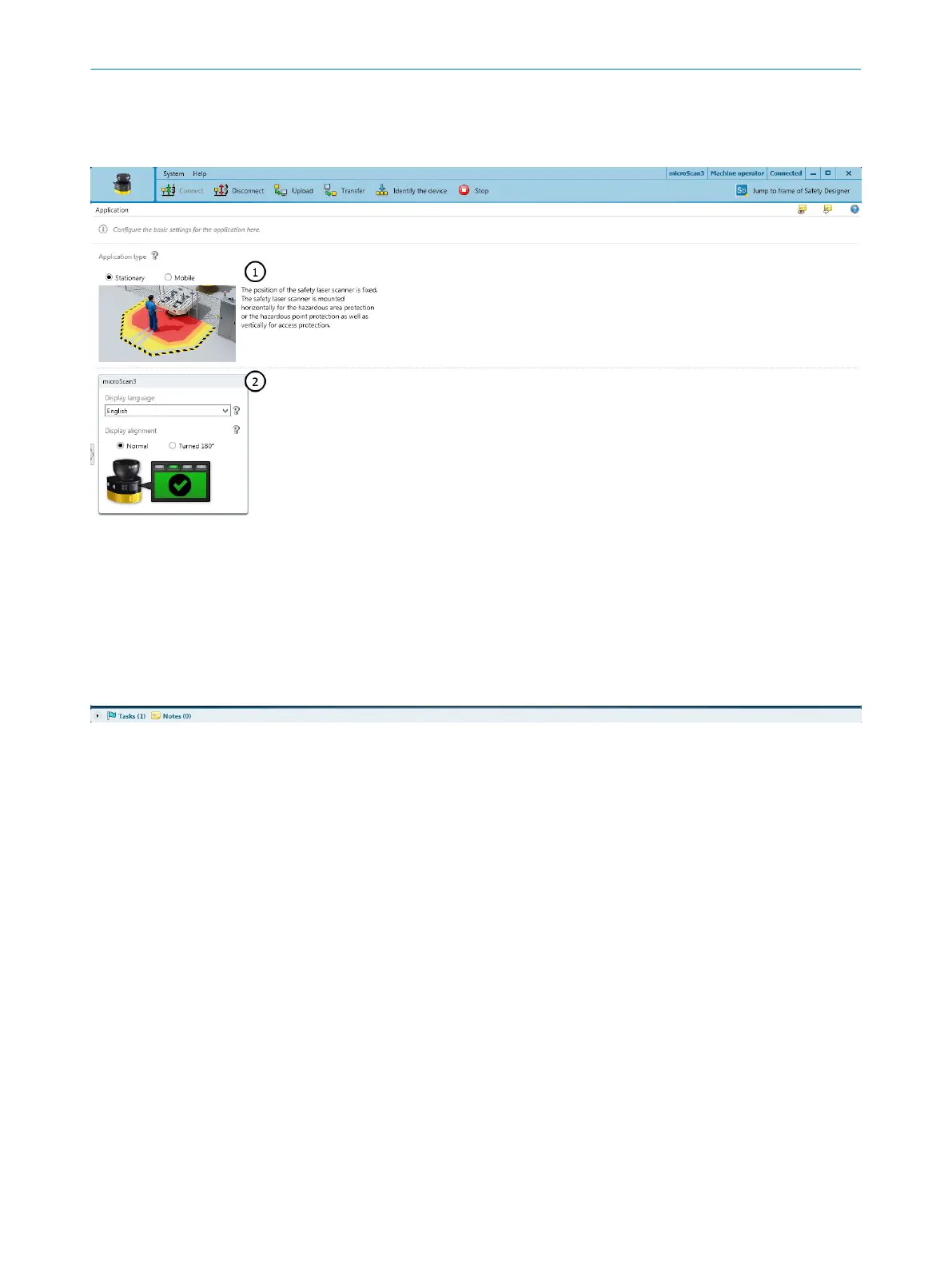

Figure 49: Application
1
Basic settings for the application
2
Settings for the display
Application type
T
he type of application depends on the application of the safety laser scanner:
b
Select application type.
✓
Mobile
Mobile hazardous area protection is suitable for AGVs (automated guided vehi‐
c
les), cranes, and forklifts to protect people when vehicles are moving or docking.
The safety laser scanner monitors the area in the direction of travel and stops the
vehicle as soon as an object is located in the protective field.
✓
S
tationary
The position of the safety laser scanner is fixed. The safety laser scanner is
mount
ed horizontally (for hazardous area protection) or vertically (for hazardous
point protection and access protection).
Display language
T
he display of the safety laser scanner outputs notifications and states. Multiple lan‐
guages are available for the display.
b
Select a language that the operator understands.
✓
The safety laser scanner outputs the notifications in the set language.
CONFIGURATION 7
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
73
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
