SICK microScan3 Core I/O AIDA User Manual

•
d
r
= coar
sest permissible resolution of the safety laser scanner in millimeters
(mm)
•
H
D
= height of the protective field above the floor in millimeters (mm)
b
The safety laser scanner’s resolution can be set to the predefined value d. If the
result d
r
does not match any of these values, choose a finer resolution (d ≤ d
r
).
4.3.5.4 Distance from walls
Overview
T
he availability may be impaired if the protective field stretches as far as a wall or a
different object. So, plan to have a space between the protective field and the object. A
distance of the TZ value is recommended to ensure availability. (TZ = tolerance range of
the safety laser scanner, see "Data sheet", page 126.)
1

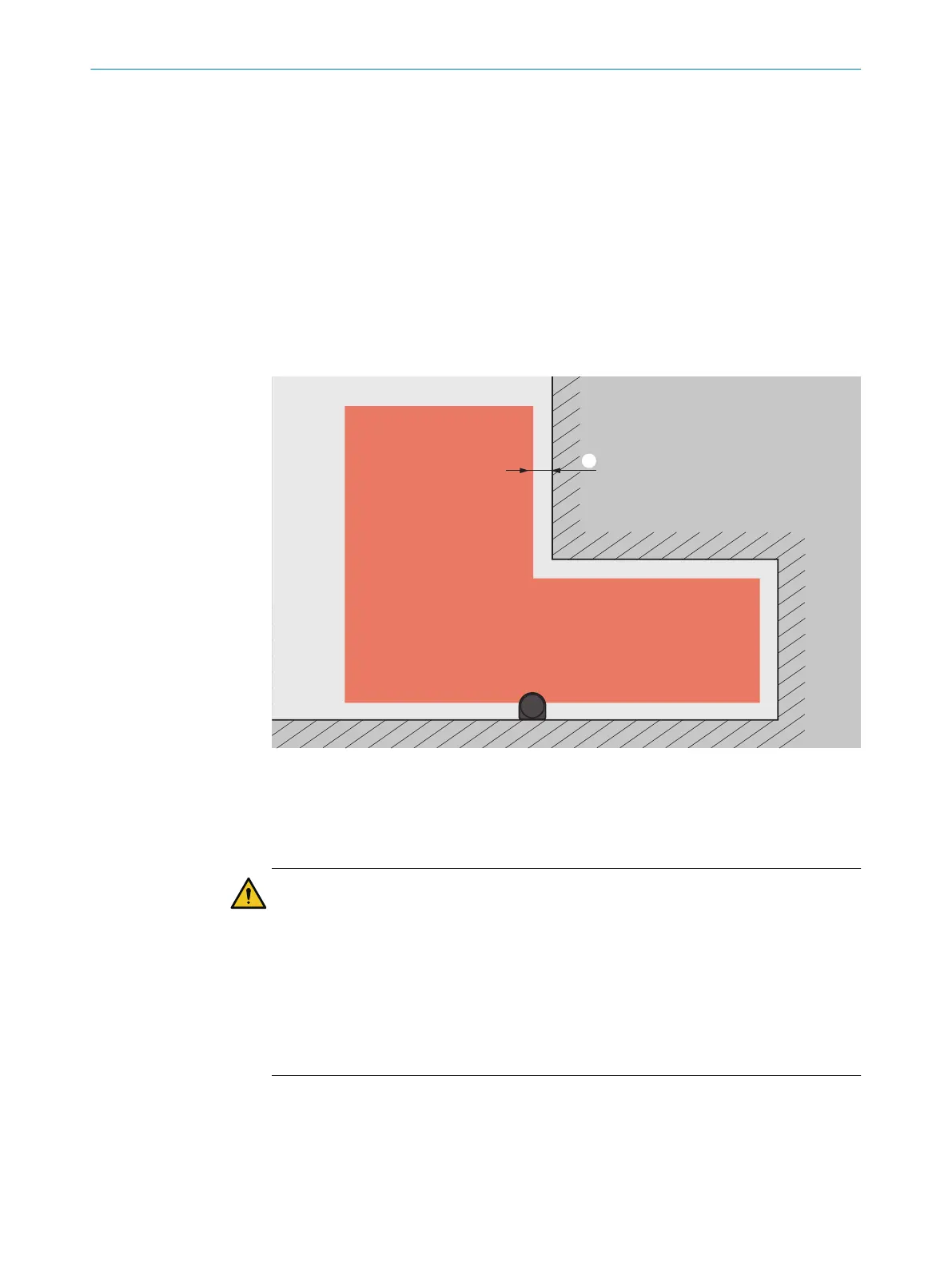

Figure 24: Distance of the protective field from the wall
1
Recommended distance of the protective field from the wall.
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of
non-observance.
If the distance between the protective field and the wall is so large that a person can
stand in it, this person might not be detected. If needed, take suitable measures to
prevent this such as:
b
Attaching deflector plates
b
Attaching fence
4 PROJECT PLANNING
34
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
