7.12 Simulation
Overview

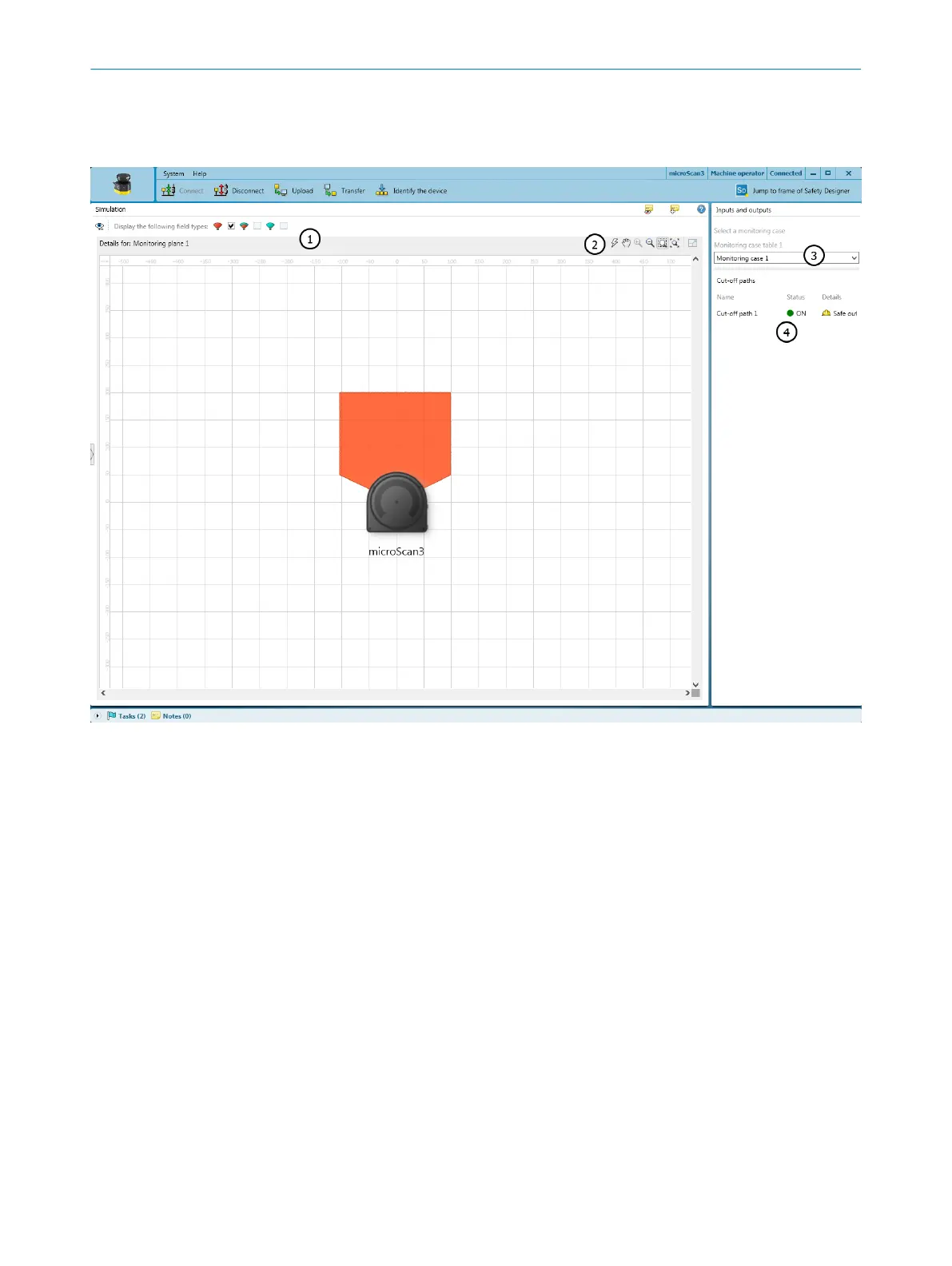

Figure 59: Simulation
1
Show or hide field types
2
Simulation tools
3
Select monitoring case
4
Display the cut-off paths
You can visualize the result of the set configuration in the simulation.
Simulation components and options
•
Dis
play the status of the OSSD pairs
•
Display the status of the cut-off paths
•
You can mark a field in the simulation as interrupted and check which result is
triggered by an object in the relevant field
•
You can move fields to the foreground or to the background using the context
menu (right mouse button)
CONFIGURATION 7
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
95
Subject to change without notice
