NOTICE
b
T
he optics cover of the safety laser scanner is an optical component. Make sure
that the optics cover does not become dirty or scratched during unpacking and
mounting. Prevent fingerprints on the optics cover. Wear the gloves supplied with
the new optics cover during replacement.
b
Replace the optics cover in an environment free of dust and dirt.
b
Never replace the optics cover during continuous operation, as dust particles
could penetrate into the safety laser scanner.
b
Avoid soiling the inside of the optics cover, e.g, by fingerprints.
b
Do not use any additional sealant, such as silicone, for sealing the optics cover.
Any vapors that are created may damage the optical components.
b
Mount the optics cover according to the following instructions to ensure IP65 leak
tightness of the housing.
b
Only use a new optics cover as a replacement.
b
Provide ESD protection when replacing the optics cover.
NOTICE
Enc
losure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
Replace the optics cover as follows:
T
ool required:
•
TX10 torque wrench

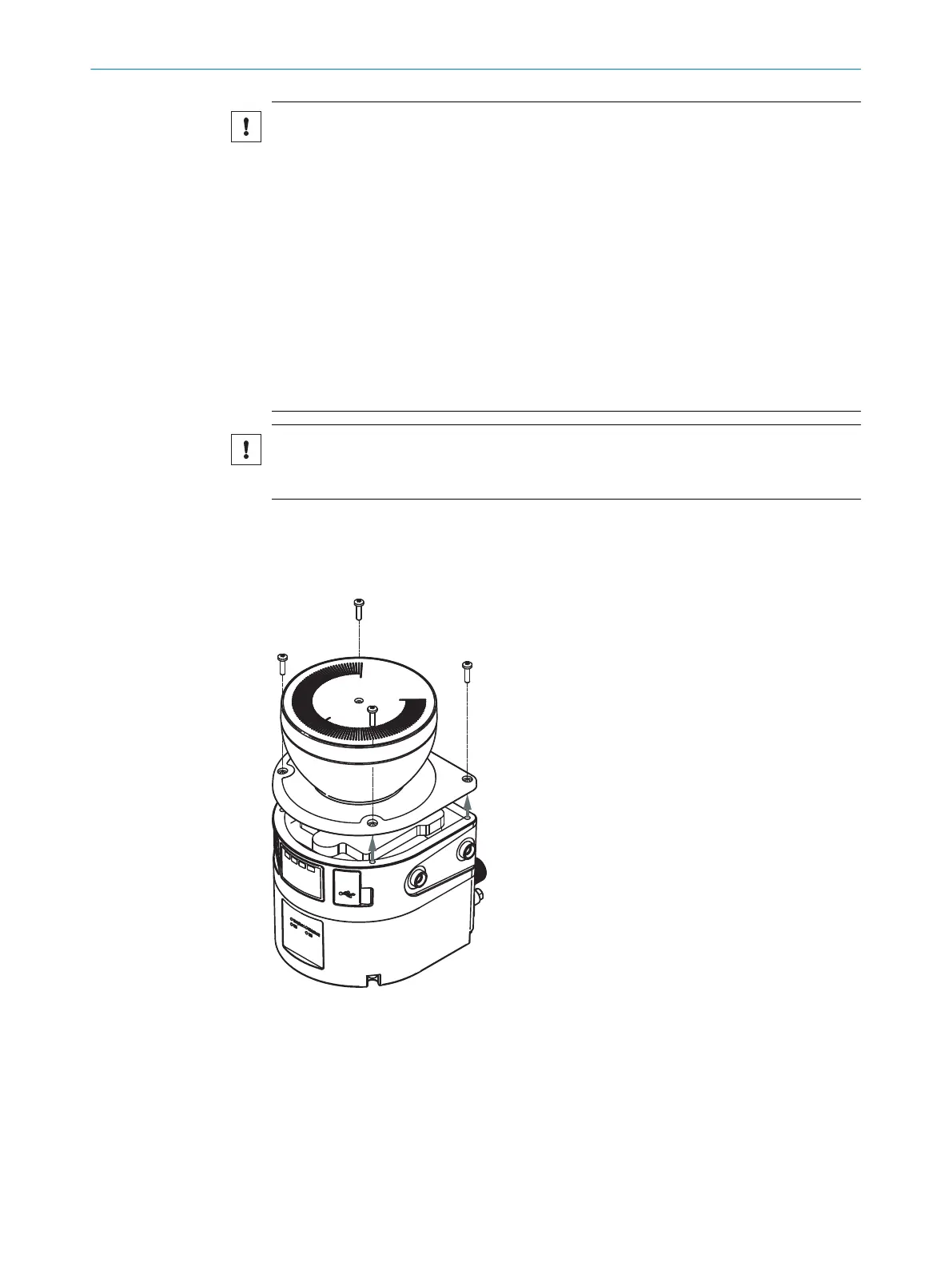

Figure 66: Fixing screws for the optics cover
1
Fixing screw
1. Make sure that the environment is clean and clear of fog, moisture, and dust.
2.
First clean the safety laser scanner from the outside, so that no foreign bodies
penetrate into the open device.
3. Unscrew the fixing screws for the optics cover.
4. Slowly and carefully detach the optics cover from the safety laser scanner. If the
seal of the optics cover sticks to the safety laser scanner, carefully detach the
optics cover using a screwdriver.
MAINTENANCE 10
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
111
Subject to change without notice
