The following mounting method has the advantage that both safety laser scanners can
be mount
ed at a similar height. Nonetheless, there is enough space between the scan
planes.
≥ 100 mm

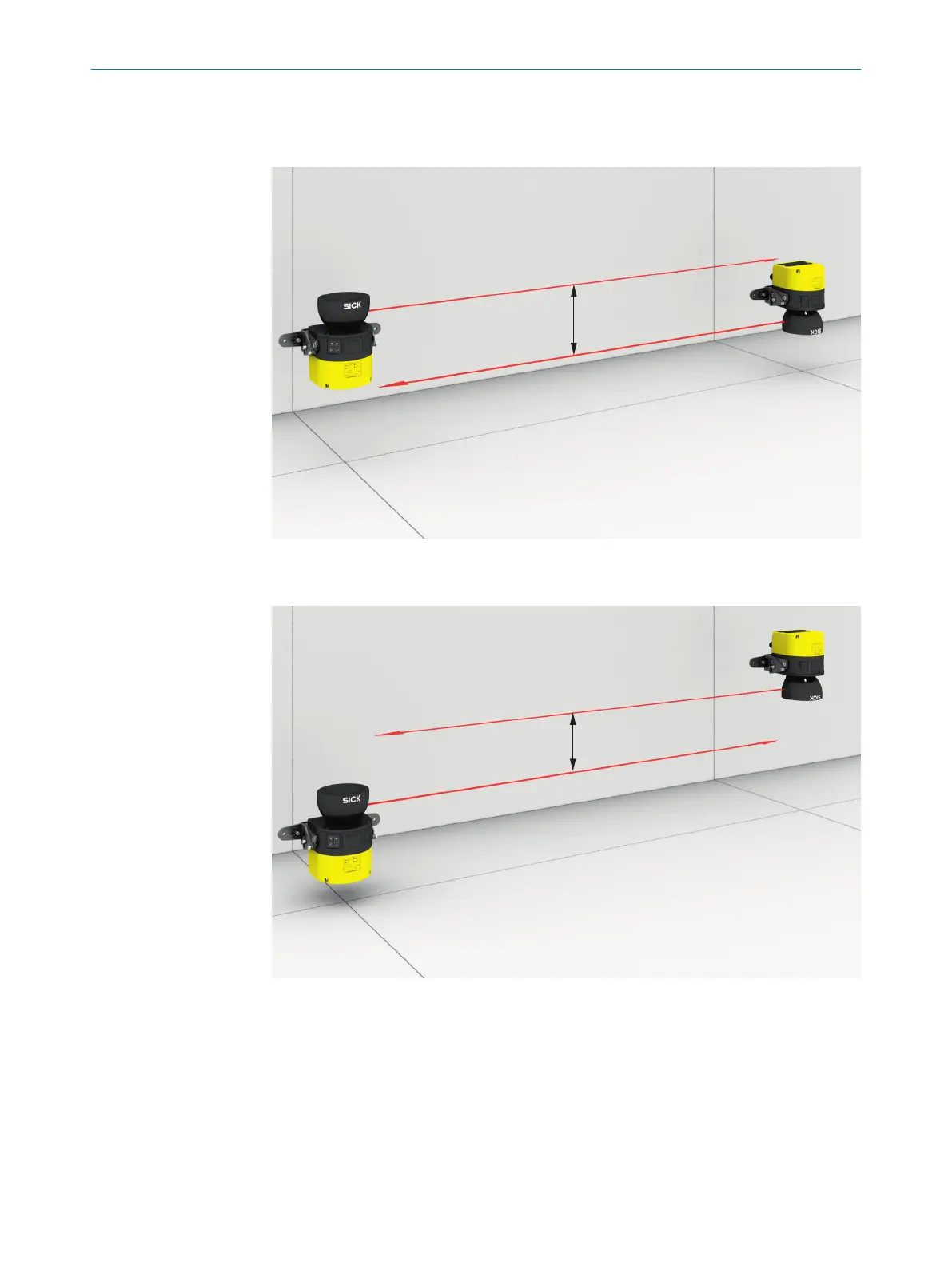

Figure 78: Mounting the upper safety laser scanner with the optics cover facing upward and
mounting the lower safety laser scanner with the optics cover facing downward
≥ 100 mm
Figure 79: Mounting the upper safety laser scanner with the optics cover facing downward and
mount
ing the lower safety laser scanner with the optics cover facing upward
Mount several safety laser scanners crosswise
If y
ou tilt opposite safety laser scanners with respect to one another, both safety laser
scanners must be tilted upward. (If mounted upside down, both safety laser scanners
must be tilted downward.)
In any event, ensure that the protective field is at the right height so that crawling
beneath and climbing over are prevented and so that the set resolution matches the
mounting height.
ANNEX 18
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
145
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
