11.4.1 Data recorder
Overview

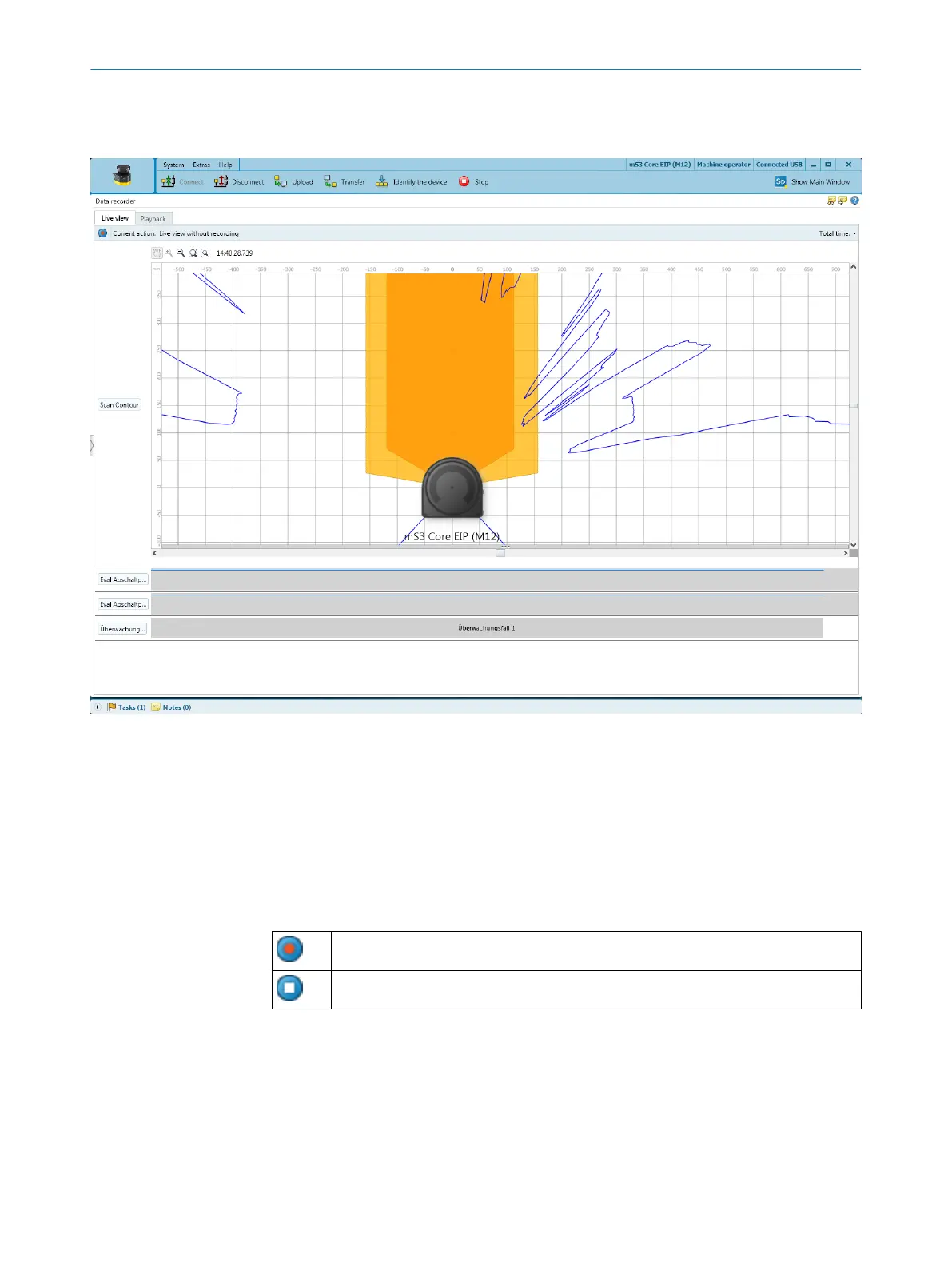

Figure 70: Data recorder
Y
ou can use the data recorder to record the device’s signals. Depending on the inter‐
face and the load on the interface, the measurement data may not be transmitted and
shown for every scan cycle.
The data is saved in a data recorder diagnostics file.
You can play the data recorder diagnostic file in the data recorder.
You can adjust the settings in the Safety Designer main window.
Table 16: Data recorder
Start recording
Stop recording
Typical applications
•
Chec
k spatial geometry
•
Check where a person can stay or when a person is detected
•
Check why safety outputs have switched
Prerequisites
•
Exis
ting connection between Safety Designer and device
•
Configuration in the project and configuration in the device are synchronized
11 T
ROUBLESHOOTING
120
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
