SICK microScan3 Core I/O AIDA User Manual

6.2.1 microScan3 Core
Table 3: System plug and connections: microScan3 Core
Safety laser scanner Suitable system plug Plug connector
microScan3 Core I/O AIDA
MICSX-ABHZZZZZ1 (part number: 2087958)
•
C
onnecting cable with M12 plug
connector, see page 61
•
Alternative FE connection, see
page 61
6.3 Pin assignment
You will find the pin assignment for the individual plug connectors in the following.
6.3.1 Connecting cable with M12 plug connector
Voltage is supplied and local outputs are connected via the connecting cable with a
5-pin, A
-coded M12 male connector.
2 1
4
3
5

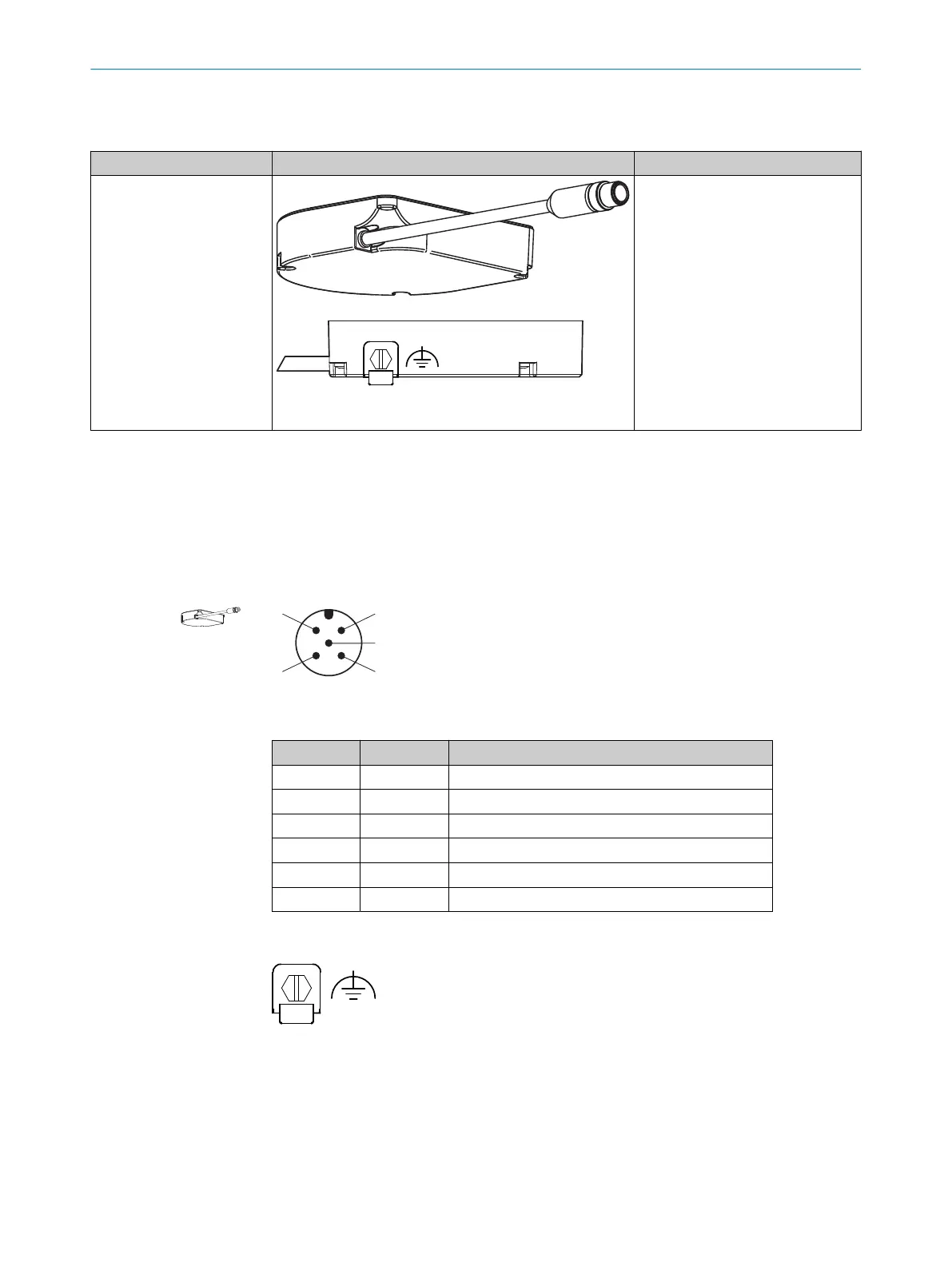

Figure 42: Pin assignment of the connecting cable (male connector, M12, 5-pin, A-coded)
Table 4: Pin assignment of the connecting cable with M12 plug connector
Pin Marking Function
1 +24 V DC Supply voltage (+24 V DC)
2 OSSD 1.B OSSD pair 1, OSSD B
3 0 V DC Supply voltage (0 V DC)
4 OSSD 1.A OSSD pair 1, OSSD A
5 FE Functional earth/shield
Thread FE Functional earth/shield
6.3.2 Alternative FE connection
Figure 43: Alternative FE connection
S
crew connection of the alternative FE connection
•
Screw: M5 × 12
•
Screw head: hexagon with slot, width across flats WAF 8
•
Tightening torque: 3.5 Nm to 5.0 Nm
ELECTRICAL INSTALLATION 6
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
61
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
