Approach
Y
ou have the following options:
b
Double-click on the Device tile.
Or:
b
Open t
he tile menu and choose Configure.
✓
The device window opens.
Complementary information
W
hen a device is configured offline for the first time, the device selection assistant
opens. This is where you select the type of device to be configured.
7.2.7 Networking
Information on the functionality and basic operation of the software and on the settings in the main window can
be f
ound in the operating instructions of the Safety Designer (part number 8018178).
7.3 Overview

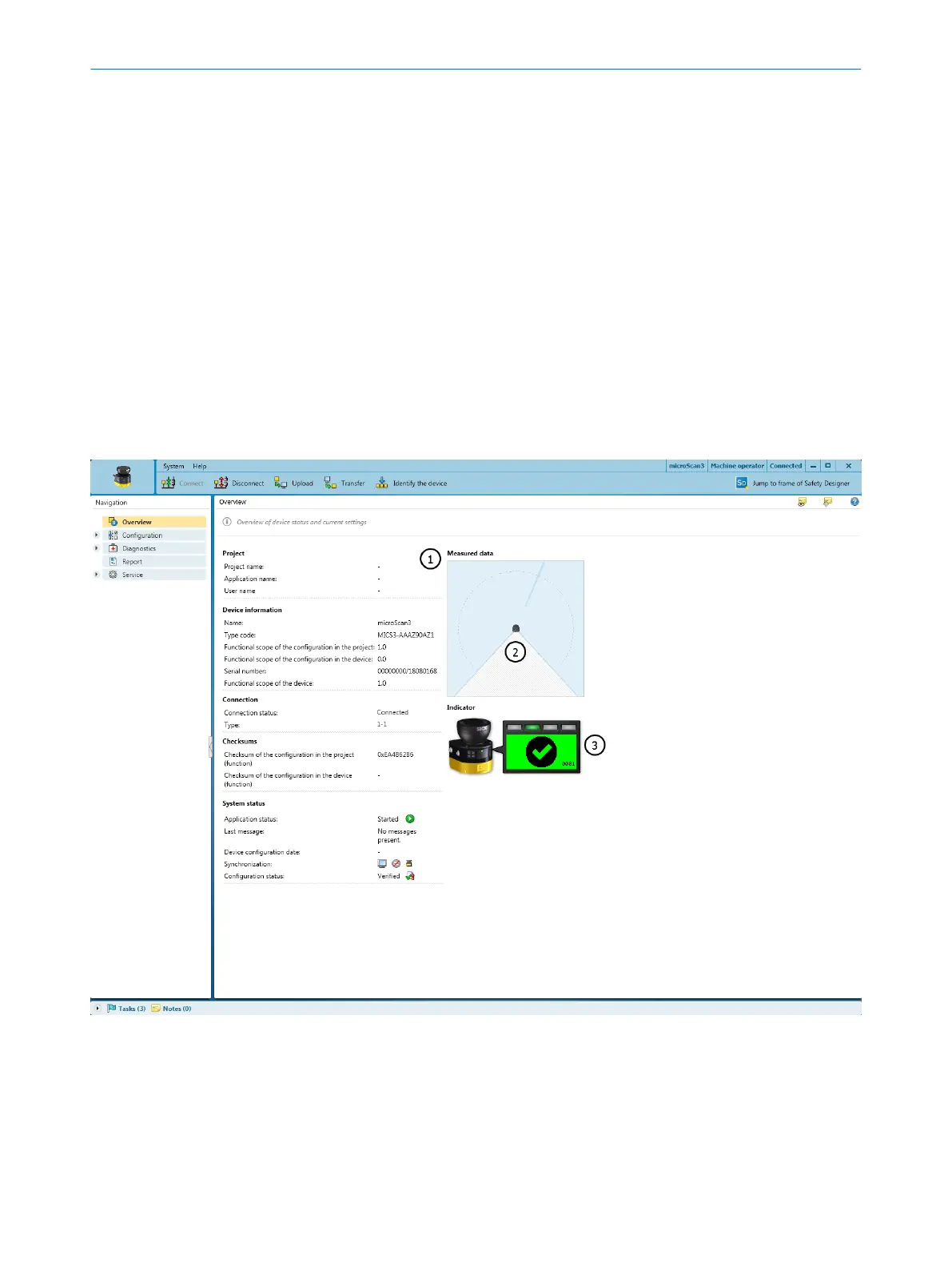

Figure 46: Overview
1
Device information
2
Current measurement data
3
Display with device status
The O
verview dialog box contains information about the safety laser scanner.
7 C
ONFIGURATION
68
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
