SICK microScan3 Core I/O AIDA User Manual

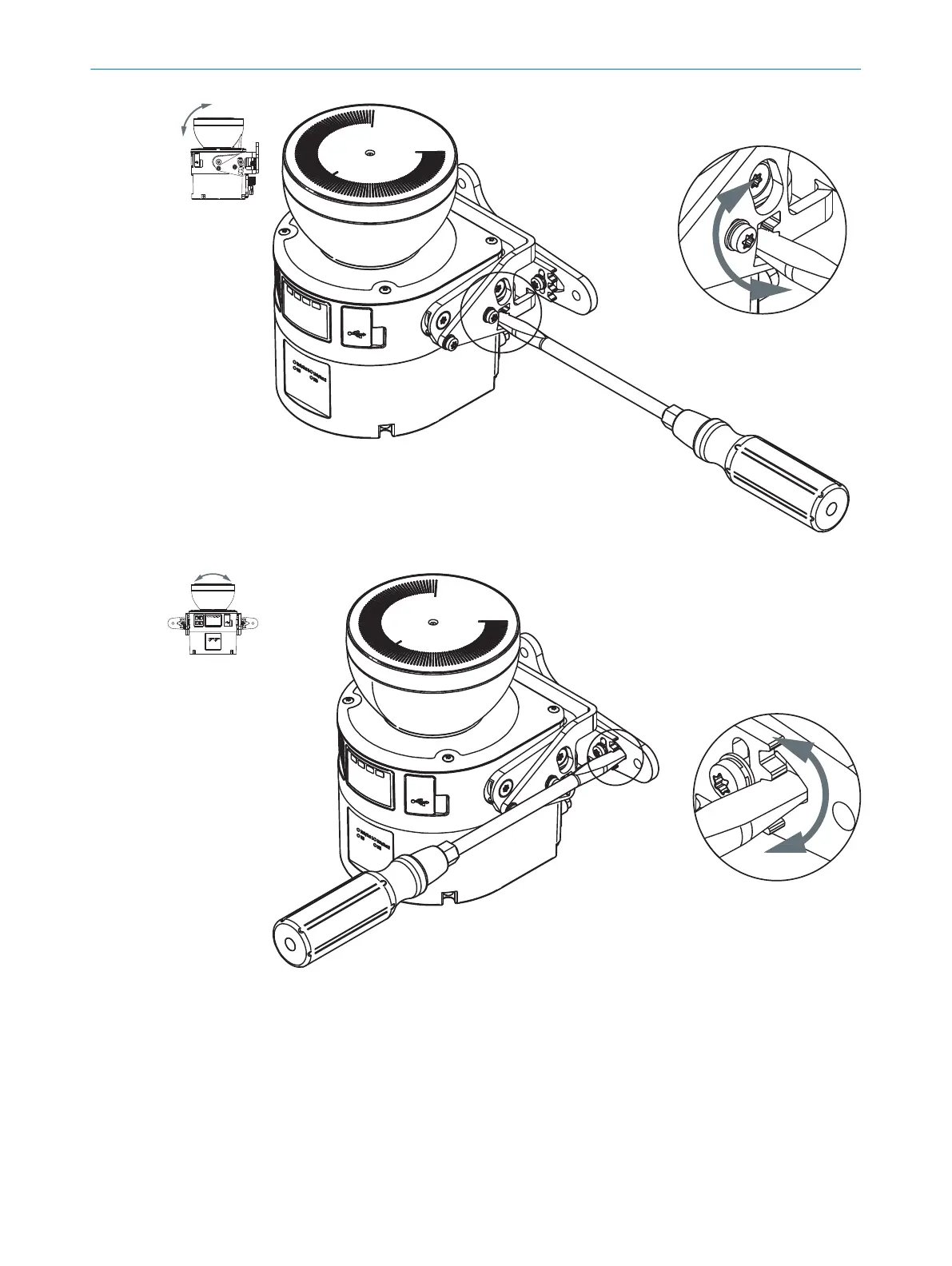

Figure 61: Alignment about the transverse axis
Figure 62: Alignment about the depth axis
b
Af
ter alignment, tighten the screws with the specified tightening torque.
8.3 Switching on
After switching on, the safety laser scanner performs various internal tests. The OFF
LED illuminates continually. The ON LED is off.
The start procedure lasts approx. 20 seconds.
8 C
OMMISSIONING
104
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
