If t
he result is C ≥ 850 mm, then use the calculated value as supplement C.
✓
If the result is C < 850 mm, then use C = 850 mm (this value corresponds to an
arm's length and is valid as a minimum supplement to protect against reaching
over).
4.3.5.3 Height of the scan plane
Overview
If y
ou choose a resolution of 70 mm for hazardous area protection, it is not possible to
detect a human leg under certain circumstances. This is because a beam does not hit
the leg. Rather, the beams pass by the sides of the ankle (see figure 22, page 32). If
you mount the safety laser scanner at a height of at least 300 mm (height of the scan
plane), the scan plane is at calf height and the leg is detected even at a resolution of
70 mm (see figure 23, page 33).
D
H

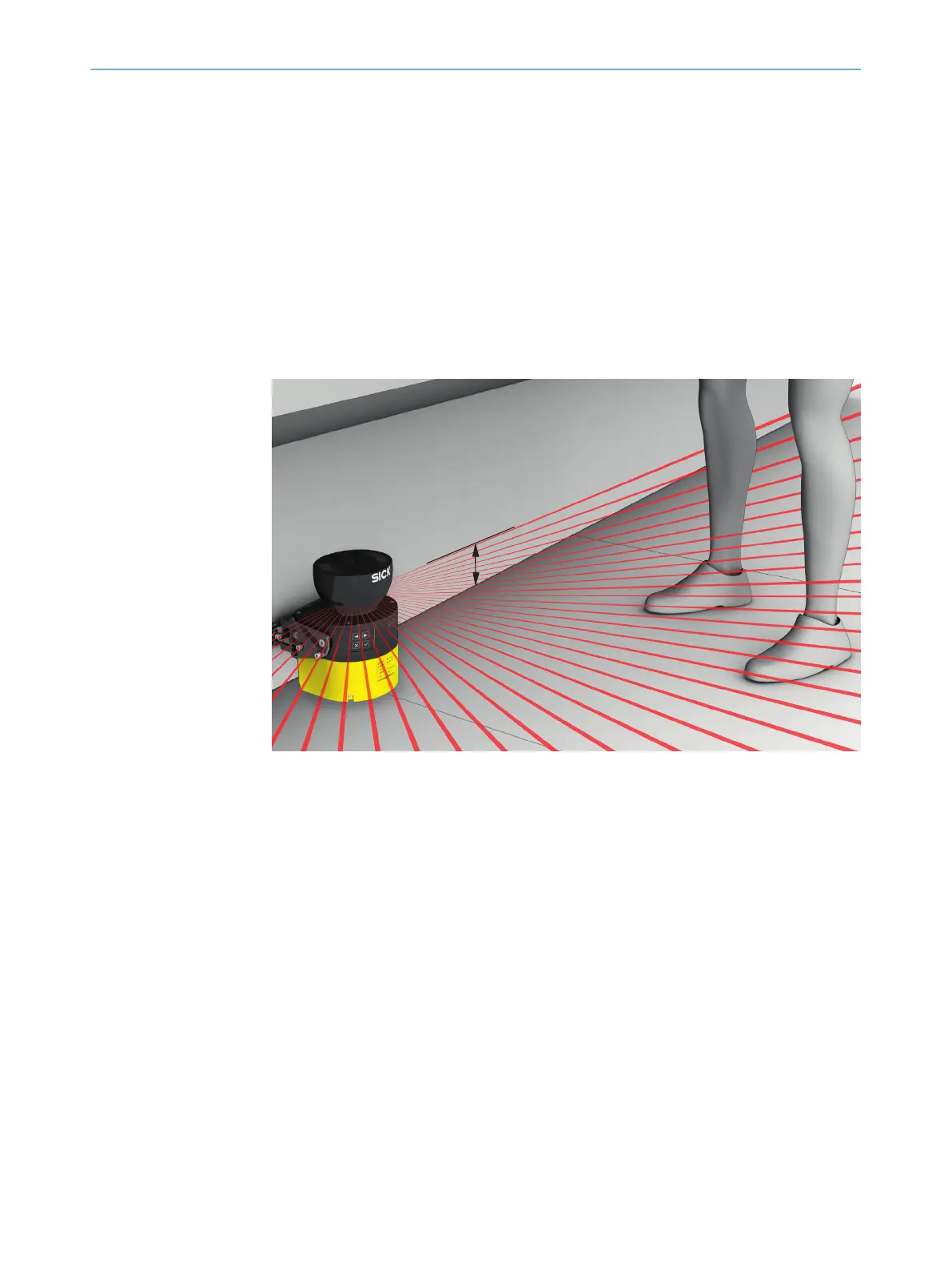

Figure 22: Scan plane at ankle height
4 P
ROJECT PLANNING
32
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
