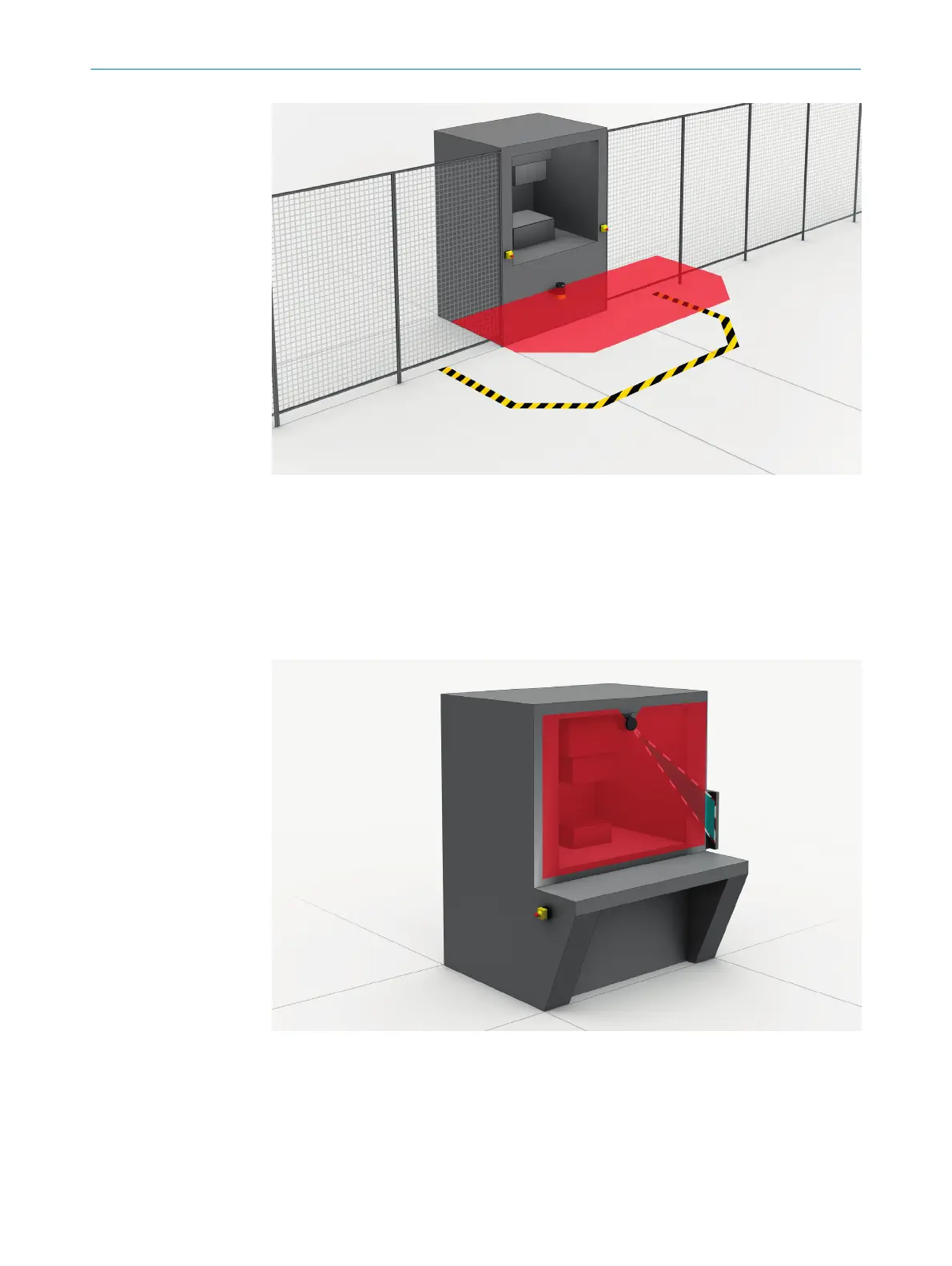

Figure 7: Hazardous area protection: detection of the presence of a person in the hazardous
ar
ea
Hazardous point protection
In hazardous point protection, the approach is detected very close to the hazardous
point.
The advantage of this type of protective device is that it is possible to have a short
minimum distance and the operator can work more ergonomically.
Figure 8: Hazardous point protection: Hand detection
Access protection
In ac
cess protection, people are detected if their whole body passes through the
protective field.
3 P
RODUCT DESCRIPTION
18
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
