SICK microScan3 Core I/O AIDA User Manual

Resolution Scan cycle time 40 ms Scan cycle time 30 ms
40 mm 3.00 m 2.30 m
30 mm 2.30 m 1.70 m
Table 32: Protective field range (devices with a max. protective field range of 9.0 m)
Resolution 50 ms scan cycle time 40 ms scan cycle time
≥ 150 mm 9.00 m 9.00 m
70 mm 9.00 m 7.00 m
60 mm 8.00 m 6.00 m
50 mm 7.00 m 5.00 m
40 mm 5.00 m 4.00 m
30 mm 4.50 m 3.00 m
Scanning range of the reference contour field
T
he effective scanning range of the reference contour field is the same as the protec‐
tive field range.
Scanning range of the contour detection field
T
he effective scanning range of the contour detection field is the same as the protective
field range.

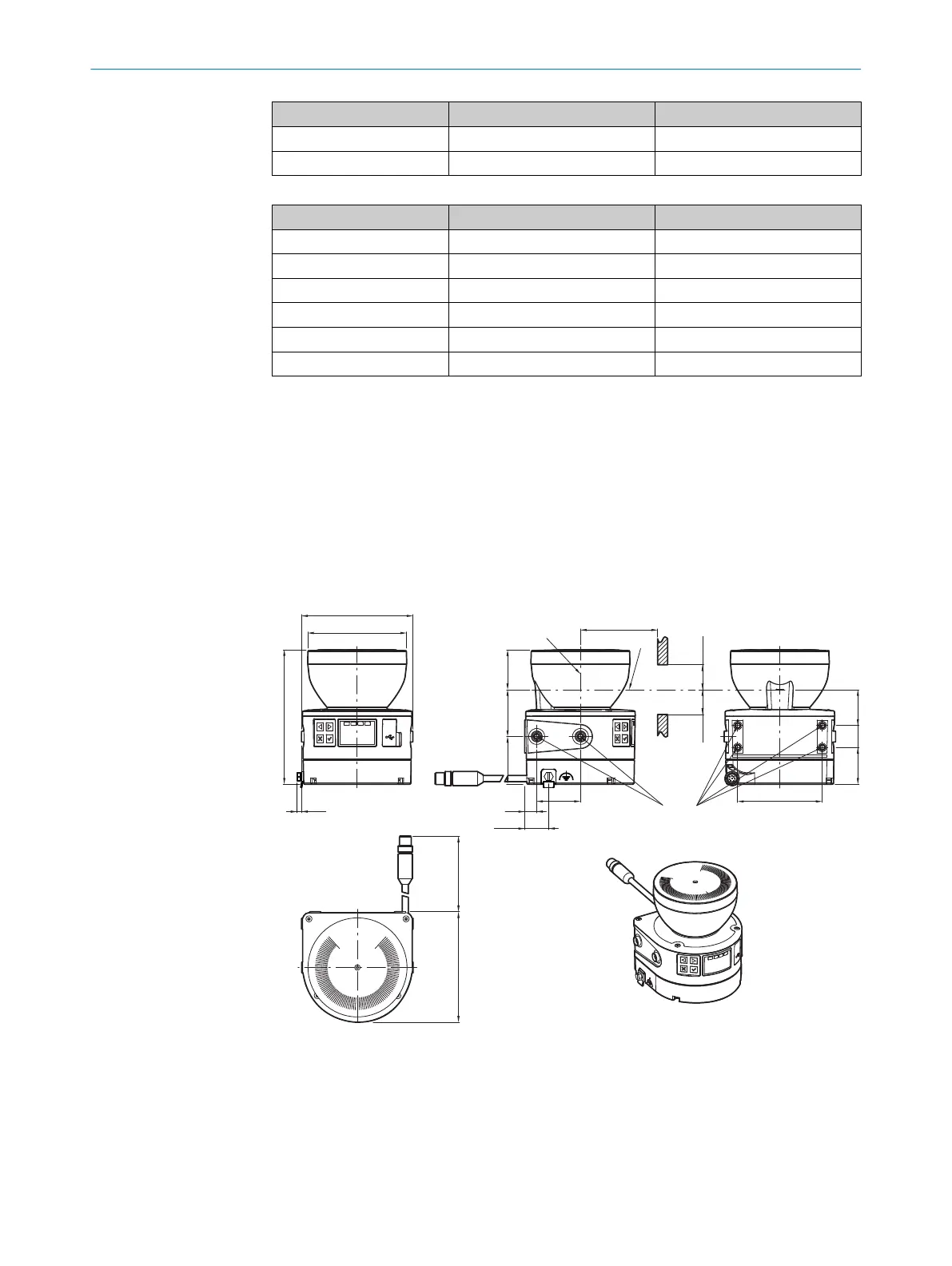

13.7 Dimensional drawings
1
2
112
Ø 99,5
≤ 200
M5×7,5
85
44
12
135,1
111,1
300
47,147,9 40,1
≥ 25
≥ 25
22 36,136,9
3
4,4
24,5
Figure 75: Dimensional drawing
All dimensions in mm.
1
Mirror rotational axis
2
Scan plane
3
Required viewing slit
13 TECHNICAL DATA
134
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice
