SICK microScan3 Core I/O AIDA User Manual

b
Clic
k on Connect.
✓
Safety Designer searches for connected devices, with which it can establish a
connection.
Configuring a device offline (device not connected to computer)
If t
he device is not connected to the computer, select it from the device catalog.
You will then configure the device offline. Diagnostics functions are not available.
You can connect the computer to the device later, assign a device to the device tile, and
transfer the configuration to the device.
7.2.2.1 Saving verified configuration
When you save a project, information is saved for each device as to whether the
conf
iguration is verified. When you open a project file, each device tile and the Overview
dialog box of the device window show whether the configuration is verified.
You can transfer a verified configuration to the same or an identical device again.
7.2.3 User interface

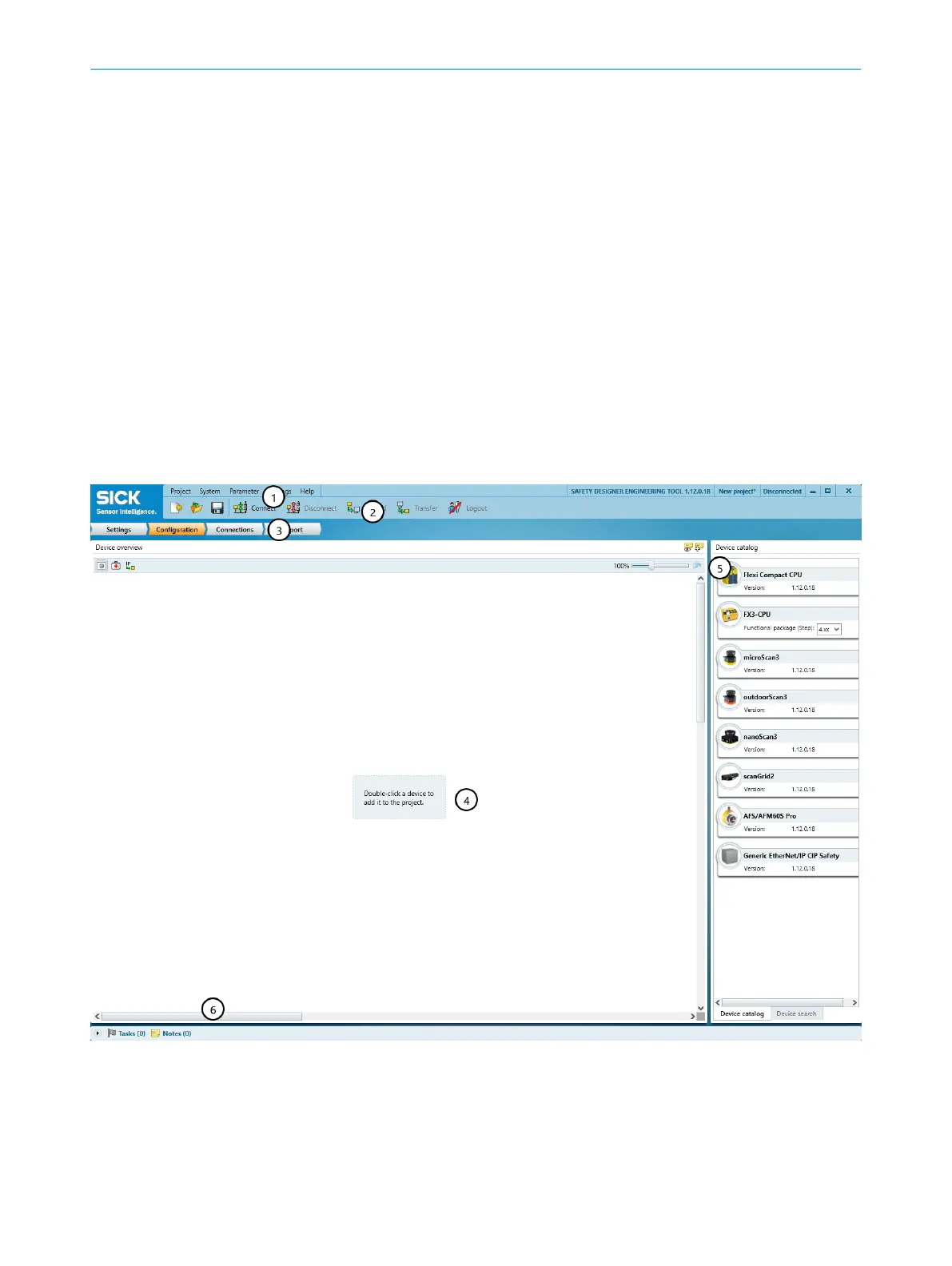

Figure 44: Software controls
1
Menu bar
2
Toolbar
3
Main navigation
4
Working range
5
Device catalog
7 CONFIGURATION
64
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
