SICK microScan3 Core I/O AIDA User Manual

Complementary information
C
onfiguration:
•
Name
If a number of devices are used in an application or in a project, a unique device
name he
lps to tell the individual devices apart.
•
Chec
ksums
A checksum is used as a unique identification for a configuration. Using the
c
hecksum, it is possible to work out whether a setup was changed or whether two
devices have the same configuration.
The checksum of the configuration in the project may not match the checksum
in the device, for example if a field geometry has been modified, but not yet
transmitted to the device.
7.5 Identification
Overview

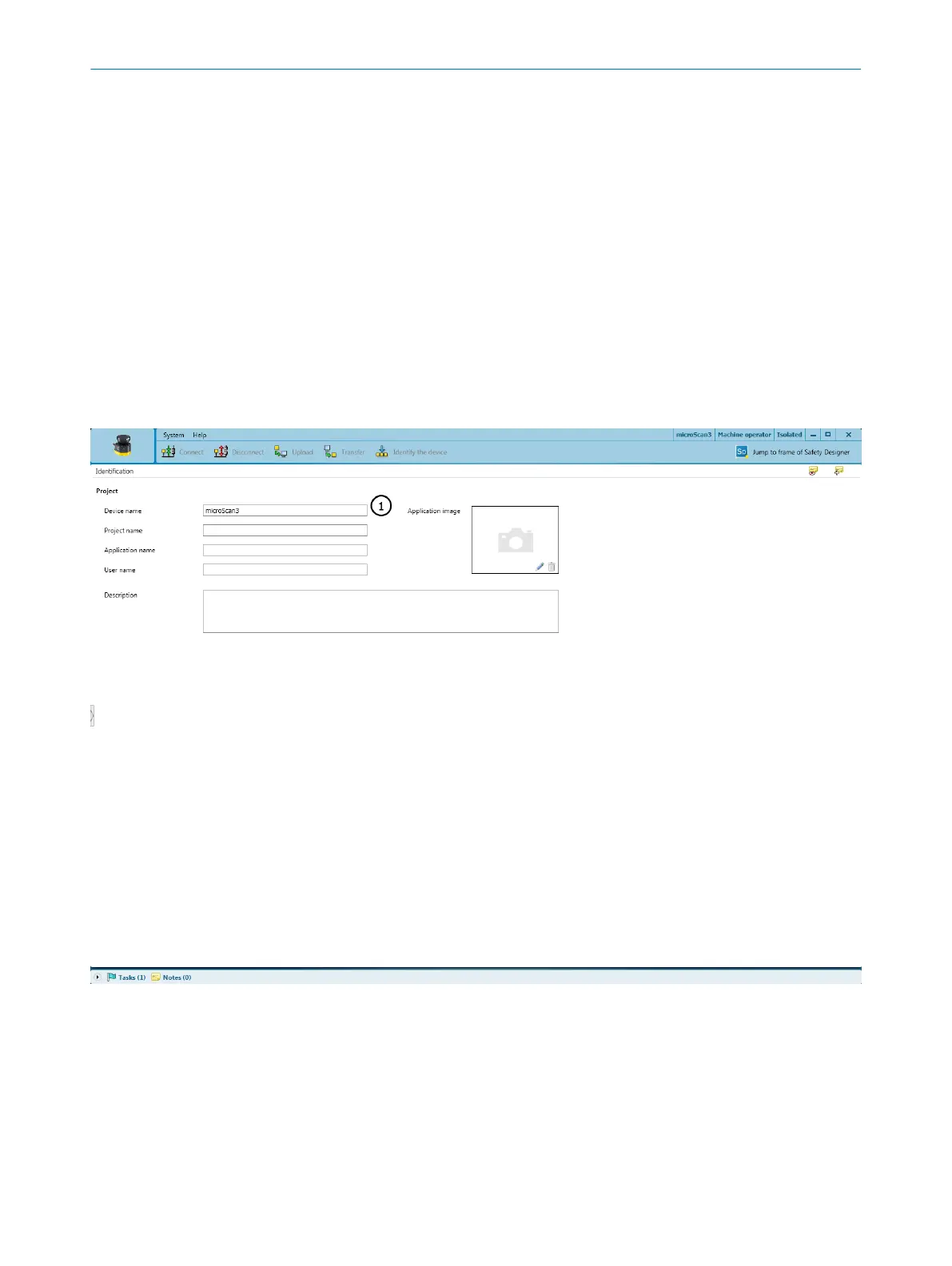

Figure 48: Identification
1
Parameters for the project and the device
In the Ident
ification dialog box, you can optionally enter names and information to
uniquely identify the application, project, and devices.
Device name
If a number of safety laser scanners are used in an application or in a project, a unique
device name helps to tell the individual devices apart.
CONFIGURATION 7
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
71
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
