SICK microScan3 Core I/O AIDA User Manual

FE on alternative FE connection
T
he safety laser scanner can be integrated via an AIDA-compliant fieldbus module. In
the example, the functional earth is connected to the alternative FE connection.
microScan3
Core I/O AIDA
+24 V DC
OSSD 1.B
OSSD 1.A
0 V DC
FE
FE
FEFE 0 V DC
+24 V DC
+24 V DC
+24 V DC
In0
F
E
0 V DC
In1
FE 0 V DC
AIDA
Field bus module

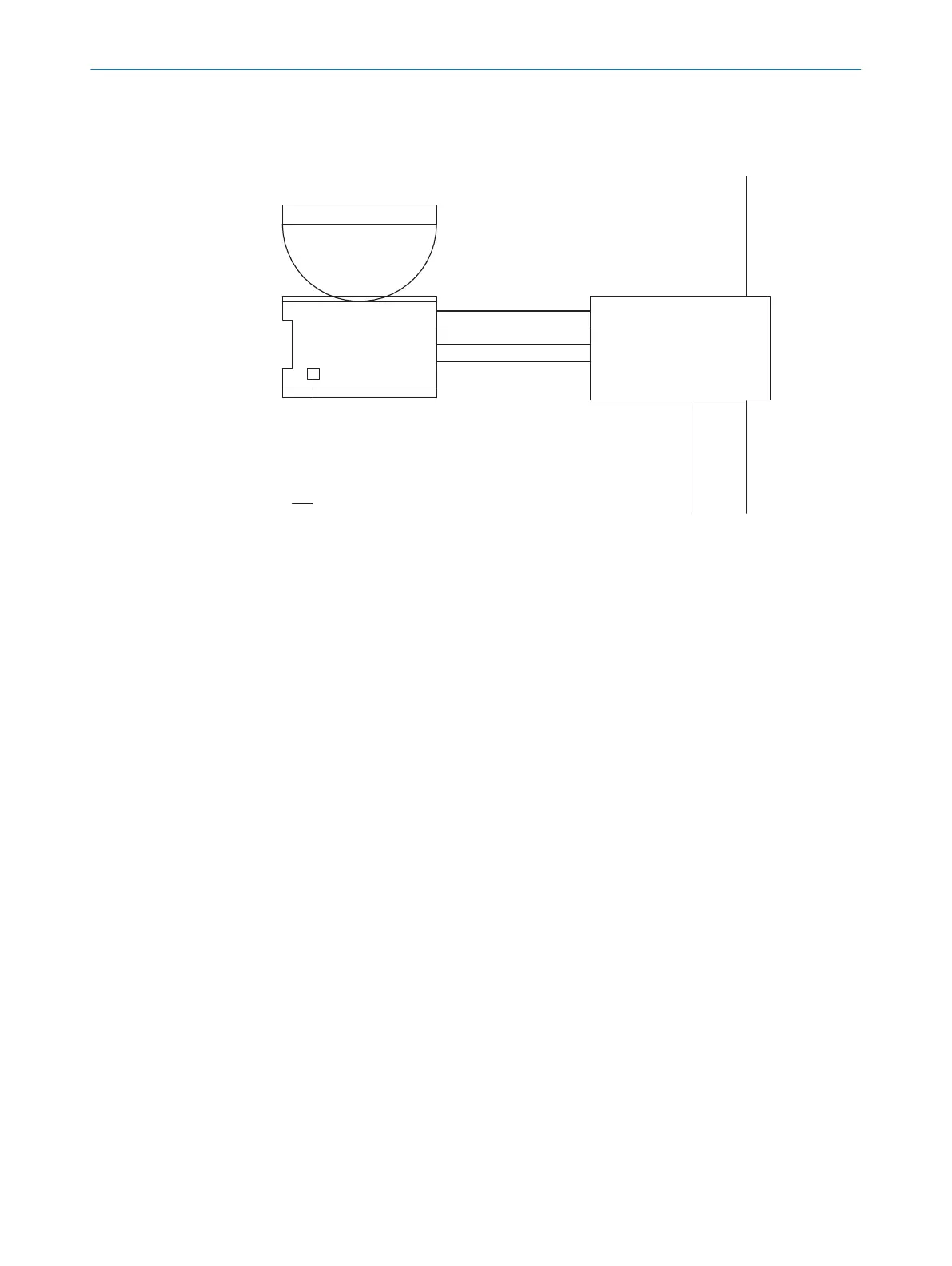

Figure 36: Connection diagram with FE on alternative FE connection
4.5 Testing plan
The protective device must be tested by appropriately qualified safety personnel when
commis
sioning, after modifications and at regular intervals.
The manufacturer and user must define the type and frequency of the thorough checks
of the machine on the basis of the application conditions and the risk assessment.
Determination of the thorough checks must be documented in a traceable manner.
The following tests must be planned:
•
Before commissioning the machine and after making changes, you must check
whether the safety functions are fulfilling their planned purpose and whether
persons are being adequately protected.
•
The regular tests of the safety laser scanner must fulfill certain minimum require‐
ments.
A test object is required for some thorough checks. An optically opaque cylinder with
a black surface can be used as a suitable test object. The diameter must match the
configured resolution.
4.5.1 Planning the thorough check during commissioning and in certain situations
Minimum requirements
T
he protective device and its application must be thoroughly checked in the following
situations:
•
Before commissioning
•
After changes to the configuration or the safety function
•
After changes to the mounting, the alignment or the electrical connection
•
After exceptional events, such as after manipulation has been detected, after
modification of the machine, or after replacing components
The thorough check ensures the following:
•
Compliance with all relevant regulations and effectiveness of the protective device
for all of the machine’s operating modes. This includes the following points:
PROJECT PLANNING 4
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
51
Subject to change without notice
