7.9.8 Enable propose field
Overview

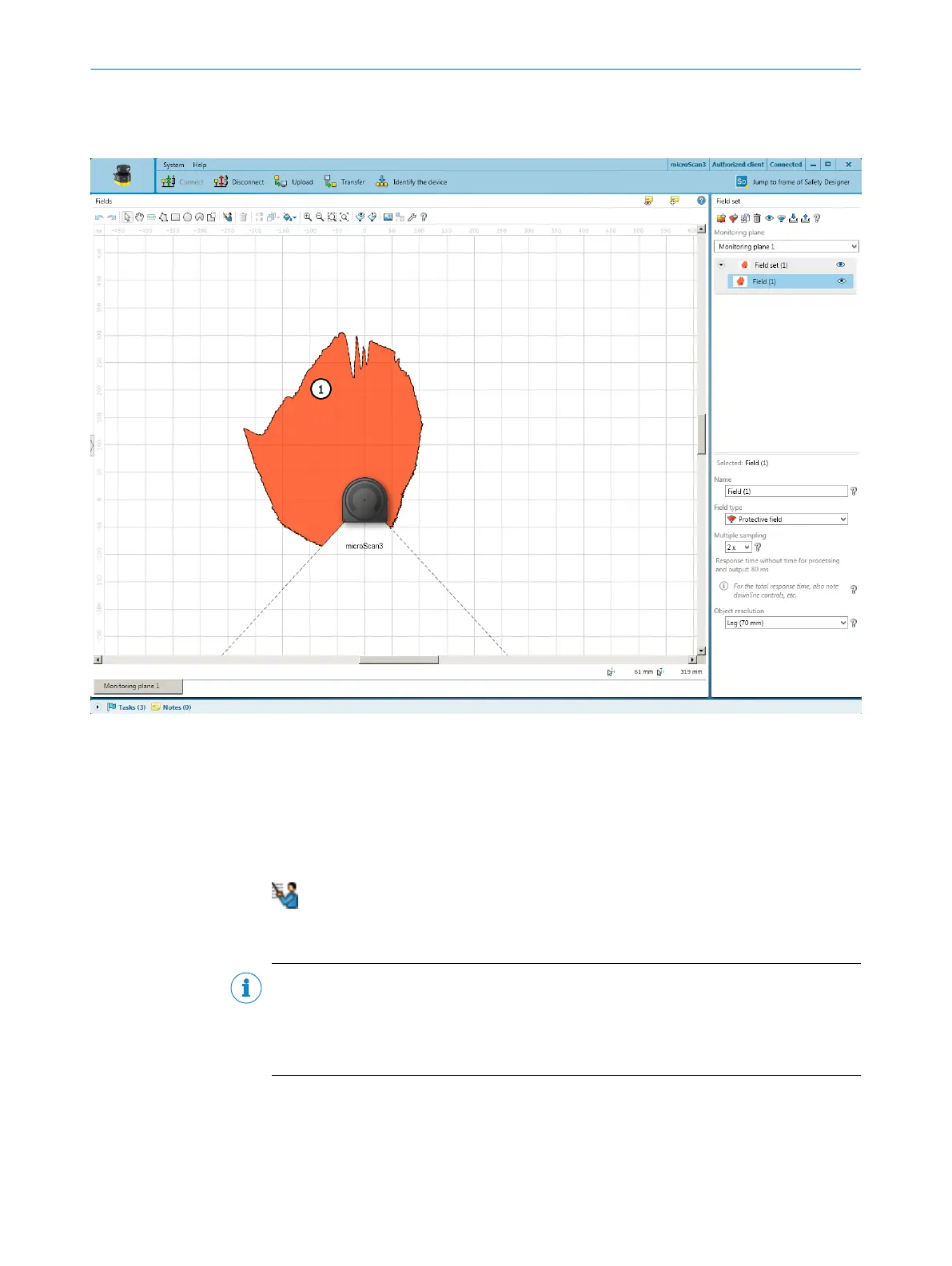

Figure 56: Enable propose field
1
Proposal for a protective field
You can have a protective field suggested by Safety Designer.
F
or this purpose, the safety laser scanner scans the visible surrounding contour several
times. Based on the data obtained, the Safety Designer suggests the contour and size
of the field.
You can use the Su
ggest field tool to create a field.
Important information
NOTE
If y
ou propose a protective field, the proposal does not replace calculation of the
minimum distance. You must calculate the minimum distance and check whether the
size of the proposed protective field is sufficient. You must also take into account the
measurement tolerances of the safety laser scanner.
Existing field geometries
•
D
elete existing shapes: The field is redrawn according to the surrounding contour.
•
Refine existing shapes: The existing field is adapted to the surrounding contour.
7 C
ONFIGURATION
88
O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA 8017784/1ELL/2022-01-21 | SICK
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
