SICK microScan3 Core I/O AIDA User Manual

The safety laser scanner forms a protective field using the invisible laser beams. This
pr
otective field protects the hazardous area and enables hazardous point protection,
access protection or hazardous area protection. As soon as an object is situated in the
protective field, the safety laser scanner signals the detection by means of a signal
change at the safety output (OSSD for example). The machine or its control must safely
analyze the signals (for example using a safe control or safety relays) and stop the
dangerous state.
The safety laser scanner operates on the principle of time-of-flight measurement. It
emits light pulses in regular, very short intervals. If the light strikes an object, it is
reflected. The safety laser scanner receives the reflected light. The safety laser scanner
calculates the distance to the object based on the time interval between the moment of
transmission and moment of receipt (∆t).


t
t
∆t



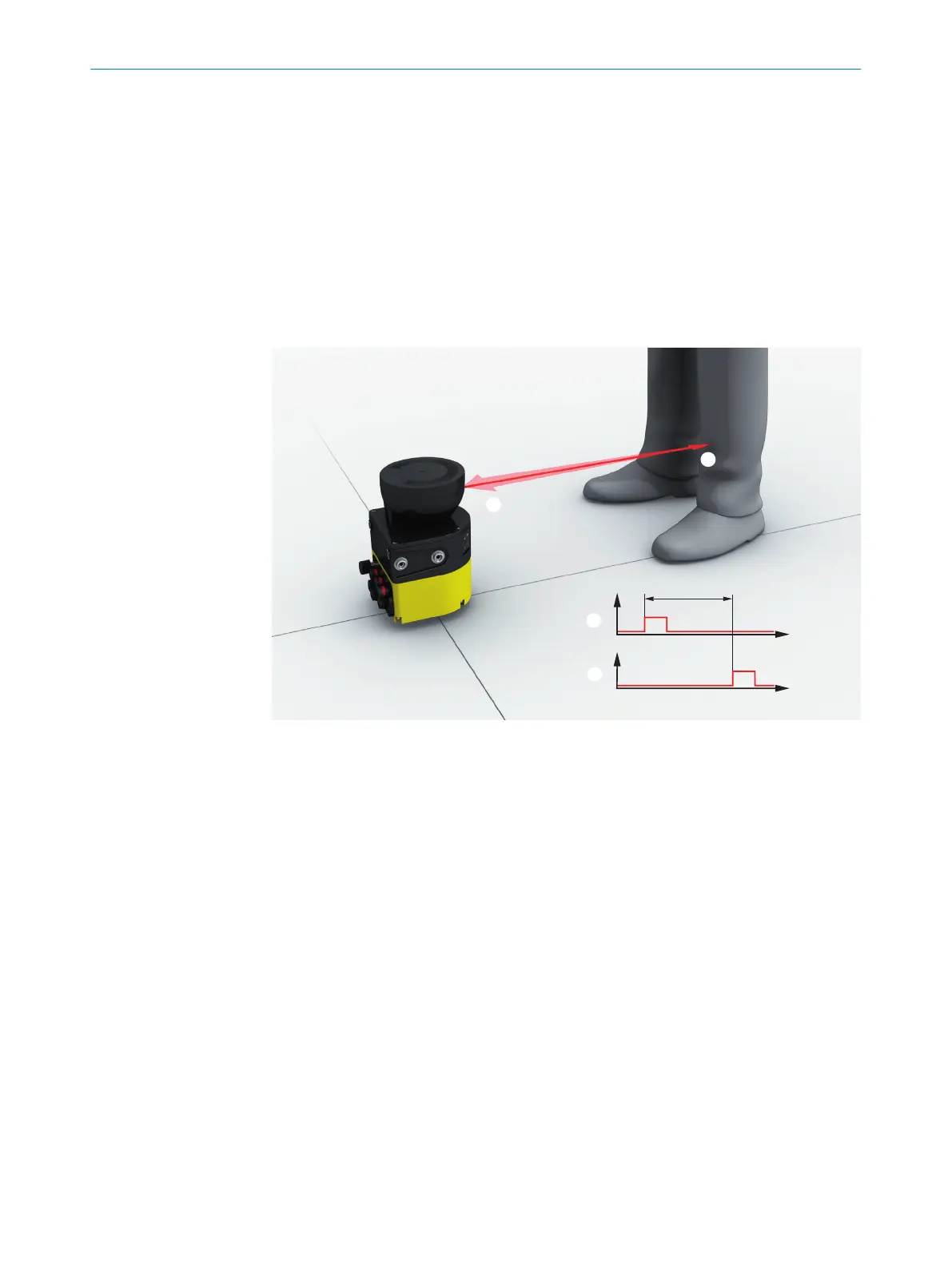

Figure 3: Principle of time-of-flight measurement
1
Transmitted light pulse
2
Reflected light pulse
A rotating mirror is situated in the safety laser scanner. The mirror deflects the light
pulse
s so that they scan a fan-shaped area.
PRODUCT DESCRIPTION 3
8017784/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Core I/O AIDA
13
Subject to change without notice

SICK microScan3 Core I/O AIDA Specifications

General

Scanning angle	275°
Protection class	IP65
Configuration method	SOPAS ET
Enclosure rating	IP65
Dimensions	102 mm x 152 mm x 106 mm
Scanning range	5.5 m
Protective field range	5.5 m
Number of monitoring cases	128
Supply voltage	24 V DC
Performance level	PL e (ISO 13849-1)
Warning field range	5.5 m
Resolution for safety field	30 mm / 40 mm / 50 mm / 70 mm
Connection type	M12
Protective field resolution	30, 40, 50, 70 mm
Number of protective fields	128
