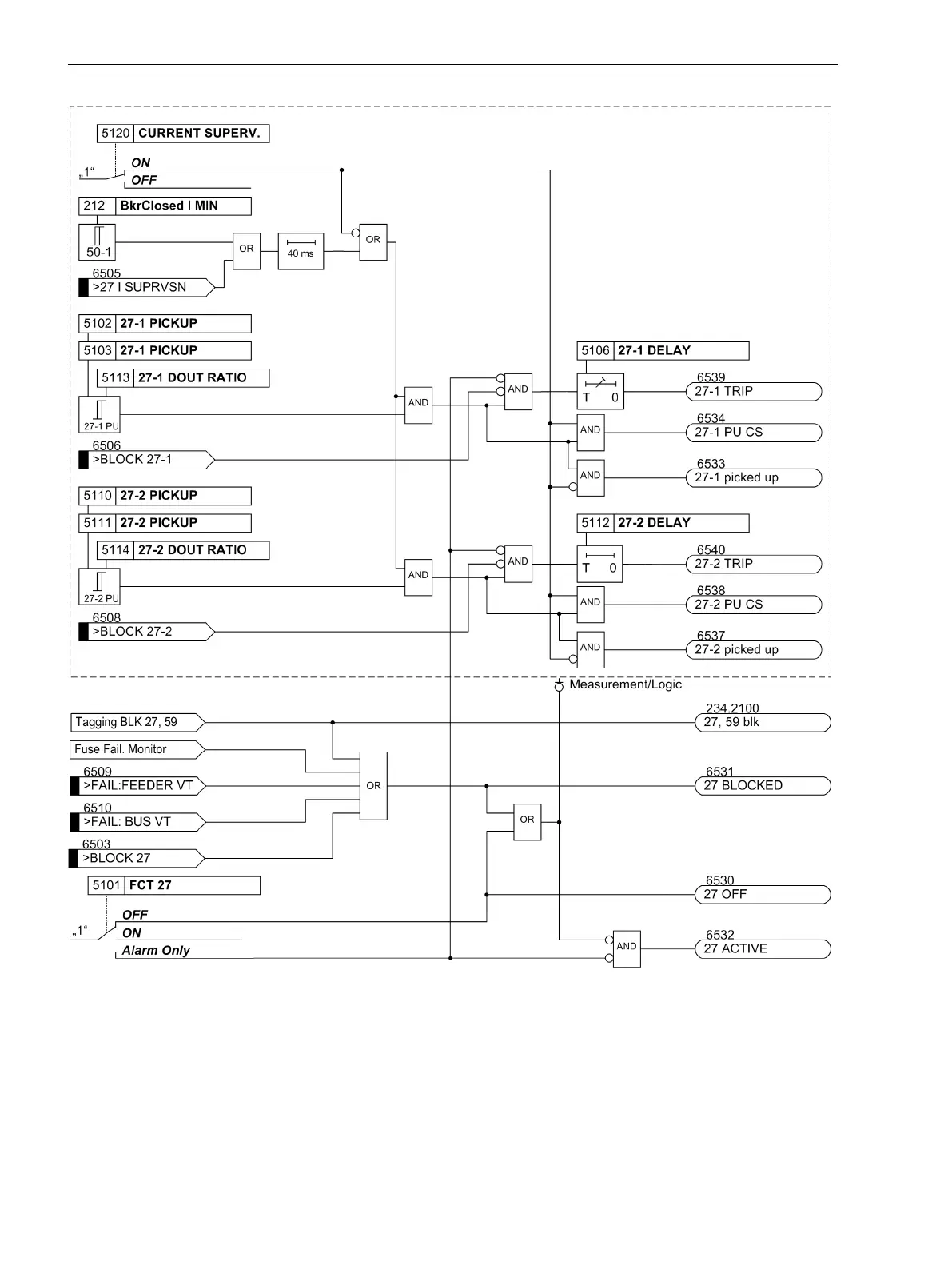

Figure 2-51
Logic diagram of the undervoltage protection
Displacement Voltage Protection
General
The displacement voltage protection has 3 elements. The elements V0> and V0>> work independently. The
V0p element allows you to implement a dependent displacement voltage protection.
2.6.4
Functions
2.6 Voltage Protection 27, 59
192 SIPROTEC Compact, 7SC80, Manual
E50417-G1140-C486-A8, Edition 07.2017
