7SC80 — Housing for cabinet flush mounting and cabinet surface
mounting
The binary inputs of the 7SC80 are unipolar. Therefore, mind the polarity of the binary inputs.
7SC8021*
[kl-uebers-7sc80-1, 1, en_US]
Figure B-1

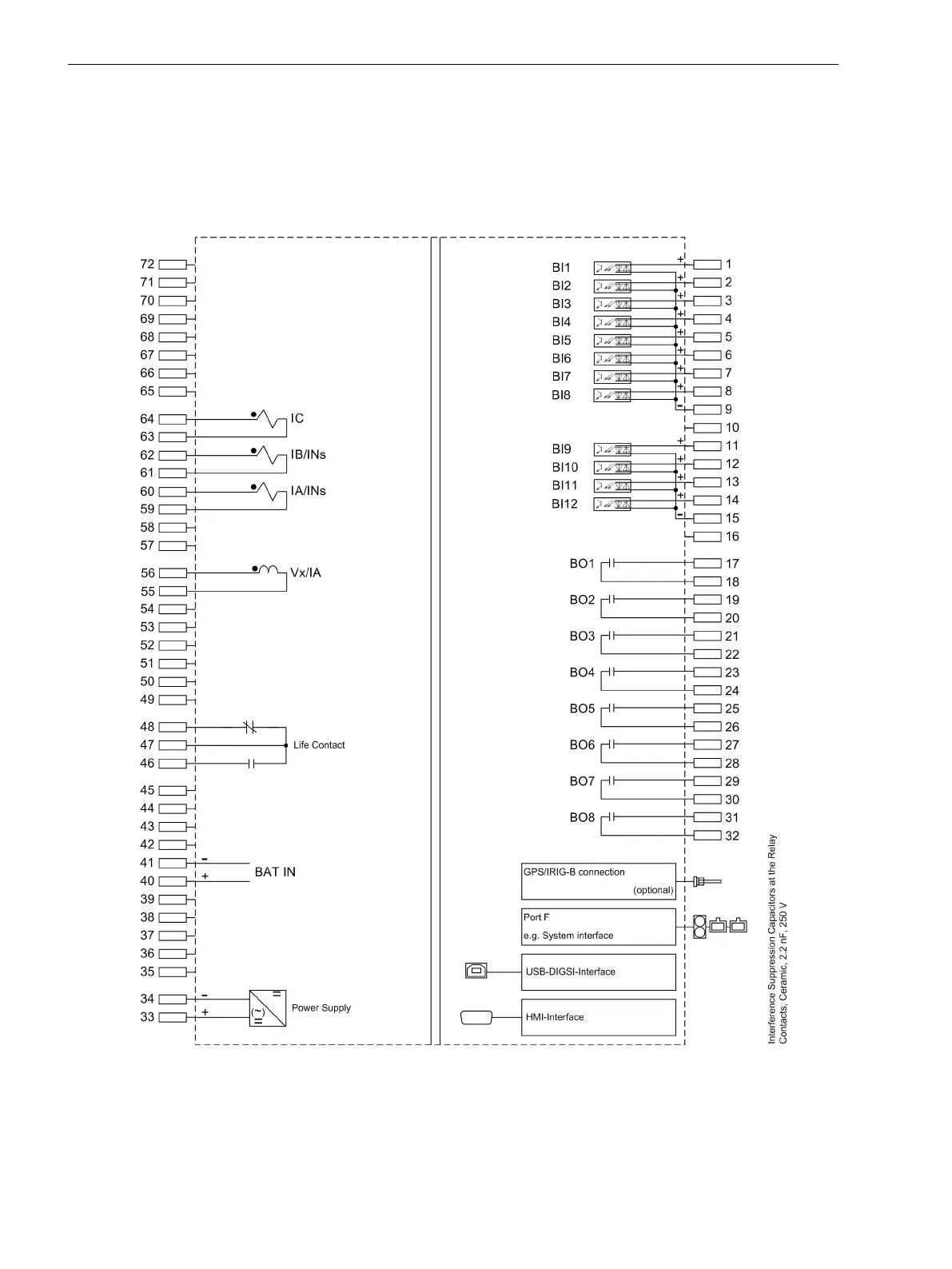

Overview Diagram 7SC8021*
B.1
Terminal Assignments
B.1 7SC80 — Housing for cabinet flush mounting and cabinet surface mounting
592 SIPROTEC Compact, 7SC80, Manual
E50417-G1140-C486-A8, Edition 07.2017
