Device, General Settings
To assure a correct functioning of the device, some general information is required, e.g. the form in which
messages on power system faults are to be output.
General Device Functions
Command-Dependent Messages "No Trip – No Flag"
The storage of indications routed to local LEDs and the provision of spontaneous indications can be made
dependent on whether the device has issued a trip signal. These pieces of information are not output if one or
more protection functions have picked up during a fault, but the 7SC80 device has not tripped, because the
fault was cleared by a different device (on a different line, for example). These pieces of information are then
limited to faults on the line to be protected.

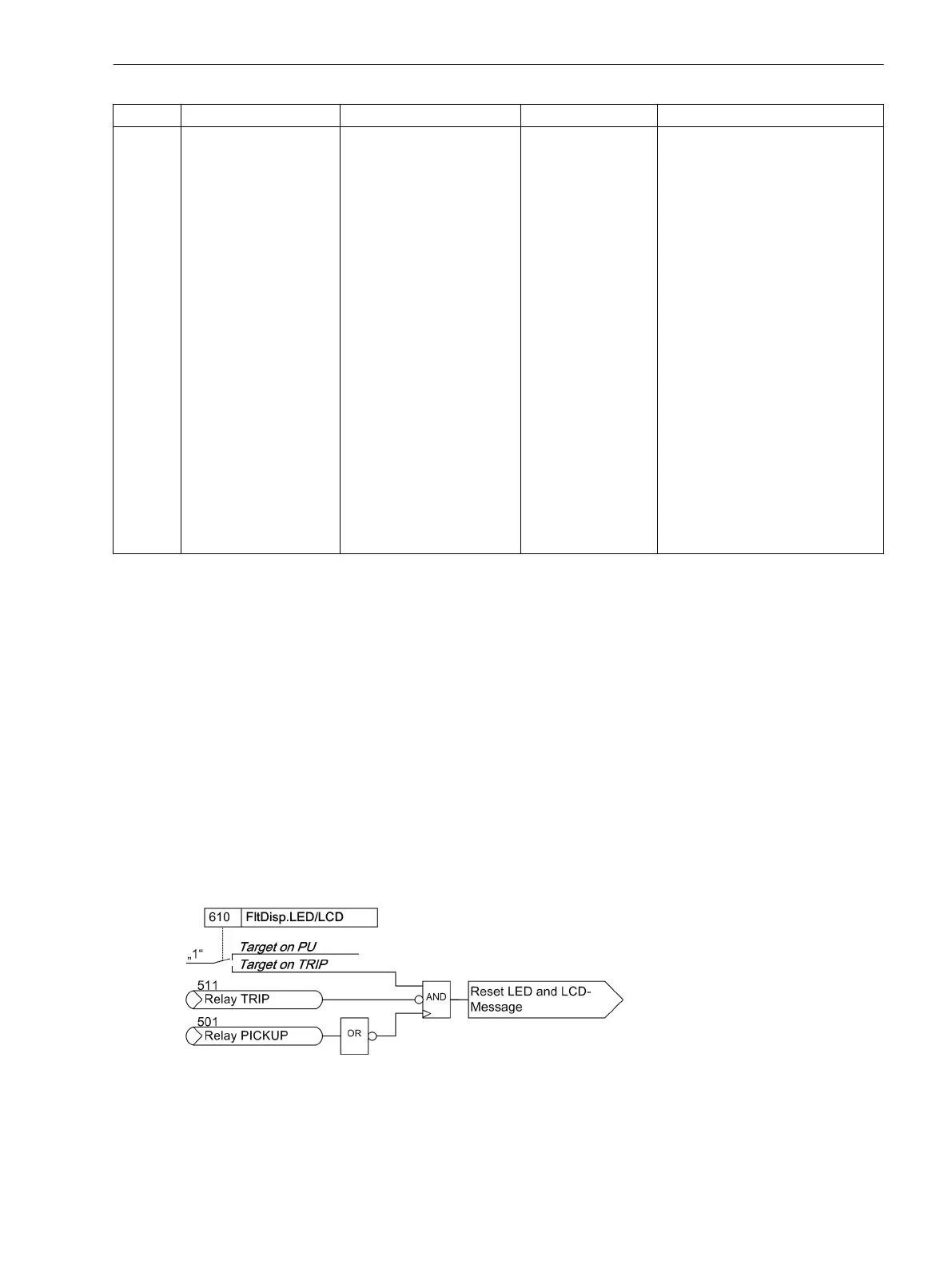

The following figure illustrates the generation of the reset command for stored indications. The instant the
device drops out, the presetting of parameter 610 FltDisp.LED/LCD decides whether the new fault
remains stored or is reset.
[ruecksetzbefehl-fuer-n-speicher-led-lcd-meld-260602-kn, 1, en_US]
Figure 2-1 Creation of the reset command for the latched LED and LCD messages
