[lo_7sc80-sync-anschl, 1, en_US]

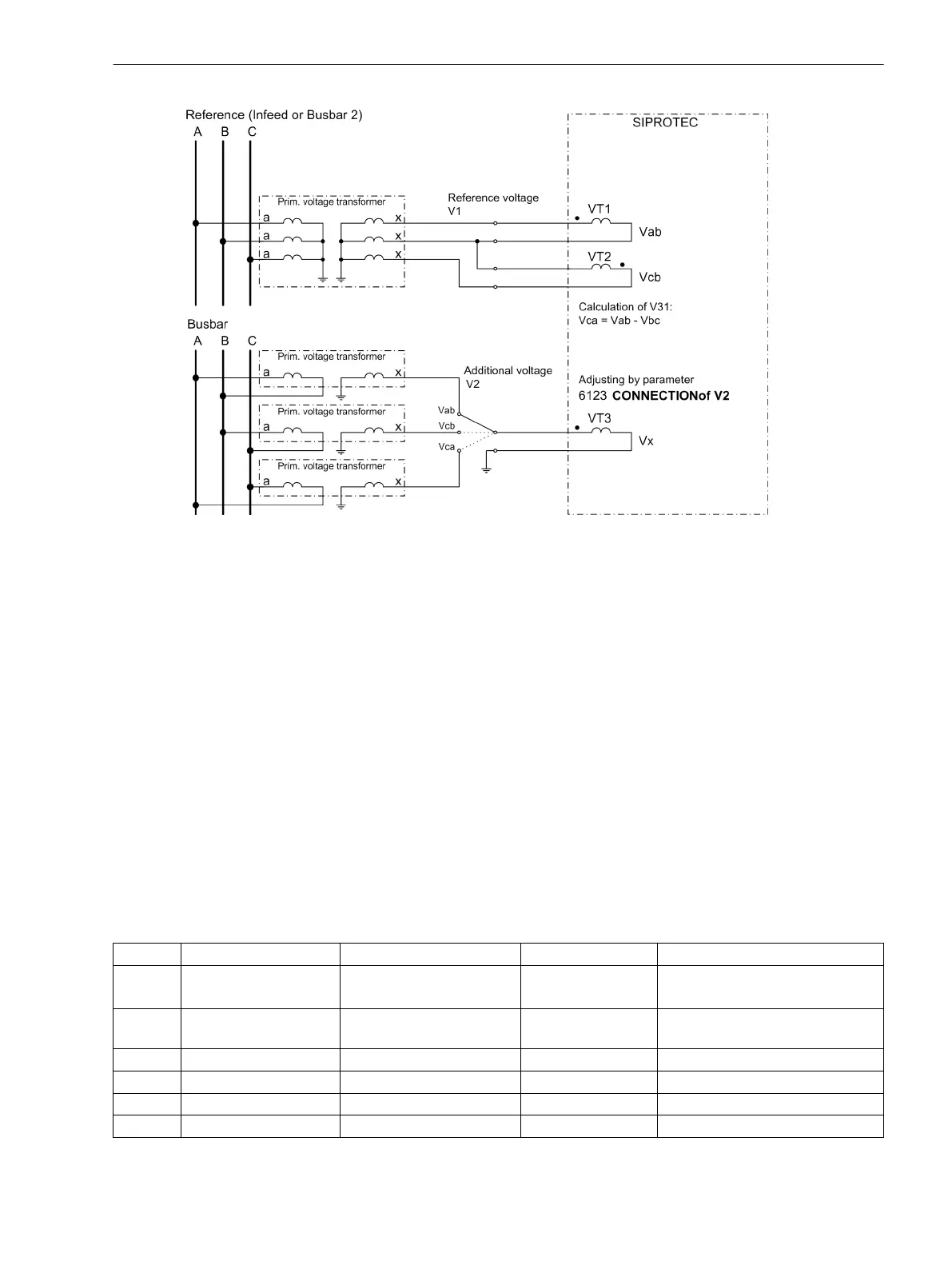

Figure 2-117
Voltage Connection Phase-to-Phase Voltage, Example
Voltage Difference
The parameters 6150 dV SYNCHK V2>V1 and 6151 dV SYNCHK V2<V1 can be set to adjust the permissible
voltage differences asymmetrically. The availability of two parameters enables an asymmetrical release to be
set.
Frequency Difference
The parameters 6152 df SYNCHK f2>f1 and 6153 df SYNCHK f2<f1 determine the permissible
frequency differences. The availability of two parameters enables an asymmetrical release to be set.
Operating Range
The parameters 6154 dα SYNCHK α2>α1 and 6155 dα SYNCHK α2<α1 delimit the operating range for
switching under synchronous system conditions. The availability of two parameters enables an asymmetrical
release range to be set.
Settings
Addresses which have an appended “A” can only be changed with DIGSI, under “Additional Settings”.
Addr.
Parameter Setting Options Default Setting Comments
6101 Synchronizing ON
OFF
OFF Synchronizing Function
6102 SyncCB (Setting options depend on
the configuration)
none Synchronizable circuit breaker
6103 Vmin 20 .. 125 V 90 V Minimum voltage limit: Vmin
6104 Vmax 20 .. 140 V 110 V Maximum voltage limit: Vmax
6105 V< 1 .. 60 V 5 V Threshold V1, V2 without voltage
6106 V> 20 .. 140 V 80 V Threshold V1, V2 with voltage
2.20.7
Functions
2.20 Synchrocheck
SIPROTEC Compact, 7SC80, Manual 345
E50417-G1140-C486-A8, Edition 07.2017
